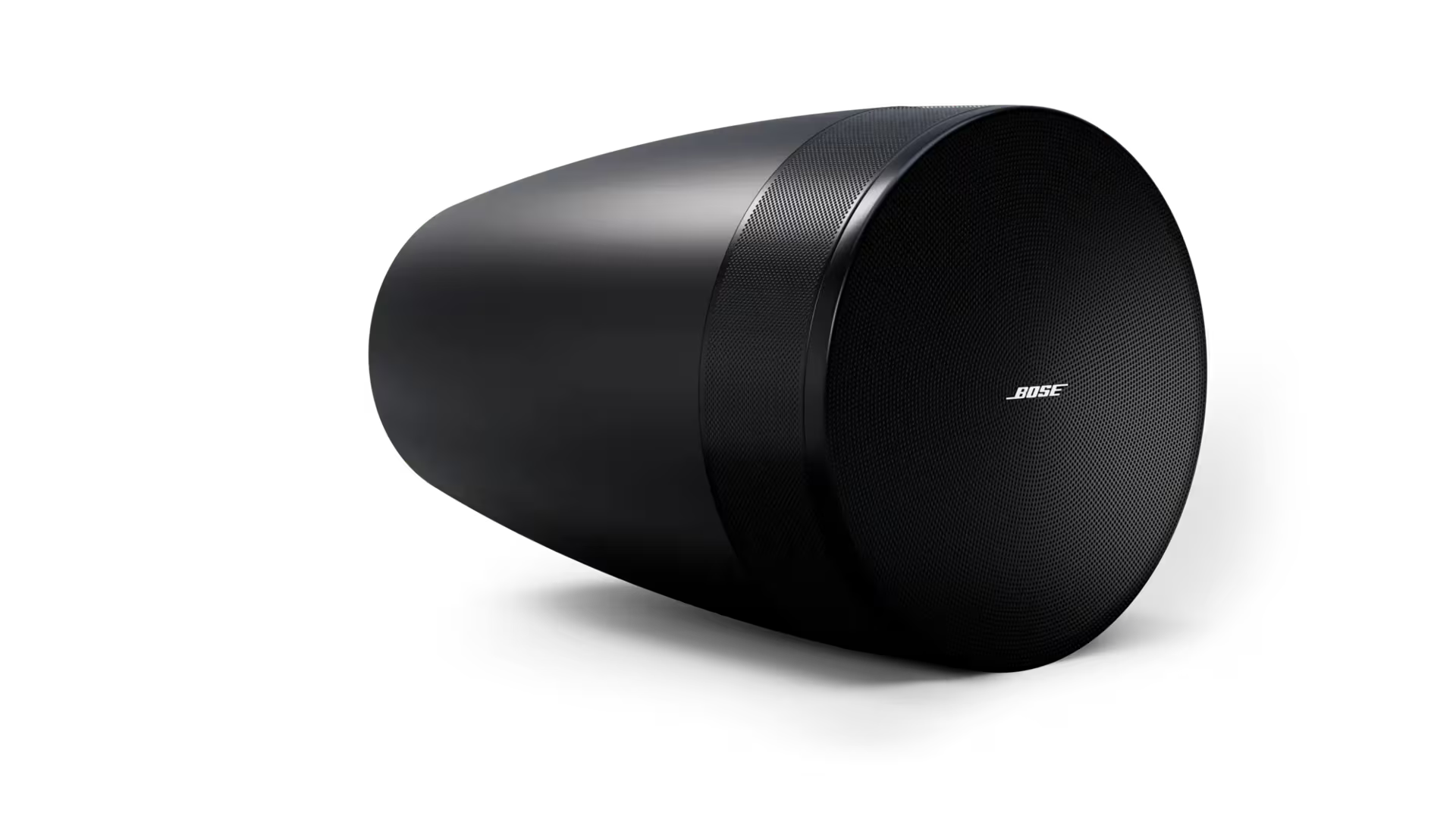

DesignMax Luna DML88P loudspeaker
DML88P | DesignMax
Overview
The DesignMax Luna pendant loudspeaker offers full-range performance from a sleek, modern design—making it easy to get great sound in open-ceiling spaces. The proprietary Ring Array™ configuration combines eight 2-inch mid-high drivers with an integrated 8-inch woofer, delivering clear, balanced sound down to 40 Hz. With 111 dB max SPL and consistent 140° coverage, Luna reduces the number of speakers needed while preserving clarity, aesthetics, and design flexibility. Single- or two-point suspension allows for fast installs and perfectly balanced hangs—even in challenging ceiling conditions—while concealed wiring keeps everything looking clean. Luna marks a giant leap forward in pendant loudspeakers, raising the bar for what’s sonically possible in retail stores, restaurants, fitness studios, and other design-conscious spaces.
Key Features
Proprietary Ring Array™ configuration delivers precise, balanced sound with no hot spots or dead zones
Integrated 8” woofer extends down to 40 Hz—no subs needed
Wide-throw 140° coverage reduces speaker count and installation costs
Flexible mounting lets you use a single cable—or two-point suspension—for fast installs and perfectly balanced hangs
Streamlined design with concealed wiring and premium finish options
Factory-optimized loudspeaker presets when combined with Bose Professional amplifiers and processors
Compatible accessories include DesignMax Pendant Threaded Rod Adapter and Conduit Adapter
Specifications
-
Designed for a wide range of applications, including:
Retail stores
Restaurants and breweries
Fitness clubs and studios
Amusement and recreation spaces
Education and gymnasiums
-
Safety Agency Ratings
UL Listed, UL 1480A, NFPA 70 & NFPA 90A, CE-compliant
-
Colors: Black (similar to RAL 9005), White (similar to RAL 9003), Paintable
Enclosure Material: Engineered plastics
Environmental: Indoors only; UL Listed, UL 1480A, NFPA 70 & NFPA 90A, CE-compliant
Grille: Perforated steel, powder-coated finish, paintable
Logo: Rotatable, removable
Suspension / Mounting: (1) 3-hole suspension cable attachment point
Product Dimensions (H × W × D): 308 mm × 492 mm (12.1 in × 19.4 in), loudspeaker diameter × depth
Net Weight: 10.0 kg (22.0 lb)
-
Frequency Range (-10 dB): 40 Hz – 20,000 Hz
Coverage, Horizontal: 140° conical
Calculated Maximum SPL @ 1 m: 107 dB
Nominal Impedance: 8 Ω (transformer bypass)
Power Handling, Long-Term Continuous: 140 W
Power Handling, Peak: 560 W
Recommended Signal Processing: Not required, Bose Professional EQ voicing and SmartBass processing available
Sensitivity (SPL / 1 W at 1 m): 85 dB
Transformer Taps, 100V: 25 W, 50 W, 100 W, bypass
Transformer Taps, 70V: 12 W, 25 W, 50 W, 100 W, bypass
-
High-Frequency: 8 × 2.0-in (51 mm) drivers in circular array
Low-Frequency: 1 × 8-in (203 mm) driver
-
892117-0100: DESIGNMAX DML88P BLK
892117-0200: DESIGNMAX DML88P WHT
-
(1) DesignMax Luna DML88P
(1) connection panel cover
(1) adjustable suspension cable system
(4) cable ties
(1) installation guide
-
