EdgeMax EM180-LP loudspeaker
EM180-LP | EdgeMax
Overview
Surface-mount performance sound meets stealth-mode design.

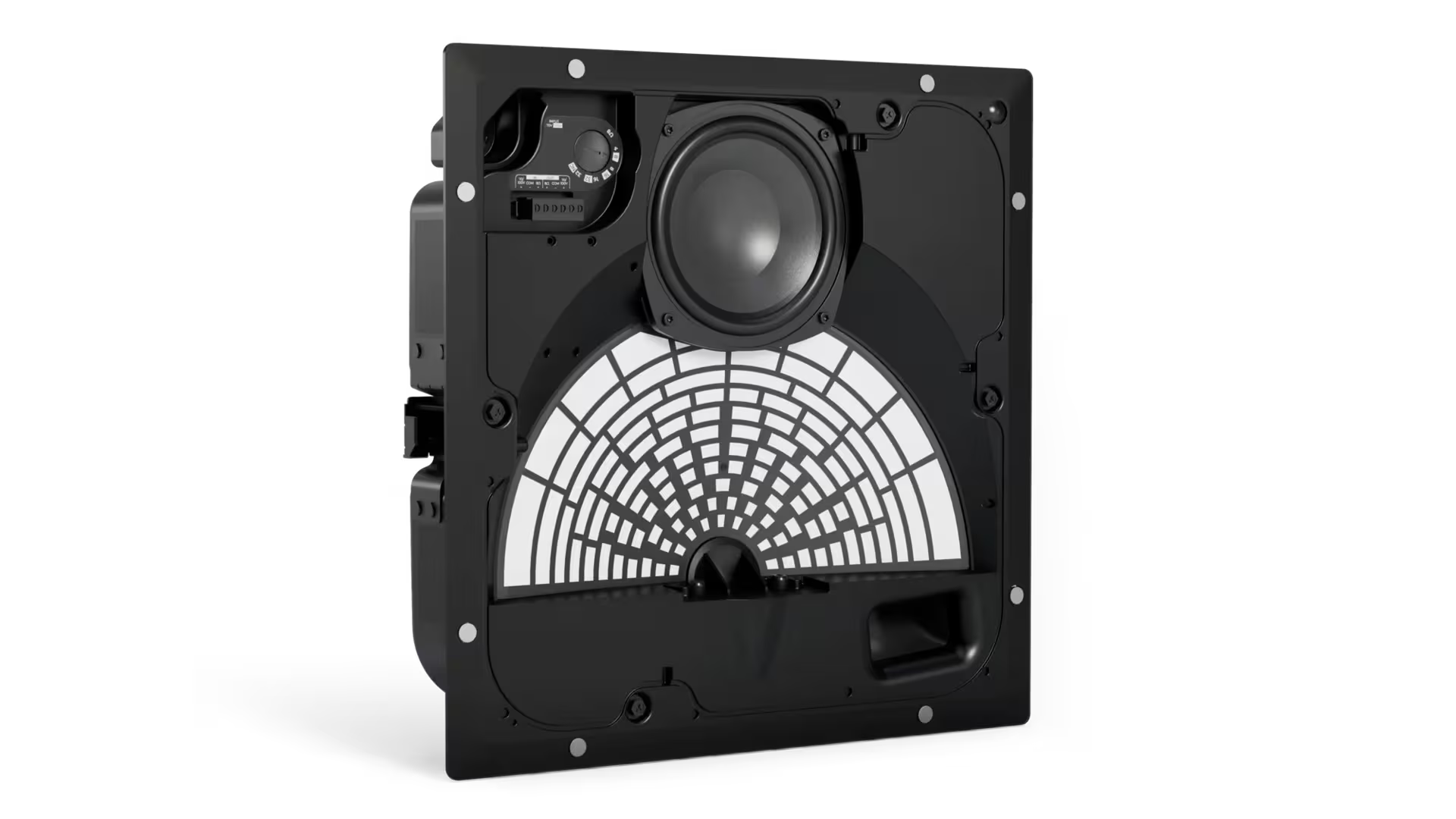

EdgeMax loudspeakers combine bold surface-mount performance with stealthy design to shatter the limitations of traditional in-ceiling loudspeakers. Patented PhaseGuide® technology enables EdgeMax loudspeakers to project powerful, focused sound asymmetrically from the room’s edges to the center. New EdgeMax LP models feature an 80-degree vertical coverage angle for use in rooms with lower ceilings, and their shallow 4-inch backcan is ideal for spaces with above-ceiling limitations and tighter clearances. Larger rooms with higher SPL needs benefit from the powerful, deeper 9-inch cans and 75-degree vertical coverage of the original EdgeMax models.EdgeMax models are purpose-built to provide specific horizontal coverage. The EM180-LP’s 180-degree horizontal coverage angle makes it ideal for placement along the ceiling edge. It provides a wide and consistent sound pattern optimized for near-field applications and room-filling coverage.Integrators can “mix and match” original EdgeMax and new LP loudspeakers, particularly in challenging installations with varying space dimensions and above-ceiling obstructions.
Key Features
Patented PhaseGuide technology evenly distributes sound throughout the space to ensure all listeners enjoy the same experience regardless of their location
In-ceiling installation for minimum visual impact, with fewer units required to deliver uniform sound
High-frequency compression driver and high-excursion woofer for exceptional audio quality and power
In-ceiling mounting along room edges and corners; purpose-built for specific horizontal coverage—90 degrees for corner placement or a wider 180 degrees—ideal for near-field and wide coverage
Wall-boundary loading for greater bass response and performance
2-way passive crossover with bypassable 70/100V transformer
Consistent voicing across the EdgeMax family
QuickHold spring-loaded mounting system for easy installs
Magnetically attached grille for quick access to wiring and tap settings
Shallow 4-inch (10 cm) backcan height for rooms with above-ceiling limitations and tighter clearances
80-degree vertical coverage angle for use in rooms with lower ceilings
UL 1480A and UL 2043 safety standard compliance
Specifications
-
Designed for a wide range of applications, including:
Conference rooms, halls, atriums & cafeterias
Hospitality spaces with low ceiling clearance
Restaurants
Retail
Retrofits with unknown ceiling clearance
-
Safety Agency Ratings
UL 1480A, UL 2043
-
Colors: White (similar to RAL 9003), paintable
Enclosure Material: Engineered-plastics front baffle with integrated steel-formed enclosure
Environmental: Indoor only
Grille: Microperforated steel, powder-coated finish, paintable
Ceiling Cutout: 345 mm × 345 mm × 100 mm (13.6 in × 13.6 in × 3.9 in), length × width × mounting depth
Suspension / Mounting: (4) Quickhold spring-loaded mounting arms, (4) safety cable attachment points
Product Dimensions (H × W × D): 339 mm × 339 mm × 100 mm (13.4 in × 13.4 in × 3.9 in) enclosure / 390 mm × 390 mm × 13 mm (15.4 in × 15.4 in × 0.5 in) grille flange
Net Weight: 7.6 kg (16.7 lb), loudspeaker with grille (single)
Shipping Weight: 11.1 kg (24.5 lb)
-
Frequency Range (-10 dB): 45 Hz – 19,000 Hz
Coverage, Horizontal: 180°
Coverage, Vertical: 80°
Calculated Maximum SPL @ 1 m: 106 dB continuous, 112 dB peak
Nominal Impedance: 8 Ω (transformer bypassed)
Power Handling, Long-Term Continuous: 32 W
Power Handling, Peak: 128 W
Recommended Signal Processing: Recommended but not required
Sensitivity (SPL / 1 W at 1 m): 91 dB
Transformer Taps, 100V: 8 W, 16 W, 32 W, bypass
Transformer Taps, 70V: 4 W, 8 W, 16 W, 32 W, bypass
-
Crossover: 1 kHz, passive 2-way crossover with integrated 70/100V transformer
Driver Protection: Recommended high-pass protection 55 Hz with minimum 24-dB/octave filter
High-Frequency: 1 × compression driver, 1.3 in (33 mm) voice coil
Low-Frequency: 1 × 5.25-in (133 mm) woofer, 1.5-in (38 mm) voice coil
-
891454-0200 EDGEMAX EM180-LP IN CEILING LDSPKR WHT
