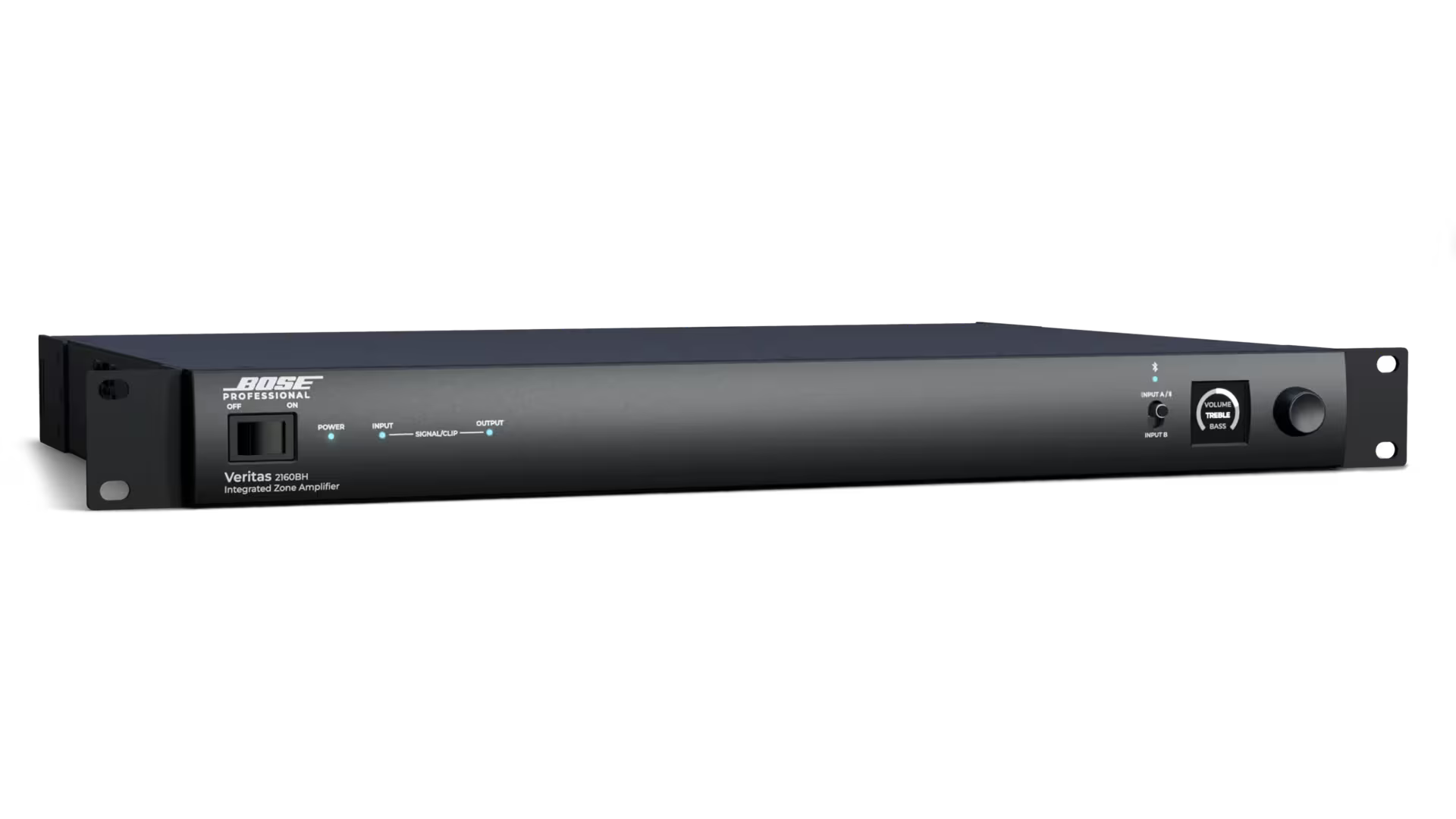

Veritas 2160BH
2160BH | Veritas
Overview
The award-winning Veritas series from Bose Professional delivers superior background/foreground music, paging and multimedia for commercial applications. Bluetooth® 5.0 wireless input and user-intuitive OLED screen with quick-start QR code simplify setup—whether you’re a pro installer or a DIYer. With four models to choose from, Veritas amplifiers offer the perfect combination of power, performance and flexibility.
The ultimate choice for large-scale 70V/100V distributed audio systems, the 2160BH efficiently powers multiple zones with premium sound clarity and reliable, consistent coverage. Ideal for hotels, conference centers, and multi-room installations, the 2160BH offers high output with advanced features for integrators handling complex, high-demand applications.
Key Features
Premium amplification with advanced DSP for optimized performance
Bluetooth connectivity and RCA connectivity—no wire splicing required
Intuitive front-panel OLED screen for easy setup and control
Embedded quick-start QR code in the OLED screen simplifies installation
Supports high-impedance (70/100V) applications
Multi-zone flexibility—support for up to two independent zones
Remote level control with Bose Professional or third-party wall controllers
Dynamic EQ adjusts bass levels to achieve a fuller sound even at low volumes
Up to 30 selectable EQ presets ensure Bose Professional signature sound performance and long-term reliability
Opti-Voice paging feature ensures clear speech intelligibility
Specifications
-
Designed for a wide range of applications, including:
Retail stores
Restaurants and bars
Hospitality venues
Conference centers
Schools
Auxiliary zones
-
Channel Separation (Crosstalk): ≤ -58 dBu below rated power, 1 kHz
Dynamic Range: 88 dB
Frequency Response: 20 Hz – 20 kHz (+0 / -3 dB) at 1 W, 1 kHz reference
Rated Power, Symmetrical: 2 × 160 W at 70/100V
THD+N: ≤ 0.5% at rated power
-
Channels: (2) loudspeaker, (1) unbalanced line
Connectors: (2) 2-pin inverted Euroblock, (1) RCA stereo pair
Nominal Output Level: 2 × 160 W at 70V / 100V (loudspeaker), 2 dBu (auxiliary)
-
Mains Connector: IEC C14 inlet
Mains Voltage: 100–240 VAC (±10%), 50/60 Hz
Protections: High temperature, output short circuit, excessively low/high AC line voltage
AC Power Consumption: 13.6 W standby, 500 W maximum
-
Controls, Front Panel: Power on/off switch, input select switch (A/Bluetooth/B), rotary encoder
Controls, Rear Panel: Amplifier mode DIP switches, input gain knobs (A, B, page), page threshold knob, mute connector, ControlCenter ports
-
A/D and D/A Converters: 48 kHz / 24-bit
Audio Latency: 10.4 ms (any input to speaker output or aux output)
Presets: 70 Hz high-pass filter, 80 Hz high-pass filter, AMU105, AMU108, DesignMax (all models), EdgeMax (all models), FreeSpace FS (all models), subwoofer
Processing Functions: Loudspeaker EQ, Opti-Voice paging, Dynamic EQ
-
Cooling System: Fan system, left-to-right airflow
Product Dimensions (H × W × D): 44 mm × 483 mm × 324 mm (1.7 in × 19.0 in × 12.8 in)
Net Weight: 4.4 kg (9.7 lb)
Shipping Weight: 5.8 kg (12.8 lb)
-
892121-1110: VERITAS 2160BH 120V US
892121-2110: VERITAS 2160BH 230V EU
892121-4110: VERITAS 2160BH 230V UK
892121-3140: VERITAS 2160BH 100V JP
892121-2140: VERITAS 2160BH 230V CN
892121-5110: VERITAS 2160BH 240V AU
-
(4) mounting feet with pins
(2) 5-pin Euroblock connectors
(1) 4-pin Euroblock connector
(3) 2-pin Euroblock connectors
(1) power cord
(1) installation guide
-
