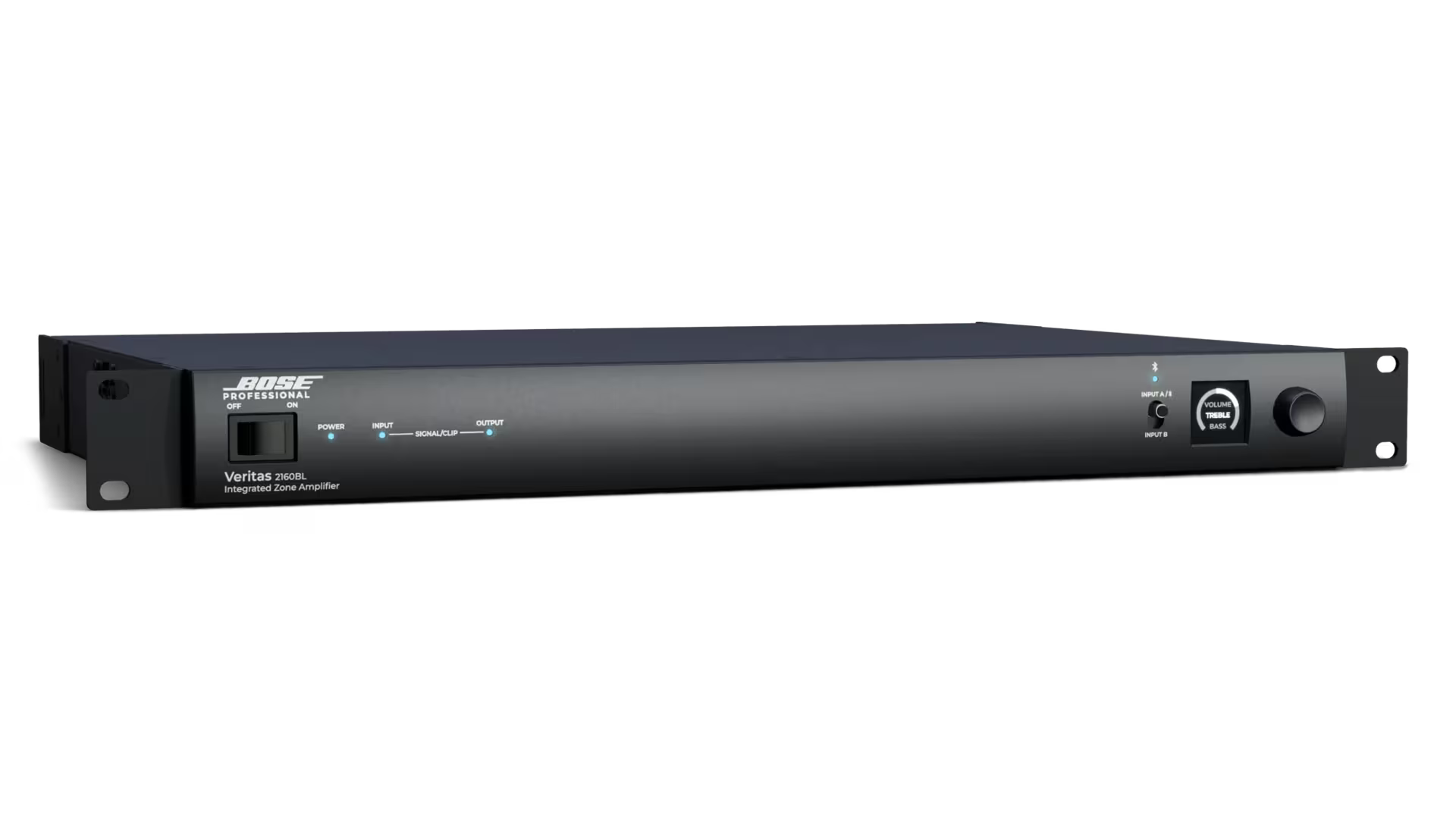

Veritas 2160BL
2160BL | Veritas
Overview
The award-winning Veritas series from Bose Professional delivers superior background/foreground music, paging and multimedia for commercial applications. Bluetooth® 5.0 wireless input and user-intuitive OLED screen with quick-start QR code simplify setup—whether you’re a pro installer or a DIYer. With four models to choose from, Veritas amplifiers offer the perfect combination of power, performance and flexibility.
For applications requiring more power in a low-impedance 4/8-ohm system, the 2160BL delivers robust sound for larger rooms, restaurants, and performance spaces. It provides high output with advanced DSP tuning, perfect for integrators needing a high-performance amplifier for dynamic commercial audio without the complexity of a 70V/100V system.
Key Features
Premium amplification with advanced DSP for optimized performance
Bluetooth connectivity and RCA connectivity—no wire splicing required
Intuitive front-panel OLED screen for easy setup and control
Embedded quick-start QR code in the OLED screen simplifies installation
Supports low-impedance (4–8Ω) applications
Remote level control with Bose Professional or third-party wall controllers
Dynamic EQ adjusts bass levels to achieve a fuller sound even at low volumes
Up to 30 selectable EQ presets ensure Bose Professional signature sound performance and long-term reliability
Opti-Voice paging feature ensures clear speech intelligibility
Specifications
-
Designed for a wide range of applications, including:
Retail stores
Restaurants and bars
Hospitality venues
Conference centers
Schools
Auxiliary zones
-
Channel Separation (Crosstalk): ≤ -58 dBu below rated power, 1 kHz
Dynamic Range: 88 dB
Frequency Response: 20 Hz – 20 kHz (+0 / -3 dB) at 1 W, 1 kHz reference
Rated Power, Symmetrical: 2 × 160 W at 4 Ω / 2 × 80 W at 8 Ω
THD+N: ≤ 0.5% at rated power
-
Adjustment Range: -20 dB to +20 dB (line), 0 dB to +50 dB (page)
Input Channels: (2) balanced line, (2) unbalanced line, (1) balanced mic/line
Connectors: (2) RCA stereo pairs, (2) 5-pin Euroblock, (1) 4-pin Euroblock
Input Impedance: 20 kΩ (line), 2 kΩ (page)
Input Range: -8 dBu to +22 dBu (line), -58 dBu to +12 dBu (page)
Maximum Input Level: 22 dBu (line), 12 dBu (page)
Nominal Input Level: 4 dBu (line), -38 dBu (page)
Sensitivity: -8 dBu (line), -58 dBV (page)
-
Channels: (2) loudspeaker, (1) unbalanced line
Connectors: (2) 2-pin inverted Euroblock, (1) RCA stereo pair
Nominal Output Level: 2 × 160 W at 4 Ω / 2 × 80 W at 8 Ω (loudspeaker), 2 dBu (auxiliary)
-
Mains Connector: IEC C14 inlet
Mains Voltage: 100–240 VAC (±10%), 50/60 Hz
Protections: High temperature, output short circuit, excessively low/high AC line voltage
AC Power Consumption: 13.6 W standby, 500 W maximum
-
Controls, Front Panel: Power on/off switch, input select switch (A/Bluetooth/B), rotary encoder
Controls, Rear Panel: Amplifier mode DIP switches, input gain knobs (A, B, page), page threshold knob, mute connector, ControlCenter ports
-
A/D and D/A Converters: 48 kHz / 24-bit
Audio Latency: 10.4 ms (any input to speaker output or aux output)
Presets: Flat, 80 Hz high-pass filter, AMU105, AMU108, DesignMax (all models), EdgeMax (all models), FreeSpace FS (all models), subwoofer
Processing Functions: Loudspeaker EQ, Opti-Voice paging, Dynamic EQ
-
Cooling System: Fan system, left-to-right airflow
Product Dimensions (H × W × D): 44 mm × 483 mm × 324 mm (1.7 in × 19.0 in × 12.8 in)
Net Weight: 4.4 kg (9.7 lb)
Shipping Weight: 5.8 kg (12.8 lb)
-
892119-1110: VERITAS 2160BL 120V US
892119-2110: VERITAS 2160BL 230V EU
892119-4110: VERITAS 2160BL 230V UK
892119-3140: VERITAS 2160BL 100V JP
892119-2140: VERITAS 2160BL 230V CN
892119-5110: VERITAS 2160BL 240V AU
-
(4) mounting feet with pins
(2) 5-pin Euroblock connectors
(1) 4-pin Euroblock connector
(3) 2-pin Euroblock connectors
(1) power cord
(1) installation guide
-
