Sub-surface

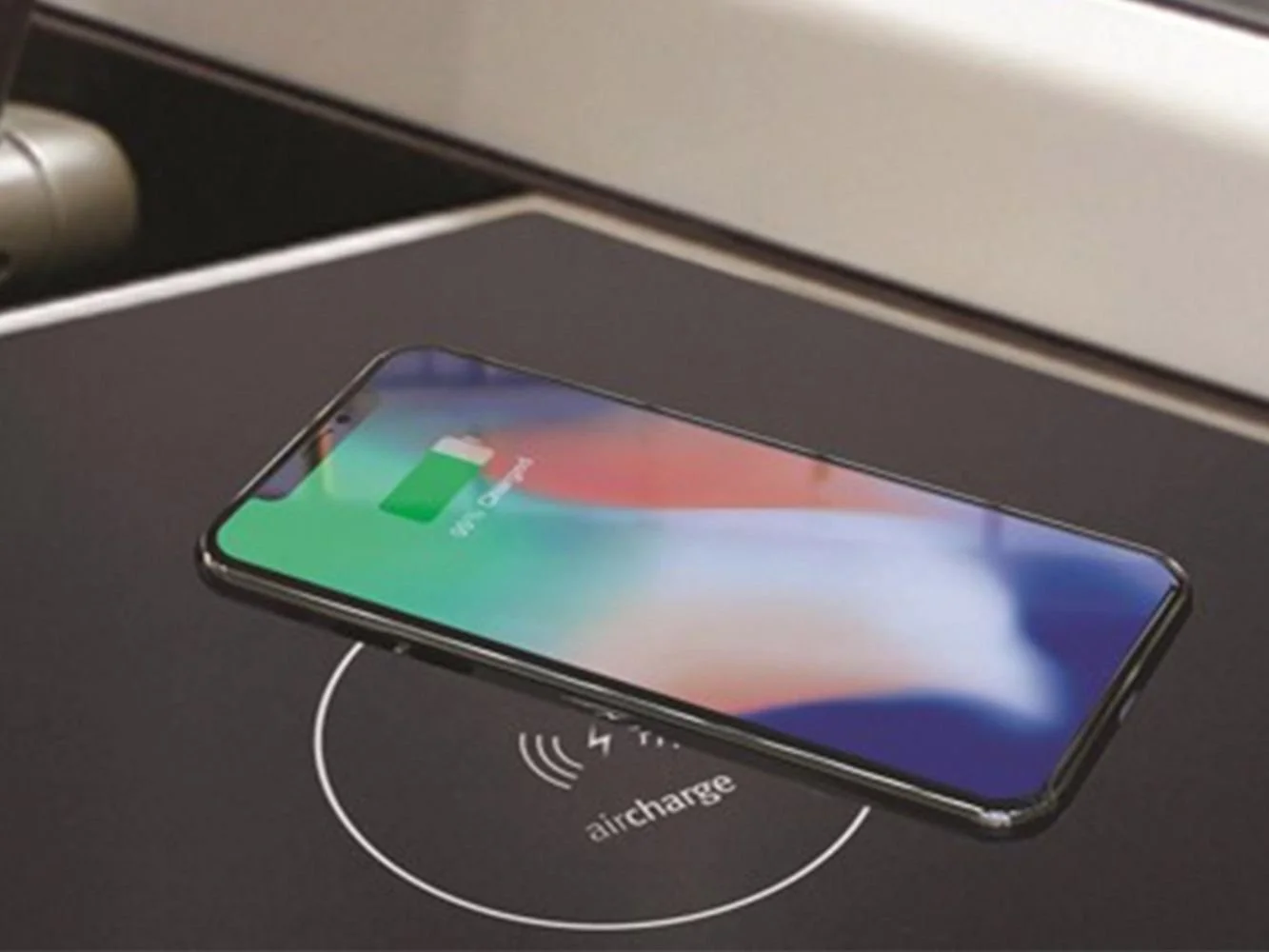

Installed from the underside of a desk or table, the Aircharge Wireless Sub-Surface Charger becomes an integral part of the furniture, maintaining the look & feel of the surface completely intact.
Logo etching guidelines for optimal device positioning must be followed.
Available with data connectivity for system monitoring, analytics & over-the-air updates.
-
Fits any desk thicknesses – a 68mm ⌀ housing will be drilled from the underside of the table leaving maximum 3mm for optimal efficiency
Qi-Certified - supports all Qi compatible devices and Aircharge accessories
Safety protections - Foreign Object Detection, Overcharge protection, Temperature Sensor Control
Can be secured to underside of work surface using steel plate and screws provided
USB power cable allows multiple units to be connected to a hub (supplied separately)
Data connectivity supported
Please note: As device cases vary in thicknesses we recommend a depth of 3mm maximum
-
Input: QC 3.0 Minimum (plug must be this specification)
Power cable: 2m USB
Frequency: 100-200kHz
Certification: Qi-Certified
