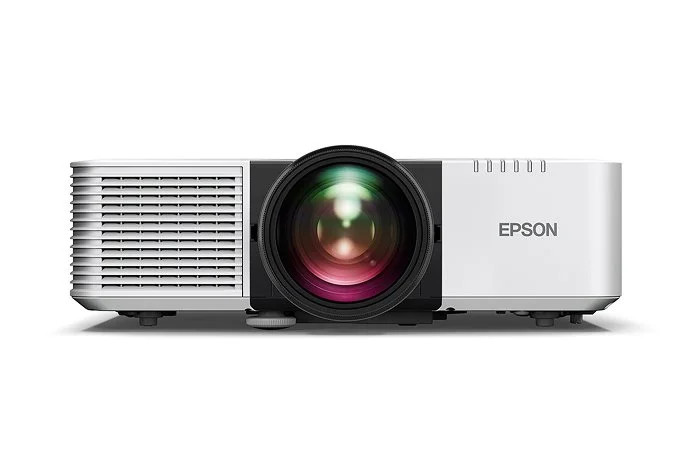

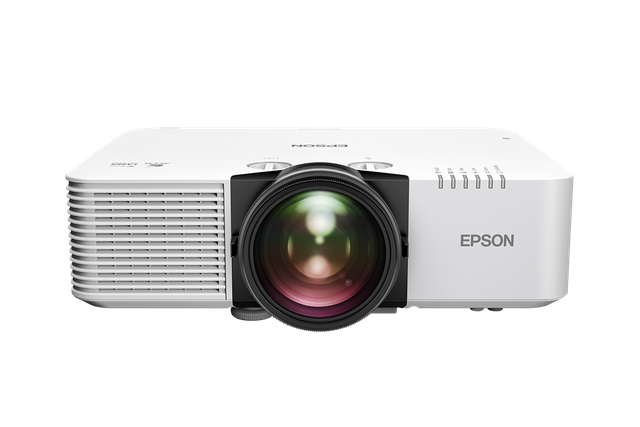

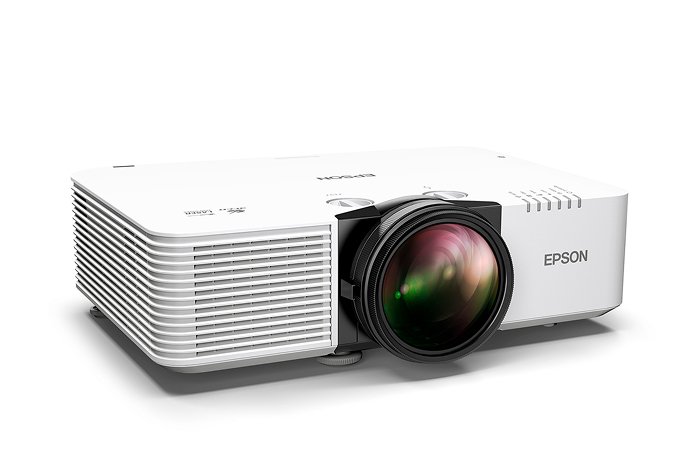

Epson EB-L690E WUXGA 3LCD Laser Projector with 4K Enhancement2

Experience an incredibly bright and compact projector with pro-level features.

Request a call back
  • CO-W01 Projector
  • Epson EB-725Wi Projector
  • Epson EB-760W Projector
  • Epson EB-770F Projector

Key Features

The Epson EB-L690E adds pro features to the compact and versatile Epson business projector family. Featuring 6,500-lumens of color and white brightness 1, it is ideal for classrooms and lecture halls, conference rooms, hybrid workspaces and more. The EB-L690E displays double HD resolution on-screen with 4K Enhancement Technology2 for sharp, detailed images—even up close. This powerful projector produces exceptionally vibrant, high-resolution images up to 500'' in 16:10, plus is capable of projecting in a variety of other aspect ratios, including ultra wide 16:6 and 21:9.

Designed with convenience in mind, the EB-L690E features an up to 30,000-hour virtually maintenance-free laser light source 3 and air filter in Extended Mode. And for simple, seamless installation, this versatile solution offers a variety of powerful features, such as optical zoom, wide lens shift, geometric correction tools and more. With built-in wireless communication, you can monitor and control your fleet remotely from a web browser using the Epson Projector Management Connected app, as well as enable advanced screen casting tools like Epson iProjection and Miracast. In addition, simplify complex multi-projector applications with the optional attachable ELPEC01 camera.

  • 6,500 lumens color/white brightness 1

  • WUXGA with 4K Enhancement2 for clear, detailed images

  • Display up to 500" diagonal in 16:10, plus ultra wide 16:6 and 21:9

  • Lightweight, compact design allows for easy installation

  • Up to 30,000-hour laser light source3 and air filter

  • AirPlay 2 supported

Technical Specifications

  • Projection Lens:

    Zoom Ratio: 1-1.6 (Manual)

    Screen Size: 80" diagonal 2.33m - 3.78m

    Zoom: Zoom: Wide: 50” – 500” [1.44 – 14.76 m]
    Zoom: Tele: 50” – 500” [2.35 - 23.84m]

    Throw Ratio Range: 1.35-2.20

  • Supported Connection Mode: Infrastructure, Access Point

  • Point Correction: 360º Free

  • Operating Altitude: Over 1,500m/4,921ft with High Altitude Mode: 0 - 3,048m (0 -10,000ft)

  • Type: Electrostatic Filter

    Maintenance Cycle*2: 20,000 hours (Normal) / 30,000 hours (Extended)

  • Size - projected distance:

    254cm (100”) diagonal (wide: 9.3’ – tele: 19.8’)

    Contrast Ratio: Over 50,00,000:

    Projection Method: Front / rear / ceiling mount

    Projection System: 3LCD Reflective, 3-chip technology Poly-silicon TFT active matrix

    Projected Output: WUXGA
    Sound Output:
    10 W Monaural

    Aspect Ratio: Native 16:10

    Driving Method: Epson Poly-silicon TFT active matrix, 0.74-inch wide panel Reflective HTPS

    Native Resolution: 1920 X 1200 with 4KE

    Laser Type: Laser Diode 41.9 mW (Output)

    Light Source Life: Up to 20,000 hours (ECO Mode)*2

  • RS-232C:

    RS-232C: 1 (D-Sub 9pin)

  • Direct Power On / Off: Yes
    Power Supply Voltage: 100 - 240 V AC ±10%, 50/60 Hz
    Power Consumption (220-240V area): LD On (Normal / Extended): 399W / 295W Standby (Normal / Eco): 2.4 W / 0.4 W

  • White Light Output (Normal / Eco):

    6,500 lm / 4,550 lm*1

    Colour Light Output:

    6,500 lm*

    Contrast Ratio: Over 50,00.000 : 1Colour Mode: Dynamic, Presentation, Cinema,BT.709 Natural, DICOM, SIM Multi-PJ

    Light Output (Center): 7100*3

  • Vertical (Up/Down): 20% to +20%

    Horizontal (Left/Right): 50% to +50%

  • Laser / Lamp, Projectors Facets: Laser diode

    Resolution, Projectors Facets:

    WUXGA – 1920 X 1200 ( 16:10 Aspect Ratio)

    Throw Ratio: 1.35-2.20

    Brightness Range Lumens,

    Projectors Facets: 6500

  • Standard Connectivity: USB: USB Type A: 2 (Port 1: For PC Free, Document Camera, Firmware Update, Copy OSD Settings,Content Playback, ELPEC01 or 5V/2A Power Supply; Port 2: For PC Free, Document Camera, Firmware Update, Copy OSD Settings, Content Playback,ELPEC01 or 5V/0.9A Power Supply USB Type B: 1 (For Firmware Update, Copy OSD Settings)
    Network:
    Wired LAN: RJ45 x 1 (100Mbps) Wireless LAN: Built-in
    Digital Input: HDMI : 2 (HDCP 2.3); HDBaseT: 1 (HDCP 2.3)
    Digital Output: HDMI Out: 1 (HDCP2.3, supports only HDMI1 input)

  • Open (D x W x H): 440 x 304 x 122 mm

    Weight:Approx. 8.2kg

  • Supported Speed for Each Mode :IEEE 802.11a/b/g/n/ac/ax

    Supported Connection Mode: Mode: Infrastructure, Simple AP (Wi-Fi Direct)
