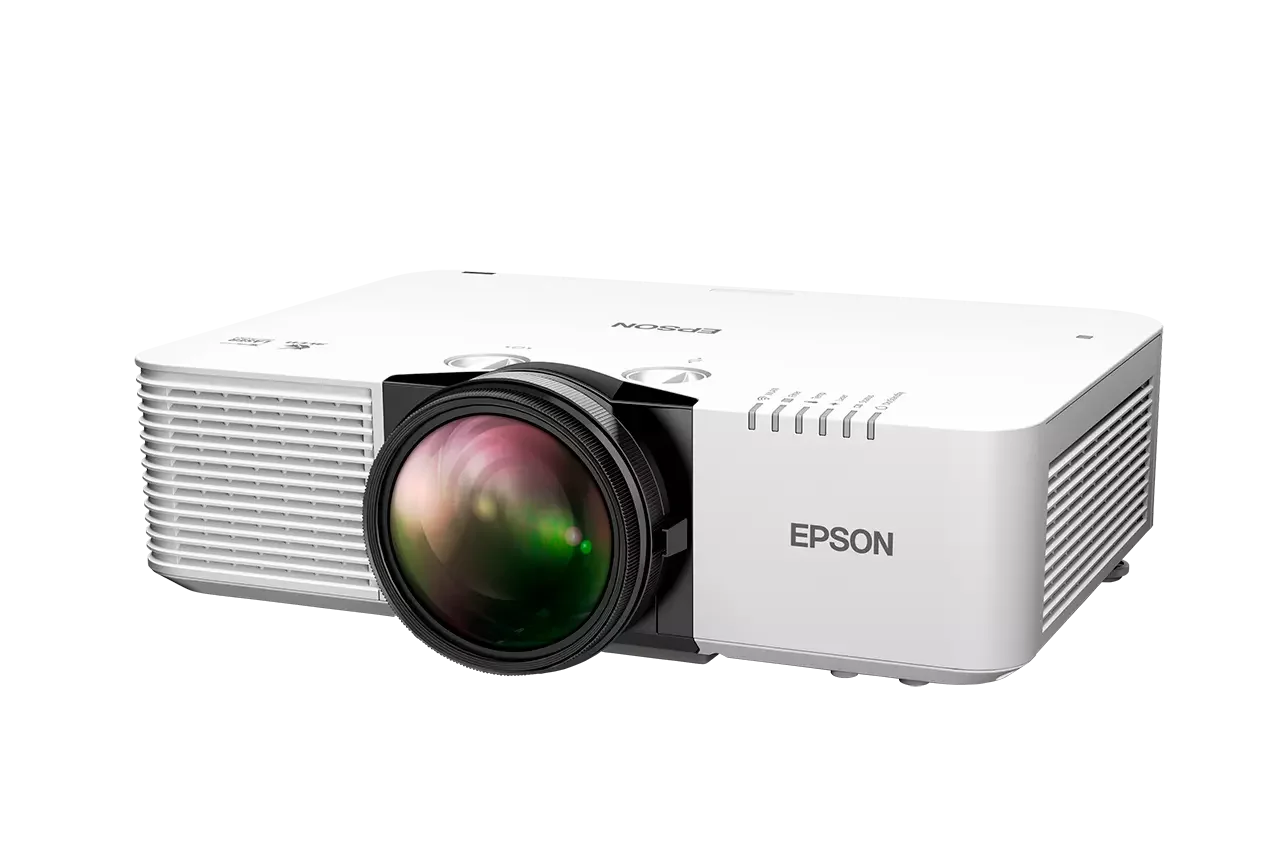

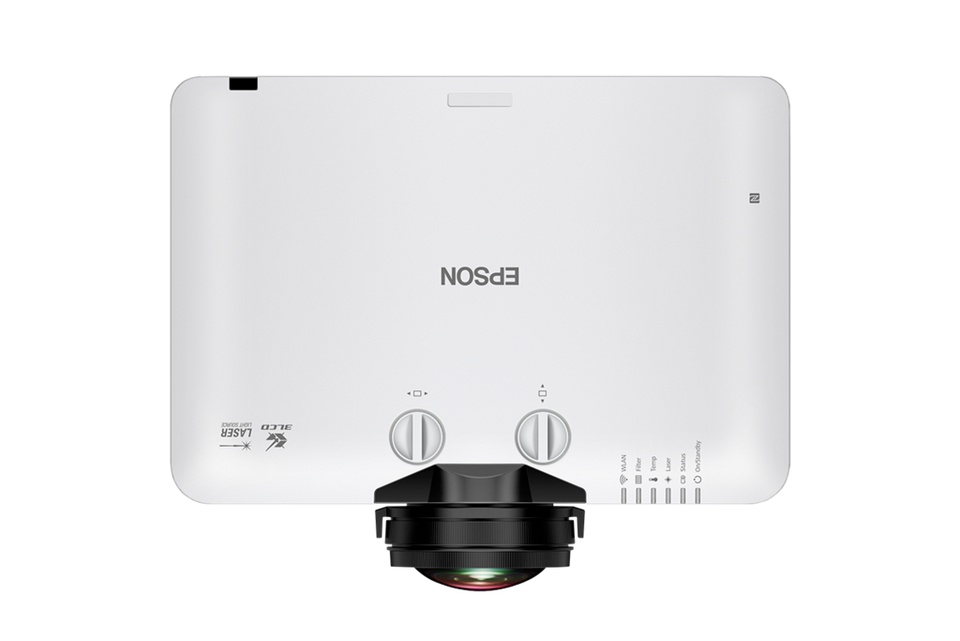

EB-L690SE - 6,000 lumens, 4KE short throw projector

Inspiring 4KE short-throw professional projector for immersive spaces

Request a call back
  • CO-W01 Projector

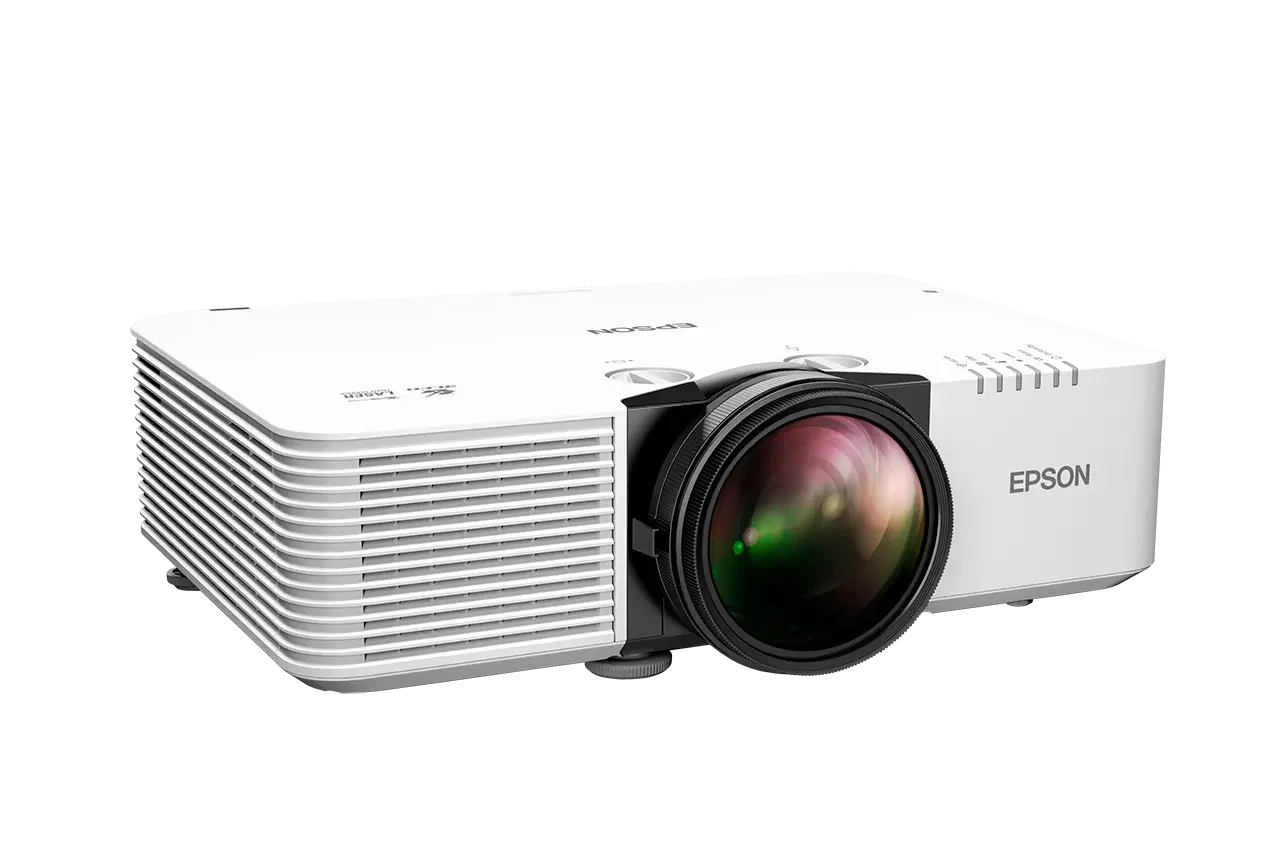

  • Epson EB-725Wi Projector

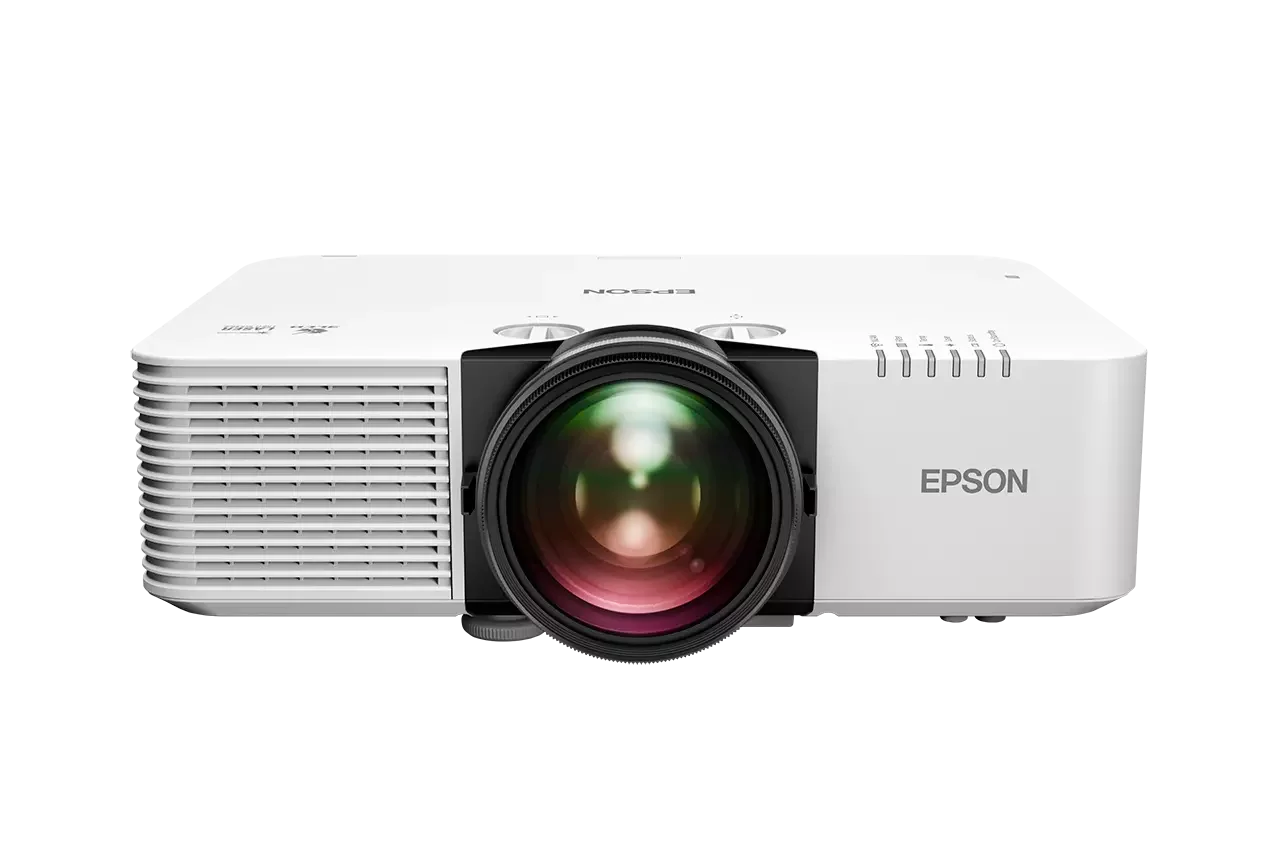

  • Epson EB-760W Projector

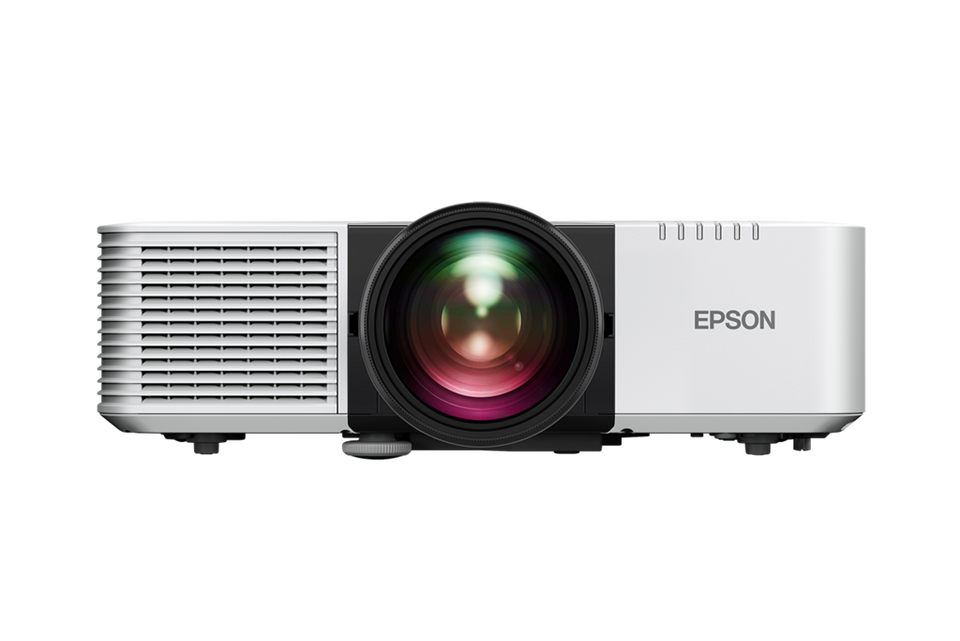

  • Epson EB-770F Projector

Key Features

  • 6,000 lumens brightness with 4K Enhancement technology at 60Hz Delivering sharp, bright images with up to 4.6 million pixels, this budget-friendly laser projector is perfect for large displays in professional spaces.

  • Compact short-throw design for immersive display Project scalable images up to 500" with a short throw ratio of 0.5–0.7:1 and 1.4x zoom, creating immersive, shadow- and glare-free visuals in compact spaces.

  • Quiet operation Delivers high-performance display at a low noise level of 36dB or 26dB in Eco mode, ensuring a quiet and focused environment for immersive visual experiences.

  • Effortless, flexible installation A fixed centre lens with manual lens shift and advanced features like corner focus adjustment ensures easy setup and adaptability for any environment.

  • Advanced installation tools Includes a range of free software tools and an optional external camera module for enhanced setup flexibility.

  • Making sustainable choices with Epson Made from 19% recycled plastics, low power consumption, reduced packaging and a usage life of up to 30,000 hours in Eco mode (20,000 hours normal).

Tech Specs

The product features and specifications are subject to change without prior notice

  • Projection System

    3LCD Technology, RGB liquid crystal shutter

    LCD Panel

    0,67 inch with C2 Fine

  • Color Light Output

    6.000 Lumen- 4.200 Lumen (economy) In accordance with IDMS15.4

    White Light Output

    6.000 Lumen - 4.200 Lumen (economy) In accordance with ISO 21118:2020

    Resolution

    WUXGA

    Resolution Enhancement

    4K enhancement

    Aspect Ratio

    16:10

    Contrast Ratio

    Over 5.000.000 : 1

    Light source

    Laser

    Laser Light source

    20.000 hours Durability High, 30.000 hours Durability Eco

    Keystone Correction

    Manual vertical: ±30 °, Manual horizontal ±30 °

    Colour Video Processing

    10 Bits

    Colour Reproduction

    Upto 1.07 billion colours

  • Throw Ratio

    0,50 - 0,70:1

    Zoom

    Manual, Factor:1 - 1,4

    Lens

    Optical

    Lens Shift

    Manual - Vertical ±50 %, horizontal ±20 %

    Screen Size

    100 inches - 500 inches

    Projection Distance Wide

    1,1 m - 5,6 m

    Projection Distance Tele

    1,5 m - 7,8 m

    Projection Distance Wide/Tele

    1,09 m - 7,84 m

    Projection Lens F Number

    1,8 - 2

    Projection Lens Focal Length

    7,54 mm - 10,55 mm

    Projection Lens Focus

    Manual

  • Interfaces

    USB 2.0-A (2x), USB 2.0 Type B (Service Only), RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN IEEE 802.11a/b/g/n (optional), HDMI out, HDBaseT, Jack plug out, HDMI (HDCP 2.3) (2x), Near Field Communication (NFC)

    Network Protocol

    HTTPS, SNMP, ESC/VP.net, PJLink

  • Security

    Kensington lock, Control panel lock, Padlock, Security cable hole, Wireless LAN unit lock, Password protection

    2D Colour Modes

    Dynamic, Natural, Cinema, Presentation, DICOM SIM

    Other features

    21:9 aspect ratio support, 4K enhancement, A/V mute, Auto Power On, Customizable user logo, Direct Power on/off, Document Camera Compatible, Edge Blending, Home Screen, JPEG Viewer, Network projection, OSD copy function, PC Free, Point correction, Quick Corner, Schedule Function, Split-Screen-Function, Ultra-wide display (16:6), Web Control, Web Remote, iProjection App

    Video Color Modes

    Cinema, Dynamic, Natural, Presentation, DICOM SIM, Multi Projection, BT709

    Projector control

    via: Crestron Integrated Partner, Extron XTP, AMX Device Discovery

  • Power consumption

    362 Watt (Normal On-Mode), 250 Watt (Eco On-Mode), 415 Watt (Normal Peak-mode), 303 Watt (Eco Peak-Mode), 0,4 Watt (Energy saving standby)

    Supply Voltage

    AC 100 V - 240 V, 50 Hz - 60 Hz

    Product dimensions

    440‎ x 368 x 151 mm (Width x Depth x Height)

    Product weight

    9,3 kg

    Noise Level

    Normal:36 dB (A) - Economy:26 dB (A)

    Supported Temperature

    Storage -10° C - 60° C

    Supported Humidity

    Operation 20% - 80%, Storage 10% - 90%

    Options

    Air filter, Camera module, Ceiling mount, Document camera, External Speaker, HDBaseT Transmitter, Safety wire set, Suspension adapter, Wireless LAN unit

    Room Type / Application

    Large Meeting Room/Boardroom, Gaming, Auditorium, Meeting room / Classroom, Projection Mapping, Rental / Staging, Signage / Retail, Sports, Visitor Attraction

    Positioning

    Ceiling Mounted, Desktop

    Colour

    White

  • Warranty

    36 months Carry in
