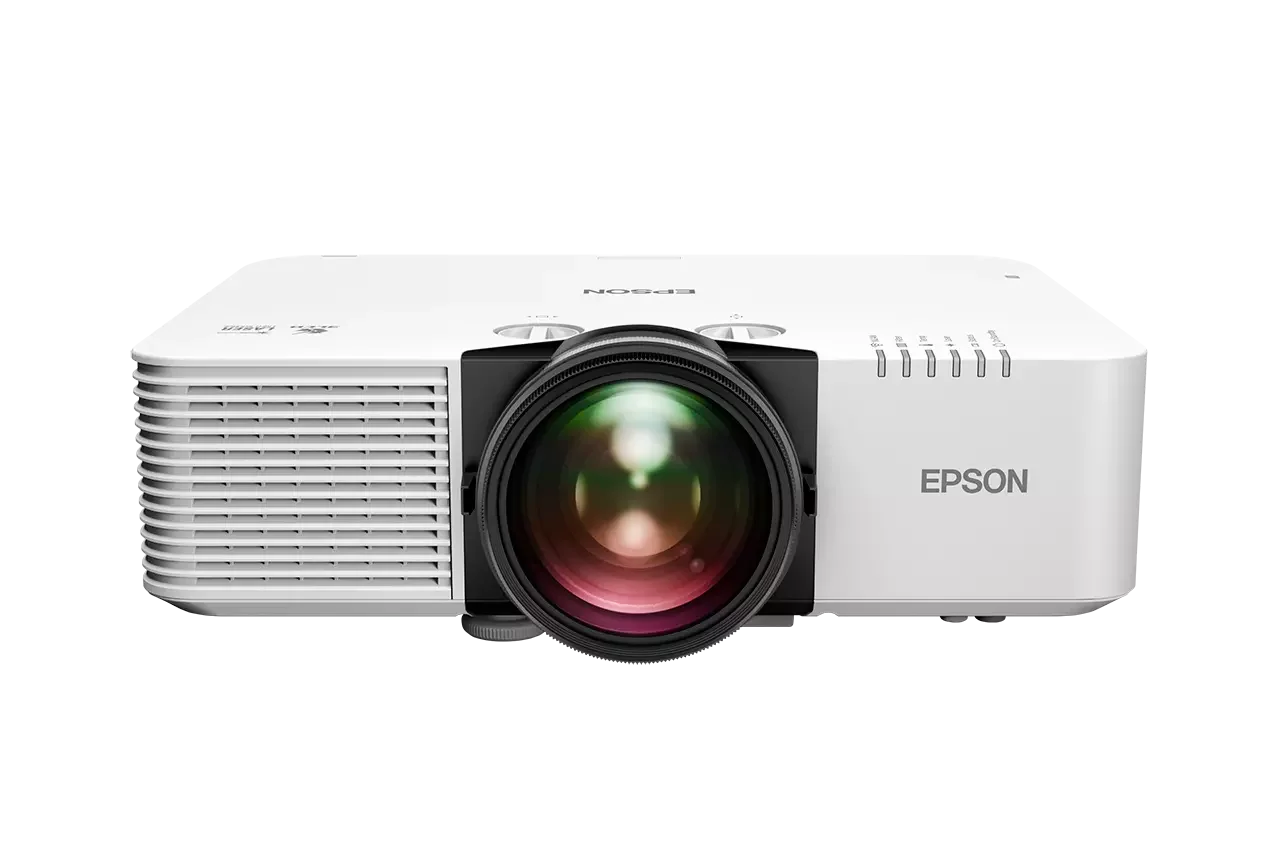

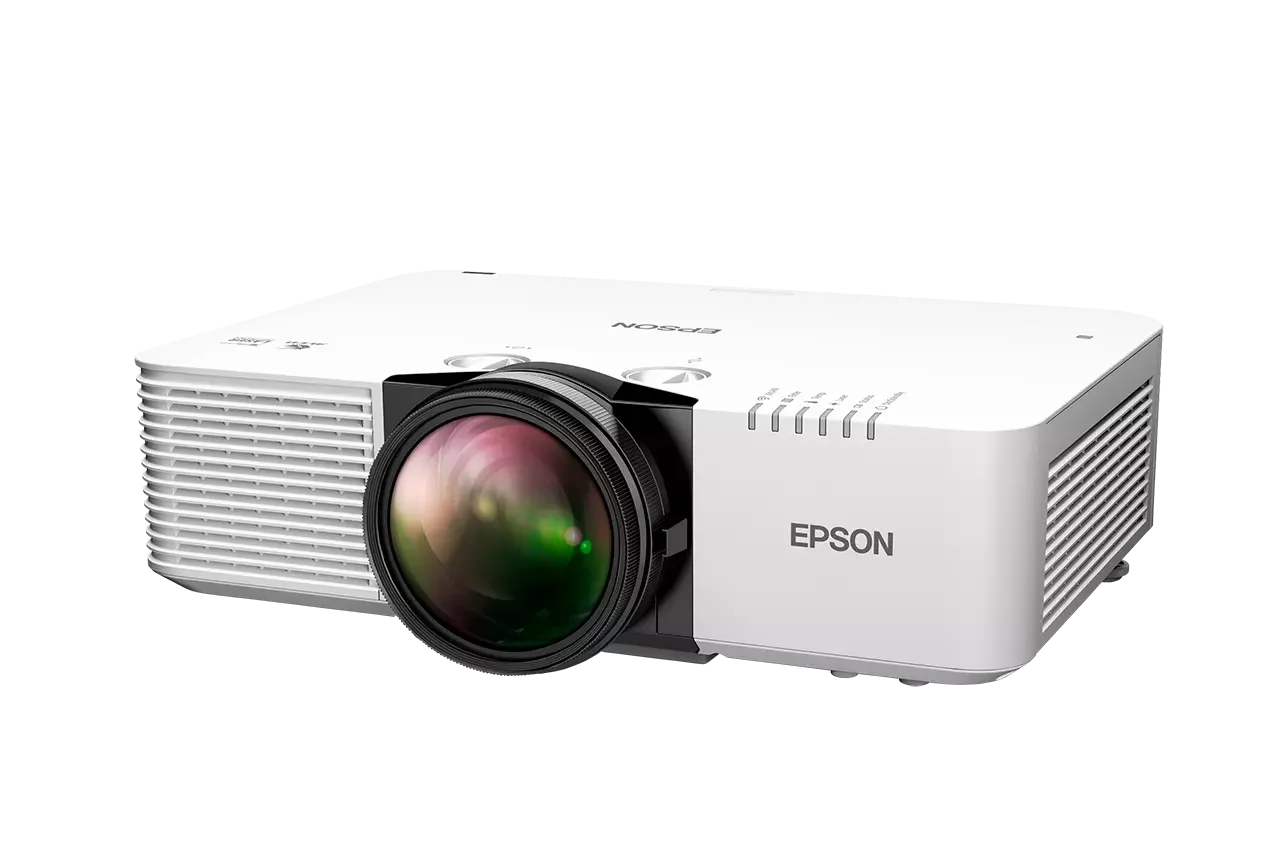

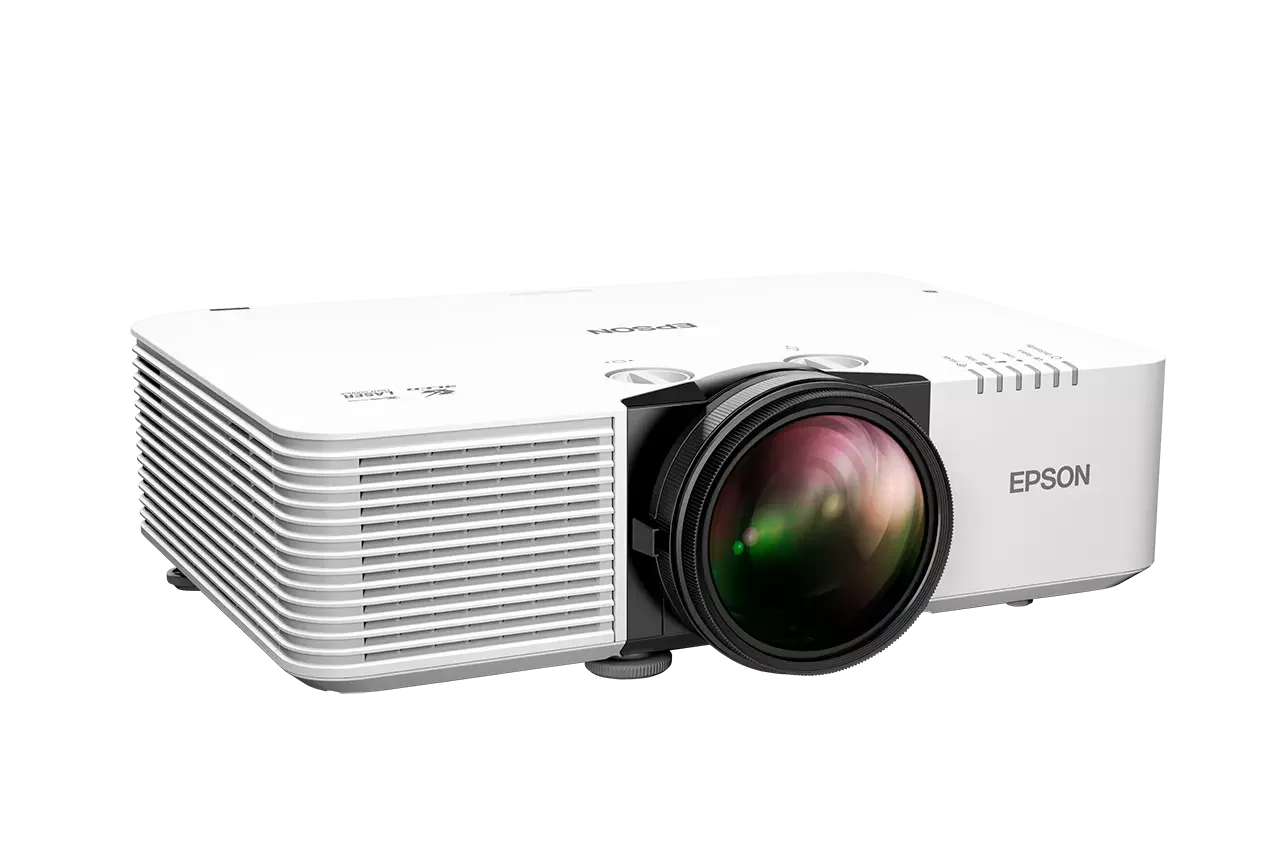

EB-L690SU - 6,200 lumens, WUXGA short throw projector
Outstanding short-throw professional projector for immersive spaces
Key Features
Exceptional 6,200 lumens short throw projector Ideal for a wide range of immersive visual spaces. This compact, budget-friendly laser projector delivers high-quality performance in any setting.
Perfect for immersive spaces and simulation applications Project scalable images up to 400", creating immersive, shadow- and glare-free visuals in compact spaces with a short throw ratio of 0.79–1.36:1 and 1.7x zoom.
Effortless, flexible installation A fixed centre lens with manual lens shift and advanced features like corner focus adjustment ensures easy setup and adaptability for any environment.
Quiet operation Delivers high-performance projector at a low noise level of 25dB in Eco mode, ensuring a quiet and focused environment for immersive visual experiences.
Instant connectivity with Apple AirPlay 2 and Miracast1 Seamlessly share content from laptops, tablets, and smartphones - perfect for BYOD setups and collaborative environments.
Making sustainable choices with Epson Made from 19% recycled plastics, low power consumption, reduced packaging and a usage life of up to 30,000 hours in Eco mode (20,000 hours normal).
Tech Specs
The product features and specifications are subject to change without prior notice
-
Projection System
3LCD Technology, RGB liquid crystal shutter
LCD Panel
0,67 inch with C2 Fine
-
Color Light Output
6.200 Lumen- 4.340 Lumen (economy) In accordance with IDMS15.4
White Light Output
6.200 Lumen - 4.340 Lumen (economy) In accordance with ISO 21118:2020
Resolution
WUXGA
Aspect Ratio
16:10
Contrast Ratio
Over 5.000.000 : 1
Light source
Laser
Laser Light source
20.000 hours Durability High, 30.000 hours Durability Eco
Keystone Correction
Manual vertical: ±30 °, Manual horizontal ±30 °
Colour Video Processing
10 Bits
Colour Reproduction
Upto 1.07 billion colours
-
Throw Ratio
0,79 - 1,36:1
Zoom
Manual, Factor:1 - 1,7
Lens
Optical
Lens Shift
Manual - Vertical ±50 %, horizontal ±20 %
Screen Size
60 inches - 400 inches
Projection Distance Wide
1 m - 7 m
Projection Distance Tele
1,8 m - 11,9 m
Projection Distance Wide/Tele
1,02 m - 11,89 m
Projection Lens F Number
1,7 - 2,1
Projection Lens Focal Length
11,6 mm - 19,9 mm
Projection Lens Focus
Manual
-
Interfaces
USB 2.0-A (2x), USB 2.0 Type B (Service Only), RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN IEEE 802.11a/b/g/n, HDMI out, HDBaseT, Miracast, Jack plug out, HDMI (HDCP 2.3) (2x), Near Field Communication (NFC), Apple AirPlay 2
Epson iProjection App
Ad-Hoc / Infrastructure
Network Protocol
HTTPS, SNMP, ESC/VP.net, PJLink
-
Security
Kensington lock, Control panel lock, Padlock, Security cable hole, Wireless LAN unit lock, Password protection
2D Colour Modes
Dynamic, Natural, Cinema, Presentation, DICOM SIM
Other features
21:9 aspect ratio support, A/V mute, Auto Power On, Built-in speaker, Customizable user logo, Direct Power on/off, Document Camera Compatible, Edge Blending, Home Screen, JPEG Viewer, Network projection, OSD copy function, PC Free, Point correction, Quick Corner, Schedule Function, Screen Mirroring, Split-Screen-Function, Ultra-wide display (16:6), Web Control, Web Remote, Wireless LAN capable, iProjection App
Video Color Modes
Cinema, Dynamic, Natural, Presentation, DICOM SIM, Multi Projection, BT709
Projector control
via: Crestron Integrated Partner, Extron XTP, AMX Device Discovery
-
Power consumption
336 Watt (Normal On-Mode), 233 Watt (Eco On-Mode), 399 Watt (Normal Peak-mode), 295 Watt (Eco Peak-Mode), 0,4 Watt (Energy saving standby)
Supply Voltage
AC 100 V - 240 V, 50 Hz - 60 Hz
Product dimensions
440 x 362 x 151 mm (Width x Depth x Height)
Product weight
8,9 kg
Noise Level
Normal:34 dB (A) - Economy:25 dB (A)
Supported Temperature
Storage -10° C - 60° C
Supported Humidity
Operation 20% - 80%, Storage 10% - 90%
Options
Air filter, Camera module, Ceiling mount, Document camera, External Speaker, HDBaseT Transmitter, Safety wire set, Suspension adapter, WP System - ELPWP20
Loudspeaker
10 Watt
Room Type / Application
Large Meeting Room/Boardroom, Gaming, Auditorium, Meeting room / Classroom, Projection Mapping, Rental / Staging, Signage / Retail, Sports, Visitor Attraction
Positioning
Ceiling Mounted, Desktop
Colour
White
-
Warranty
36 months Carry in
-
-
