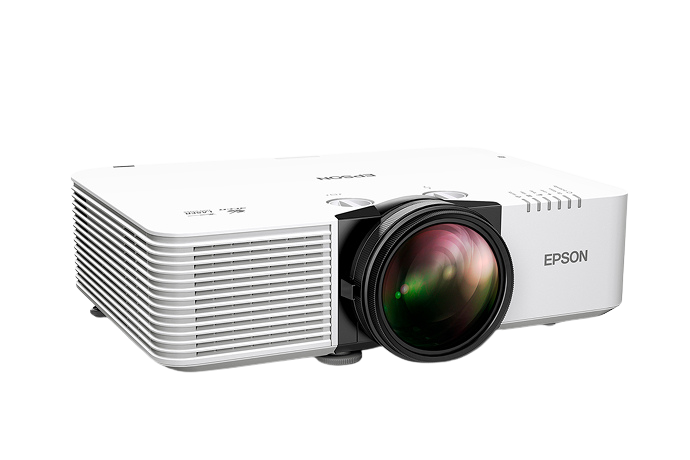

Epson EB-L790SE WUXGA 3LCD Laser Projector with 4K Enhancement2

The exceptionally bright short throw laser display with a 0.79 – 1.36 throw ratio and 4K Enhancement2.

Request a call back

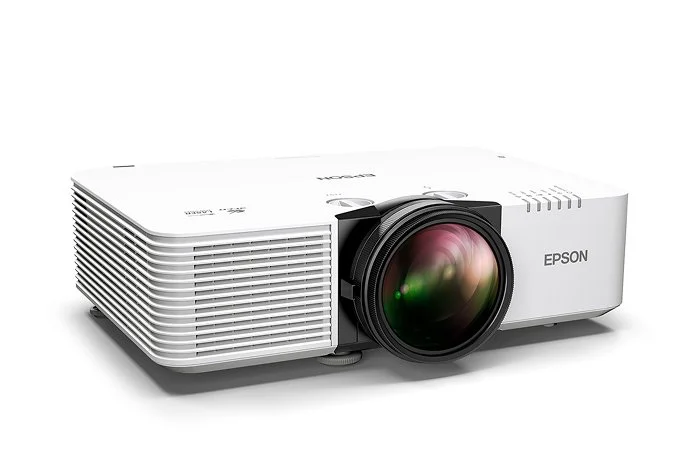

  • CO-W01 Projector

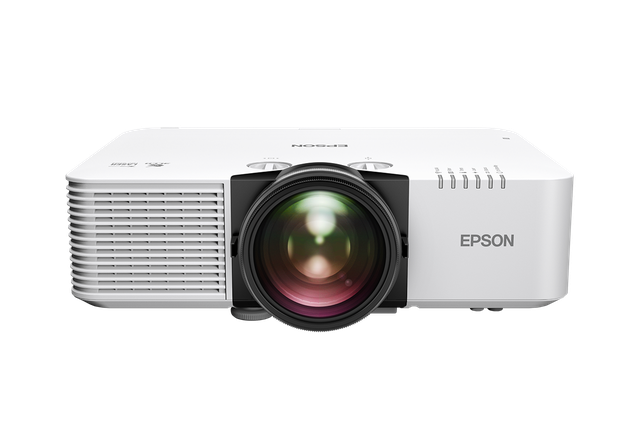

  • Epson EB-725Wi Projector
  • Epson EB-760W Projector

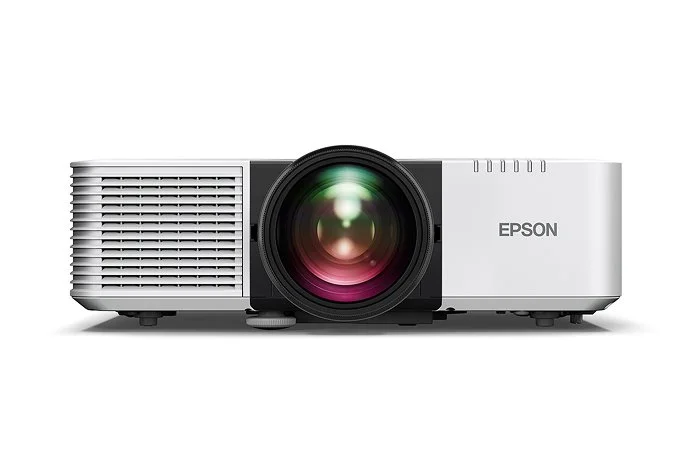

  • Epson EB-770F Projector

Key Features

Experience the extraordinary versatility and performance of our bright and compact L-Series. Expanding on the possibilities of this powerful projector lineup, the high-lumen EB-L790SE features an expansive 0.79 – 1.36 throw ratio and a large display up to 400". With wide vertical and horizontal lens shifts and 1.7x optical zoom, the projector is ideal for a wide variety of applications, such as conference rooms, hybrid workspaces, golf simulation, museum exhibitions and more. Deliver ultra bright images in rooms with high-ambient light with 7,000 lumens of equal color and white brightness1 and 4K Enhancement Technology2 that displays double HD resolution on screen.



Simple to install, the EB-L790SE is easy to operate from start to finish. Built-in NFC functionality3, wide lens shift, 360-degree mounting, geometric correction tools and more allow for simple, seamless integration. Created with convenience in mind, the projector features an up to 30,000-hour virtually maintenance-free laser light source4 and air filter in Extended Mode. Plus, it’s built for modern connectivity with fast wireless functionality for screen casting and PC-less remote management and control via the Epson Projector Management Connected app. In addition, simplify complex multi-projector applications with the optional attachable ELPEC01 camera

  • 7,000 lumens color/white brightness1

  • WUXGA with 4K Enhancement2 for clear, detailed images

  • 0.79 to 1.36 throw ratio and 1.7x optical zoom

  • Display up to 400" diagonal in 16:10, plus ultra wide 16:6 and 21:9

  • Lightweight, compact design allows for easy installation

  • AirPlay 2 supported

Technical Specifications

  • Screen Size:

    100” diagonal 1.08m - 1.54m

    Zoom:

    Zoom: Wide: 60” – 400” [1.02 to 6.95m]
    Zoom: Tele: 60” to 400” [1.75 - 11.89m]

    Throw Ratio Range:

    0.79-1.36

  • Point Correction:

    360º Free

  • Operating Altitude:

    Over 1,500m/4,921ft with High Altitude Mode: 0 - 3,048m (0 -10,000ft)

  • Type:

    Electrostatic Filter

    Maintenance Cycle*2:’

    20,000 hours (Normal) / 30,000 hours (Extended)

  • Size - projected distance:’

    254cm (100”) diagonal (wide: 9.3’ – tele: 19.8’)

    Contrast Ratio:Over 50,00,000:

    Projection Method:Front / rear / ceiling mount

    Projection System:3LCD Reflective, 3-chip technology Poly-silicon TFT active matrix

    Pixel Number:(1920X1200) X3

    Projected Output:

    Sound Output:
    10 W Monaural

    Aspect Ratio:

    Native 16:10

    Driving Method:

    Epson Poly-silicon TFT active matrix, 0.74-inch wide panel Reflective HTPS

    Native Resolution:

    1920X 1200 with 4K Enhancement

    Laser Type:

    Laser Diode 41.9 mW (Output)

    Light Source Life:

    Up to 20,000 hours (ECO Mode)*2

  • Open (D x W x H):

    440 x 304 x 122 mm

    Weight:9.3 kg

  • Supported Speed for each Mode:

    Infrastructure:
    IEEE 802.11b (2.4GHz): 11 Mbps6; IEEE 802.11g (2.4GHz): 54 Mbps6; IEEE 802.11n (2.4GHz): 72.2 Mbps6; IEEE 802.11a (5GHz): 54 Mbps6; IEEE 802.11n (5GHz): 150.0 Mbps6; IEEE 802.11ac (5GHz): 325 Mbps6;


    Access Point(Wi-Fi Direct):
    IEEE 802.11g (2.4GHz): 54 Mbps6; IEEE 802.11n (2.4GHz): 72.2 Mbps6; IEEE 802.11a (5GHz): 54 Mbps6; IEEE 802.11n (5GHz): 150.0 Mbps6; IEEE 802.11ac (5GHz): 325 Mbps6

    Supported Security Type:

    Infrastructure: Open, WPA2/WPA3-PSK, WPA2/WPA3-EAP; Supported EAP Type: PEAP, PEAP-TLS, EAP-TLS; Access Point (Wi-Fi Direct): WPA2-PSK (AES)

    Supported Mode:

    Infrastructure, Access Point (Wi-Fi Direct)

  • Standard Connectivity:USB:

    USB Type A: 2 (Port 1: For PC Free, Document Camera, Firmware Update, Copy OSD Settings,Content Playback, ELPEC01 or 5V/2A Power Supply; Port 2: For PC Free, Document Camera, Firmware Update, Copy OSD Settings, Content Playback,ELPEC01 or 5V/0.9A Power Supply USB Type B: 1 (For Firmware Update, Copy OSD Settings)


    Network:
    Wired LAN: RJ45 x 1 (100Mbps)


    Digital Input:

    HDMI : 2 (HDCP 2.3); HDBaseT: 1 (HDCP 2.3)


    Digital Output:

    HDMI Out: 1 (HDCP2.3, supports only HDMI1 input)

  • RS-232C:

    RS-232C: 1 (D-Sub 9pin)

  • Direct Power On / Off:

    Yes


    Power Supply Voltage:

    100 - 240 V AC ±10%, 50/60 Hz


    Power Consumption (220-240V area):

    LD On (Normal / Extended): 450W / 330W Standby (Normal / Eco): 2.4 W / 0.4 W

  • White Light Output (Normal / Eco):

    7000lm / 4900lm lm*

    Colour Light Output:

    7,000 lm*

    Contrast Ratio:

    Over 50,00.000 :

    Colour Mode:

    Dynamic, Presentation, Cinema, BT.709, Natural, DICOM, SIM, Multi-PJ

    Light Output (Center):

    7600*3
