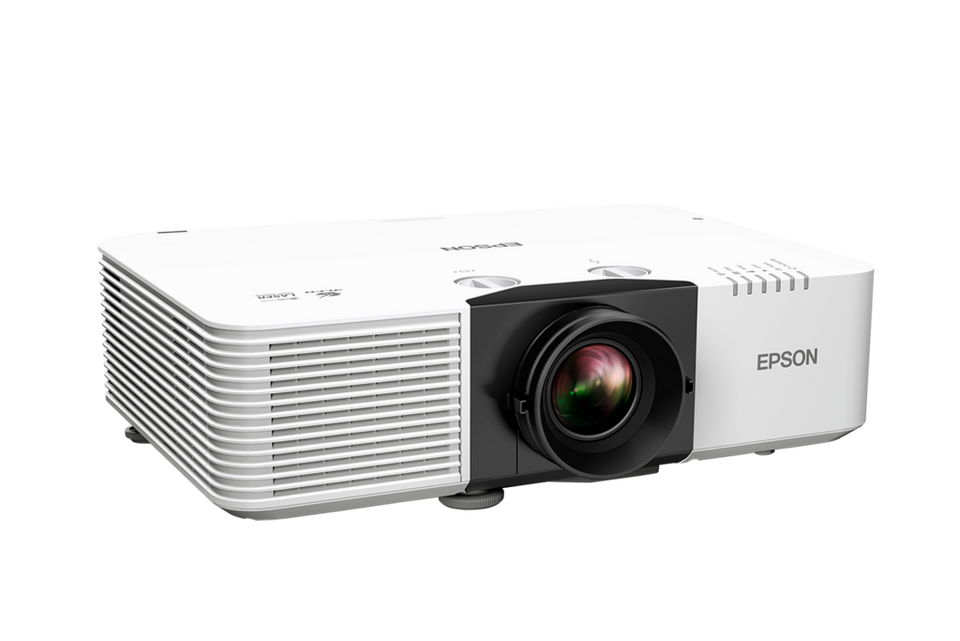

EB-L790U - 7,300 lumens, WUXGA, compact projector

Powerful 7,300 lumens, WUXGA 3LCD display solution

Request a call back
  • CO-W01 Projector
  • Epson EB-725Wi Projector
  • Epson EB-760W Projector
  • Epson EB-770F Projector

Key Features

  • Spectacular 7,300 lumens projector with WUXGA resolution Ideal for meeting rooms, lecture halls and more. This compact, budget-friendly laser display delivers high-quality performance in any setting.

  • Compact design with scalable images up to 500” The lightweight design simplifies transport and installation while offering scalable images up to 500” for maximum flexibility.

  • Effortless, flexible installation With a fixed centre lens display, wide lens shift, and advanced features, setup is easy and adaptable to any environment.

  • Quiet operation A high-performance projector with a low noise level of 25dB in Eco mode, ensuring a quiet, focused environment for presentations and meetings.

  • Instant connectivity with Apple AirPlay 2 and Miracast1 Seamlessly share content from laptops, tablets, and smartphones - perfect for BYOD setups and collaborative environments.

  • Making sustainable choices with Epson Made from 19% recycled plastics, low power consumption, reduced packaging and a usage life of up to 30,000 hours in Eco mode (20,000 hours normal).

Tech Specs

The product features and specifications are subject to change without prior notice

  • Projection System

    3LCD Technology, RGB liquid crystal shutter

    LCD Panel

    0,67 inch with C2 Fine

  • Color Light Output

    7.300 Lumen- 5.110 Lumen (economy) In accordance with IDMS15.4

    White Light Output

    7.300 Lumen - 5.110 Lumen (economy) In accordance with ISO 21118:2020

    Resolution

    WUXGA

    Aspect Ratio

    16:10

    Contrast Ratio

    Over 5.000.000 : 1

    Light source

    Laser

    Laser Light source

    20.000 hours Durability High, 30.000 hours Durability Eco

    Keystone Correction

    Manual vertical: ±30 °, Manual horizontal ±30 °

    Colour Video Processing

    10 Bits

    Colour Reproduction

    Upto 1.07 billion colours

  • Throw Ratio

    1,35 - 2,20:1

    Zoom

    Manual, Factor:1 - 1,6

    Lens

    Optical

    Lens Shift

    Manual - Vertical ±50 %, horizontal ±20 %

    Screen Size

    50 inches - 500 inches

    Projection Distance Wide

    1,4 m - 14,8 m

    Projection Distance Tele

    2,4 m - 23,8 m

    Projection Distance Wide/Tele

    1,44 m - 23,84 m

    Projection Lens F Number

    1,5 - 1,7

    Projection Lens Focal Length

    20 mm - 31,8 mm

    Projection Lens Focus

    Manual

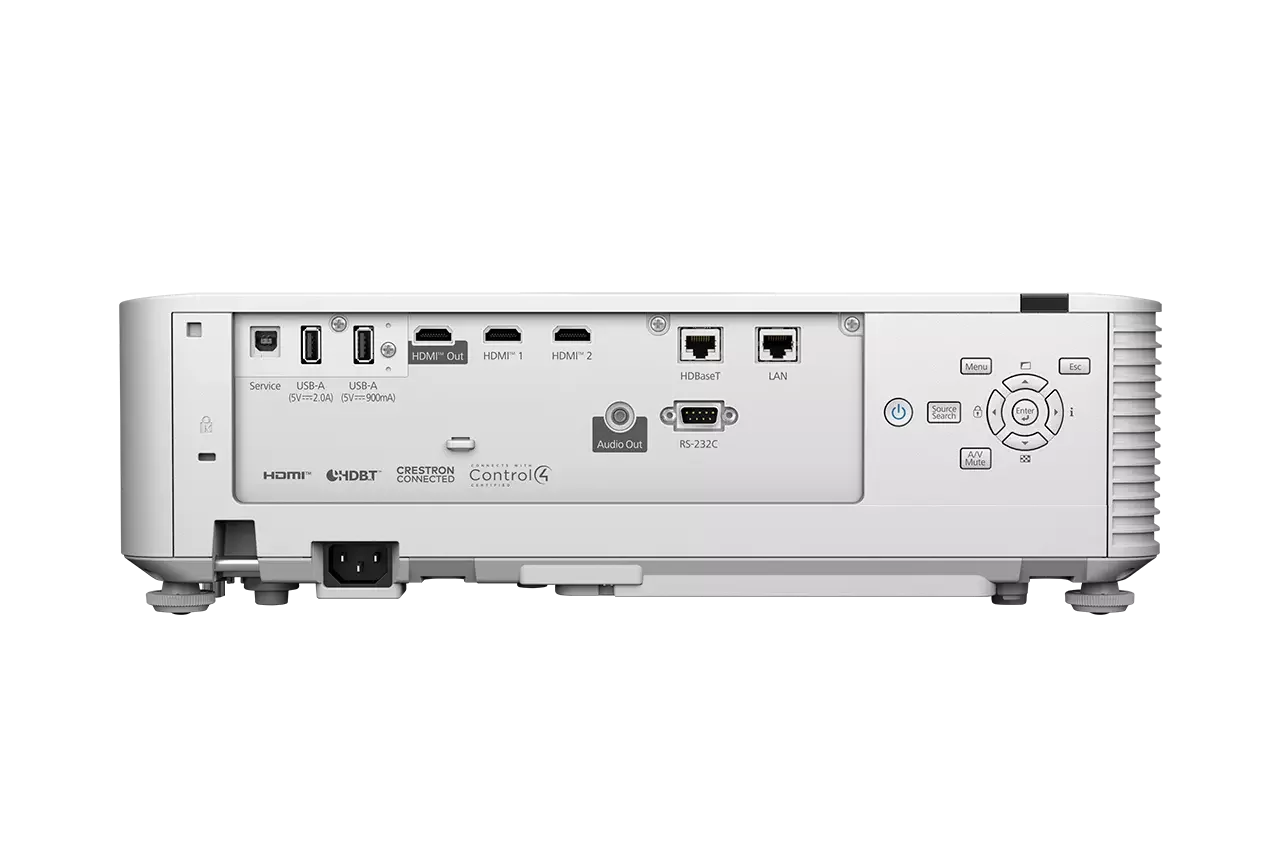

  • Interfaces

    USB 2.0 (2x), USB 2.0 Type B (Service Only), RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN IEEE 802.11a/b/g/n/ac, HDMI out, HDBaseT, Miracast, Jack plug out, HDMI (HDCP 2.3) (2x), Near Field Communication (NFC), Apple AirPlay 2

    Epson iProjection App

    Ad-Hoc / Infrastructure

    Network Protocol

    HTTPS, SNMP, ESC/VP.net, PJLink

  • Security

    Kensington lock, Control panel lock, Padlock, Security cable hole, Wireless LAN unit lock, Password protection

    2D Colour Modes

    Dynamic, Natural, Cinema, Presentation, DICOM SIM

    Other features

    21:9 aspect ratio support, A/V mute, Auto Power On, Built-in speaker, Customizable user logo, Direct Power on/off, Document Camera Compatible, Edge Blending, Home Screen, JPEG Viewer, Network projection, OSD copy function, PC Free, Point correction, Quick Corner, Schedule Function, Screen Mirroring, Split-Screen-Function, Ultra-wide display (16:6), Web Control, Web Remote, Wireless LAN capable, iProjection App

    Video Color Modes

    Cinema, Dynamic, Natural, Presentation, DICOM SIM, Multi Projection, BT709

    Projector control

    via: Crestron Integrated Partner, Extron XTP, AMX Device Discovery

  • Power consumption

    336 Watt (Normal On-Mode), 233 Watt (Eco On-Mode), 399 Watt (Normal Peak-mode), 295 Watt (Eco Peak-Mode), 0,4 Watt (Energy saving standby)

    Supply Voltage

    AC 100 V - 240 V, 50 Hz - 60 Hz

    Product dimensions

    440‎ x 340 x 138 mm (Width x Depth x Height)

    Product weight

    8,2 kg

    Noise Level

    Normal:34 dB (A) - Economy:25 dB (A)

    Supported Temperature

    Storage -10° C - 60° C

    Supported Humidity

    Operation 20% - 80%, Storage 10% - 90%

    Options

    Air filter, Camera module, Ceiling mount, Document camera, External Speaker, HDBaseT Transmitter, Safety wire set, Suspension adapter, WP System - ELPWP20

    Loudspeaker

    10 Watt

    Room Type / Application

    Large Meeting Room/Boardroom, Auditorium, Meeting room / Classroom, Projection Mapping, Rental / Staging, Signage / Retail, Visitor Attraction

    Positioning

    Ceiling Mounted, Desktop

    Colour

    White

  • Warranty

    36 months Carry in
