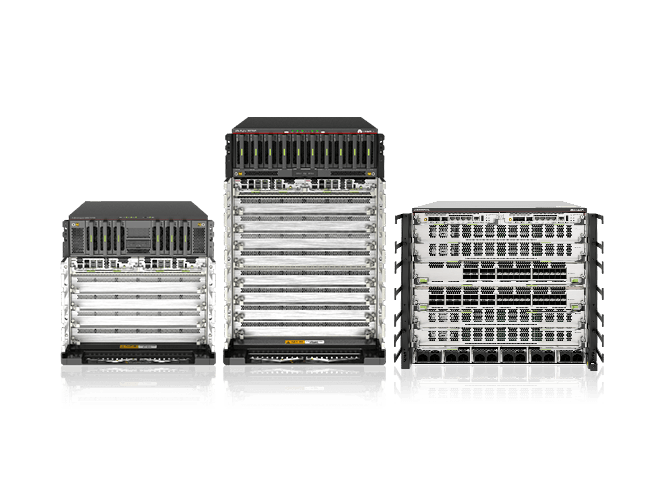

HiSecEngine USG12000 Series AI Firewalls
The HiSecEngine USG12000 series is the industry's first terabit-level Artificial Intelligence (AI) firewall launched by Huawei for mitigating known and unknown threats at the network edge in real-time. It is typically deployed at the egress of cloud computing data centers, large enterprises, and campus networks to provide industry-leading protection capabilities.
An advanced hardware architecture design and an array of energy conservation technologies slash energy consumption, while a full lineup of Line Interface Processing Units (LPUs) — with a per-slot interface density of up to 18 x 100 GE — meets heavy-bandwidth traffic requirements.
The series provides comprehensive, carrier-grade high-reliability architecture, supporting a multitude of reliability mechanisms, such as dual Main Processing Unit (MPU) backup, Hot Standby (HSB), Non-Stop Routing (NSR), and Graceful Restart (GR). A hardware-based software integrity check mechanism prevents unauthorized software from running, ultimately building a secure foundation for the network.
With terabit-level service processing power and a suite of security features — covering Network Address Translation (NAT), Carrier-Grade NAT (CGN), Virtual Private Network (VPN), virtualization, and content security — HiSecEngine USG12000 equips enterprises to handle the heavy bandwidth traffic and diverse service threats of the intelligent era.
Three Reasons for Choosing Huawei Firewalls
Exceptional Performance
• Adaptive Security Engine (ASE): Dynamically allocates resources across service modules to maximize resource utilization and enhance overall performance.
• NP, pattern matching, and encryption/decryption co-processing engines: Improve small-packet forwarding performance, reduce forwarding latency, and enhance capabilities in application identification, intrusion detection, and services such as IPsec.
Exceptional Performance
• Adaptive Security Engine (ASE): Dynamically allocates resources across service modules to maximize resource utilization and enhance overall performance.
• NP, pattern matching, and encryption/decryption co-processing engines: Improve small-packet forwarding performance, reduce forwarding latency, and enhance capabilities in application identification, intrusion detection, and services such as IPsec.
Simplified O&M
• Unified O&M: A centralized controller enables unified policy orchestration and automated alarm correlation analysis. Combined with cloud-network-edge coordination, it enables threat response within seconds.
• Simplified O&M: A newly defined security interface with threat visualization presents key information, such as device status, alarms, traffic, and threat events in an intuitive way, simplifying O&M.
Specifications
USG12000
| Parameters | USG12004 | USG12008 |
|---|---|---|
| Interface |
24-port 10GBase SFP+ + 2-port 100GBase-QSFP28 LPU 24-port 10GBase SFP+ + 4-port 100GBase-QSFP28 LPU 48-port 10GBase SFP+ LPU |
4-Port 400GBase-QSFP-DD LPU 24-port 10GBase SFP+ + 2-port 100GBase-QSFP28 LPU 24-port 10GBase SFP+ + 4-port 100GBase-QSFP28 LPU 48-port 10GBase SFP+ LPU 18-port 100GBase-QSFP28 LPU |
| Rack Unit | 9.8U | 15.8U |
| Dimensions (H x W x D) |
438 × 442 × 874 mm | 703 × 442 × 874 mm |
| Input Rated Voltage |
DC: −48 V/−60 V AC: 220 V; 50/60 Hz HVDC: 240 V/380 V |
DC: −48 V/−60 V AC: 220 V; 50/60 Hz HVDC: 240 V/380 V |
| Input Voltage Range |
DC: −40 V to −72 V AC: 176–290 V; 45–65 Hz HVDC: 188–288 V/260–400 V |
DC: −40 V to −72 V AC: 176–290 V; 45–65 Hz HVDC: 188–288 V/260–400 V |
| Maximum Input Current |
DC: 58.5 A @ −40 V AC: 16 A @ 200 V; 18.5 A @ 176 V HVDC: 18 A @ 188 V; 13 A @ 260 V |
DC: 62 A @ −40 V AC: 16 A @ 200 V; 18.5 A @ 176 V HVDC: 18 A @ 188 V; 13 A @ 260 V |
| Fan Type | Pluggable fan module | Pluggable fan module |
| Power Supply Redundancy | Supported | Supported |
|
Weight (with Base Configuration, Excluding Packing Materials) |
USG12004-DC: 81 kg USG12004-AC: 76 kg |
USG12008-DC: 100 kg USG12008-AC: 94 kg |
|
Weight (with Full Configuration, Excluding Packaging Materials) |
USG12004-DC: 141.4 kg USG12004-AC: 142.6 kg |
USG12008-DC: 245.6 kg USG12008-AC: 244.8 kg |
USG12000-F
| Parameters | USG12004-F | USG12008-F |
|---|---|---|
| Interface |
2-port 100G QSFP28 and 24-port 100M/1G/12GBASE-X interface card (SFP+) LPU 24-port 100M/1G/10GBASE-X interface card (SFP+) LPU |
2-port 100G QSFP28 and 24-port 100M/1G/12GBASE-X interface card (SFP+) LPU 24-port 100M/1G/10GBASE-X interface card (SFP+) LPU |
| Rack Unit | 8U | 13U |
| Dimensions without packaging (H x W x D) [mm(in.)] |
Without cable management frames: 352.8 mm × 442 mm × 515.5 mm With cable management frames: 352.8 mm × 442 mm × 585.5 mm |
Without cable management frames: 575 mm × 442 mm × 515.5 mm With cable management frames: 575 mm × 442 mm × 585.5 mm |
| Maximum power consumption [W] | 1560 W | 2914 W |
| Maximum heat dissipation [BTU/hour] | 5322.94 BTU/hour | 9942.98 BTU/hour |
| MTBF [year] | 32.04 year | 30.65 year |
| MTTR [hour] | 2.42 hour | 2.42 hour |
| Availability | 0.9999954 | 0.9999954 |
| Power supply mode | AC built-in, HVDC built-in, DC built-in | AC built-in, HVDC built-in, DC built-in |
| Rated input voltage [V] |
AC: 220 V, 50 Hz/60 Hz High-voltage DC: 240 V DC: −48 V/−60 V |
AC: 220 V, 50 Hz/60 Hz High-voltage DC: 240 V DC: −48 V/−60 V |
| Input voltage range [V] |
AC: 176 V to 290 V, 45 Hz to 65 Hz High-voltage DC: 188 V to 288 V DC: −40 V to −72 V |
AC: 176 V to 290 V, 45 Hz to 65 Hz High-voltage DC: 188 V to 288 V DC: −40 V to −72 V |
| Maximum input current [A] |
AC: 16 A @ 200 V / 18.5 A @ 176 V High-voltage DC: 18 A @ 188 V DC: 63 A @ −40 V |
AC: 16 A @ 200 V / 18.5 A @ 176 V High-voltage DC: 18 A @ 188 V DC: 63 A @ −40 V |
USG12000-H6
| Parameters | USG12000-H6 |
|---|---|
| Interface |
16-port 100GBase-QSFP28 + 24-port 10GBase-SFP+ LPU 8-port 100GBase-QSFP28 + 24-port 10GBase-SFP+ LPU 4-port 40G/100GBase-QSFP28 and 24-port 100M/1G/10GBase-SFP+ Interface Card |
| Rack Unit | 8.8U |
| Dimensions (H x W x D) | 392.12 × 442 × 515.5 mm |
| Input Rated Voltage |
DC: −48 V / −60 V / 48 V AC: 110 V / 220 V; 50/60 Hz HVDC: 240 V / 336 V |
| Input Voltage Range |
DC: −38.4 V to −72 V or 38.4 V to 57.6 V AC: 90 V to 290 V; 45 Hz to 65 Hz HVDC: 190 V to 400 V |
| Maximum Input Current |
DC: 63 A AC/HVDC: 10 A or 16 A |
| Fan Type | Pluggable fan module |
| Power Supply Redundancy | Supported |
| Weight (with Base Configuration, Excluding Packing Materials) | 33.6 kg |
| Weight (with Full Configuration, Excluding Packaging Materials) | 68.52 kg |
