PanaCast 50
Room System 2

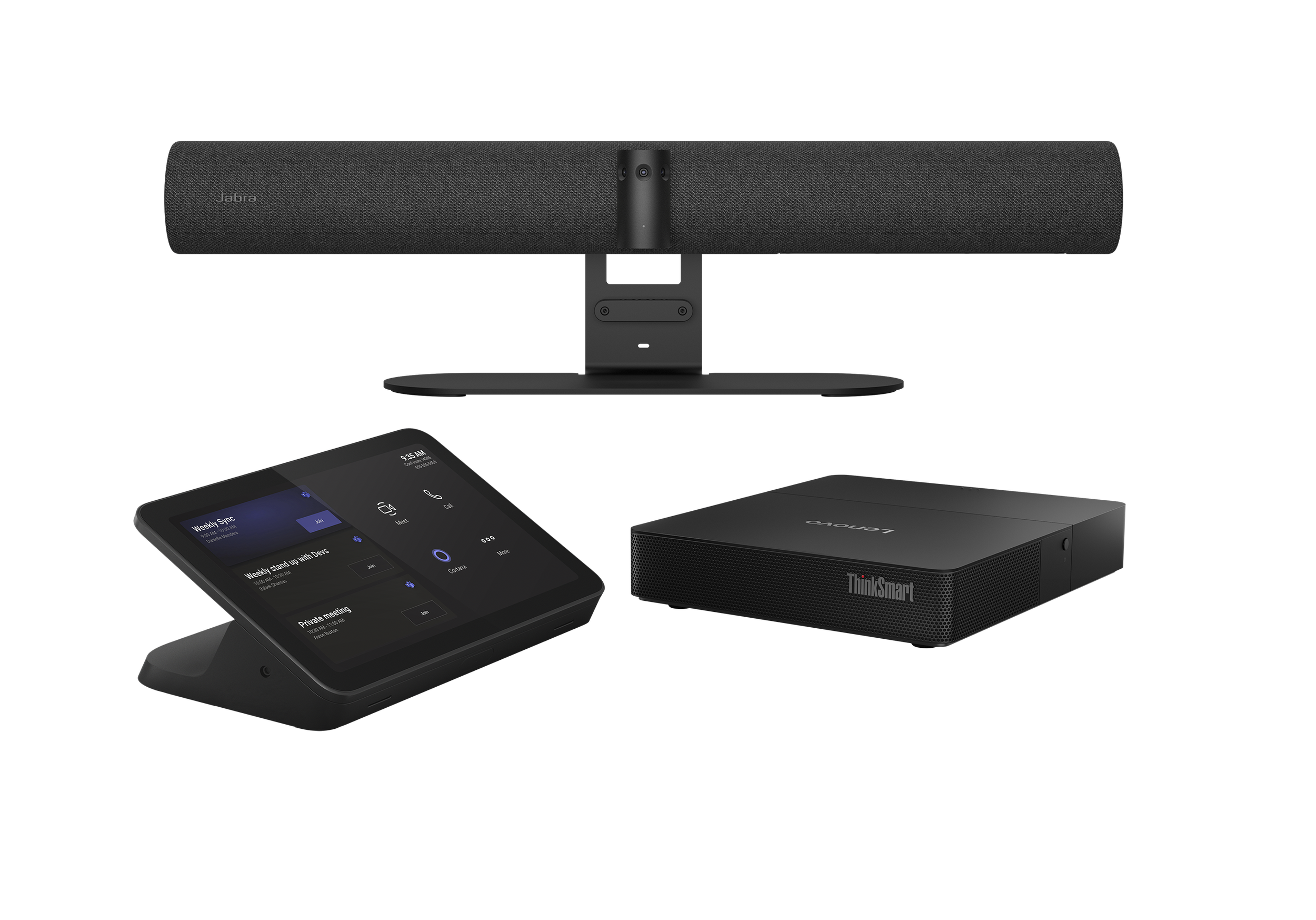

PanaCast 50 plus Lenovo ThinkSmart Core Gen 2. A match made for smarter Microsoft Teams meetings.
More power, more flexibility
We’re making hybrid collaboration even more seamless with the PanaCast 50 Room System 2 - the next evolution in intelligent video conferencing. Featuring an upgraded Lenovo Core Gen 2 and a choice of two new touch controller options, it delivers next-level performance, flexibility, and security.
Fully immersive. For all.

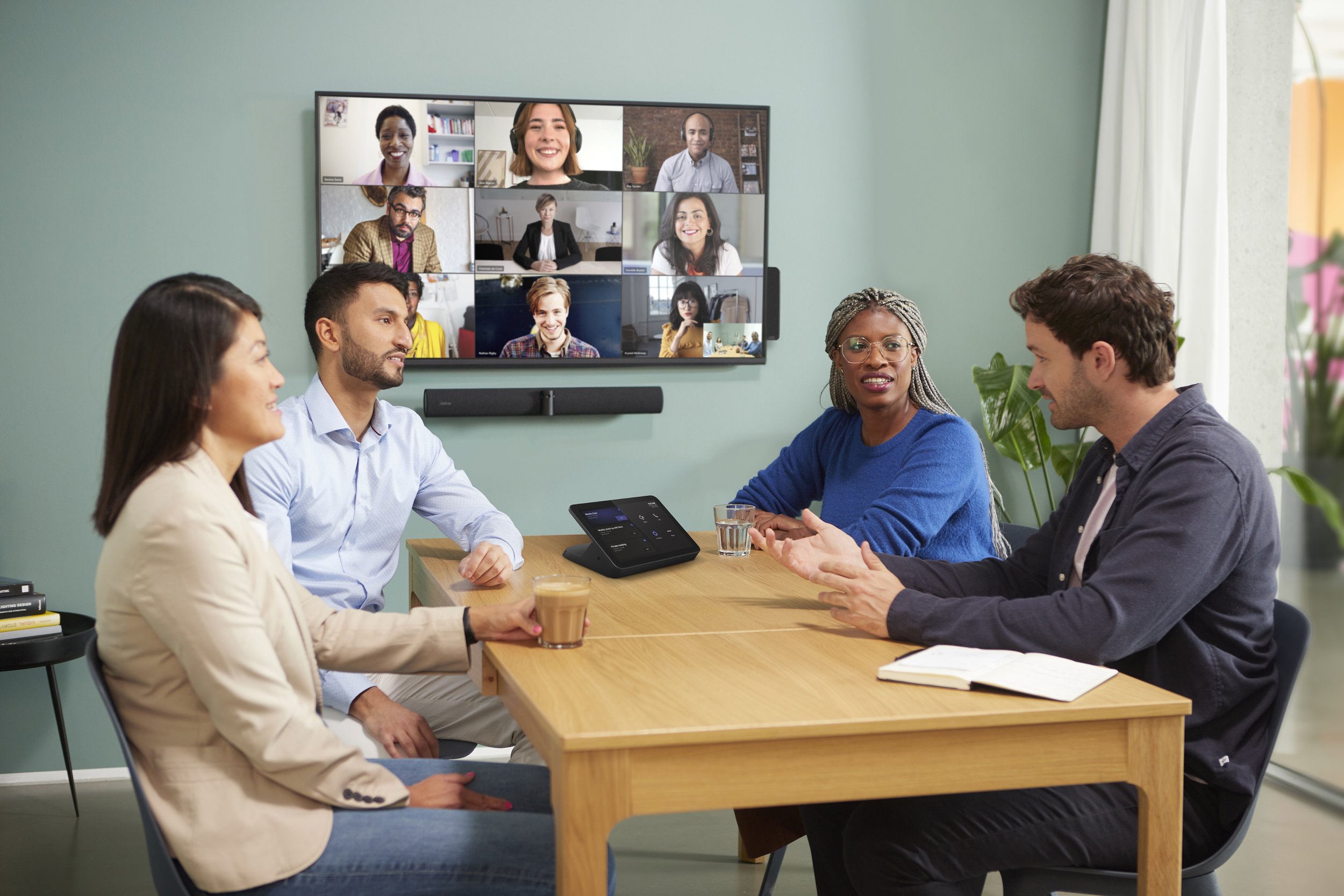

Nearly half of hybrid workers feel disconnected when not in the meeting room. That’s why the intelligent features of the Jabra PanaCast 50 Room System 2 are the complete solution to keep meetings engaging and productive. When the whole team is interacting as equal participants, get ready for next-level results.
Collaboration, for the win.
WORLD-LEADING AUDIO
Sound that astounds.
Great meetings start with great sound, and as the world leaders in professional audio, that’s something we know a thing or two about.
We’ve reinvented meeting room audio for modern ways of working, with eight professional-grade microphones and precision voice detection.

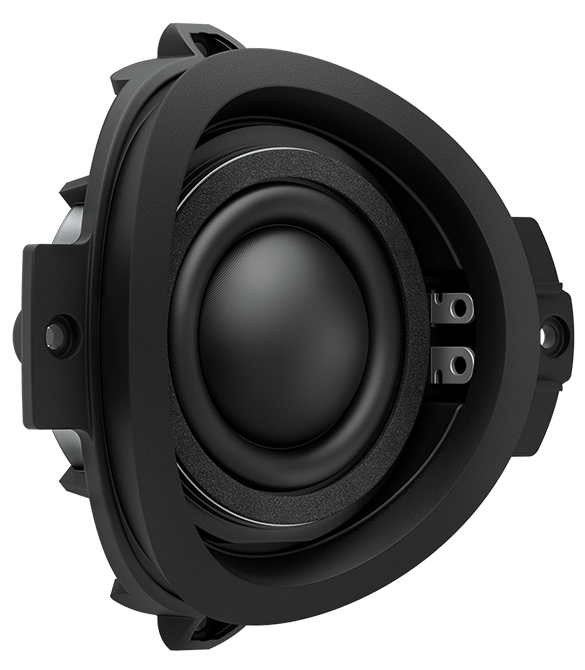

Intelligent algorithms automatically identify and remove residual echo and static noise, and we added an array of four powerful speakers in a zero-vibration stereo setup, to fill the room with premium, high-definition sound.
However you work, Jabra PanaCast 50 is engineered to keep you talking.
OUTSTANDING 180° VIDEO
All in.
In addition to our world-leading audio, we’ve gone all-in on inclusive video that keeps everyone, well… all in.
Three 13-megapixel cameras, mounted in a high-precision, multi-camera array, cover every part of the room.
But here’s the really clever part:

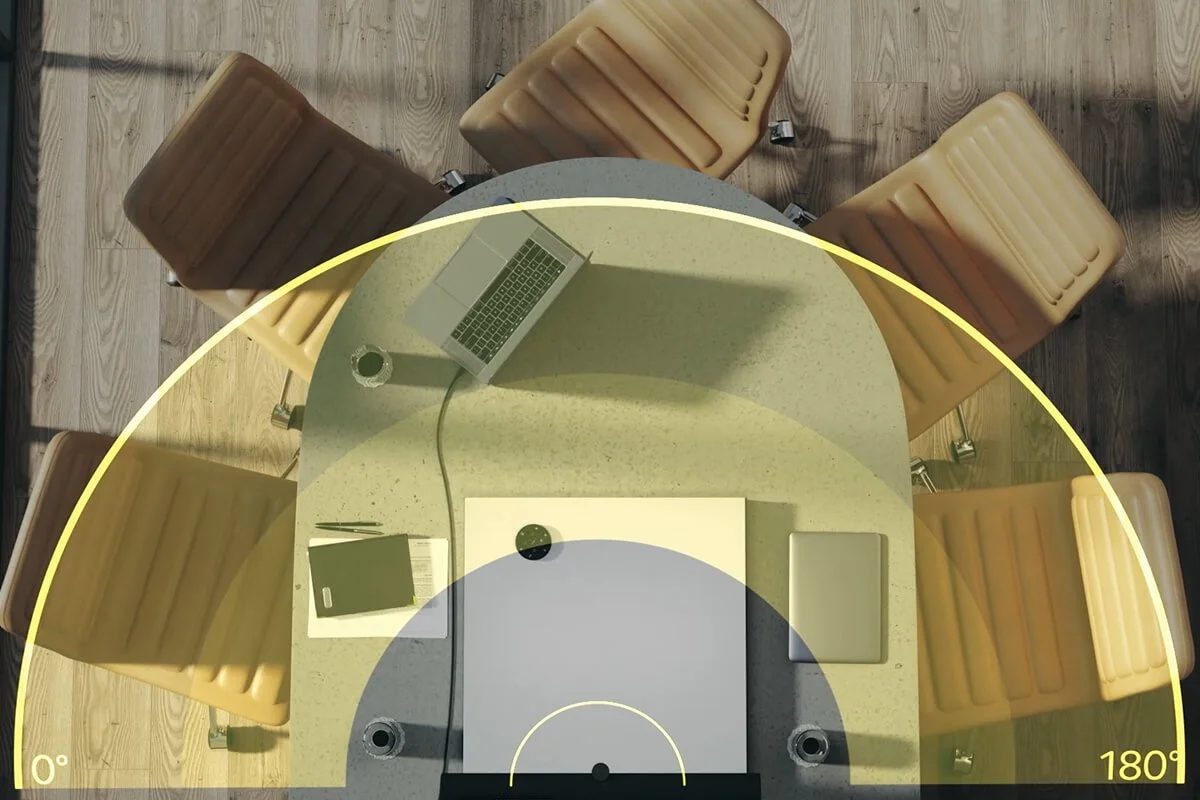

Our patented real-time video stitching technology intelligently decides exactly the right point to live-stitch the three feeds together, creating a smooth, 180° view in high-definition Panoramic-4K.
That means nobody is squeezed together, distorted, or missing from the picture. Jabra PanaCast 50 puts inclusive meetings back on the table, safely.
We’ve gone all-in on getting you all in.

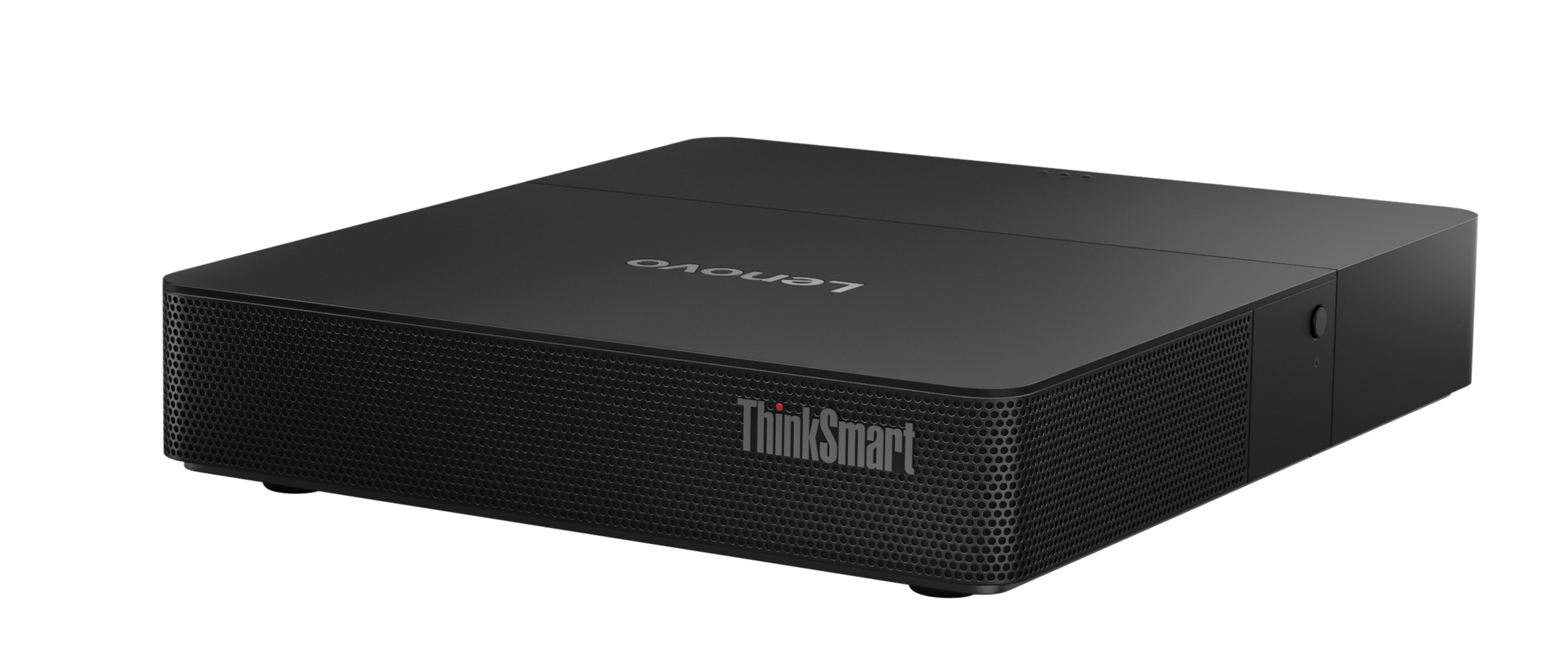

Lenovo ThinkSmart
The Lenovo ThinkSmart Core Gen 2 is the latest AI-ready system designed for Microsoft Teams Rooms, taking professional performance up a notch with the Ultra5 processor, up to 40% lower power consumption, and even safer security features. With seamless integration into hybrid meeting spaces, the ThinkSmart Core powers advanced AI-driven collaboration features for smooth, real-time processing of video, audio, and smart meeting functions.
You’re in control

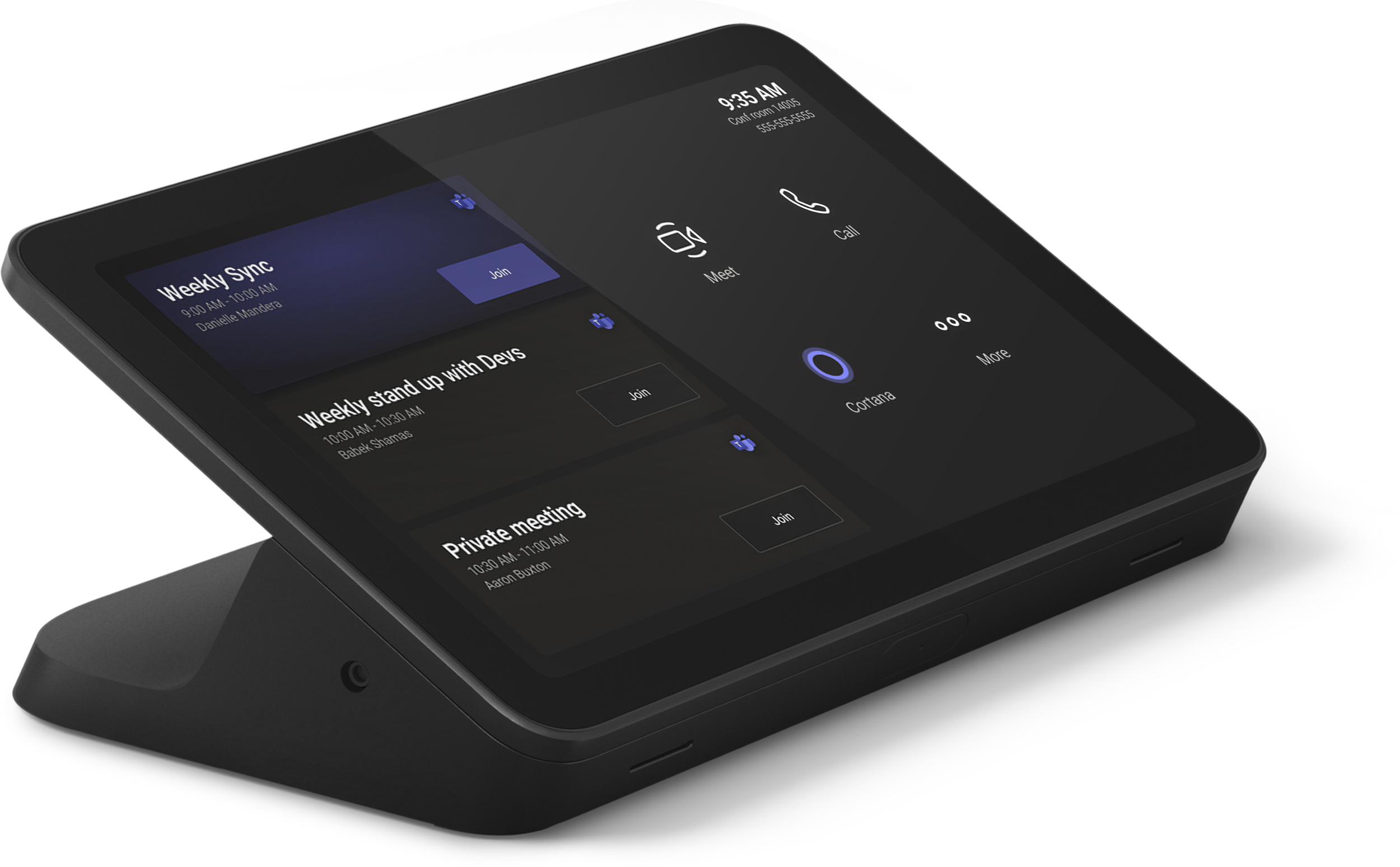

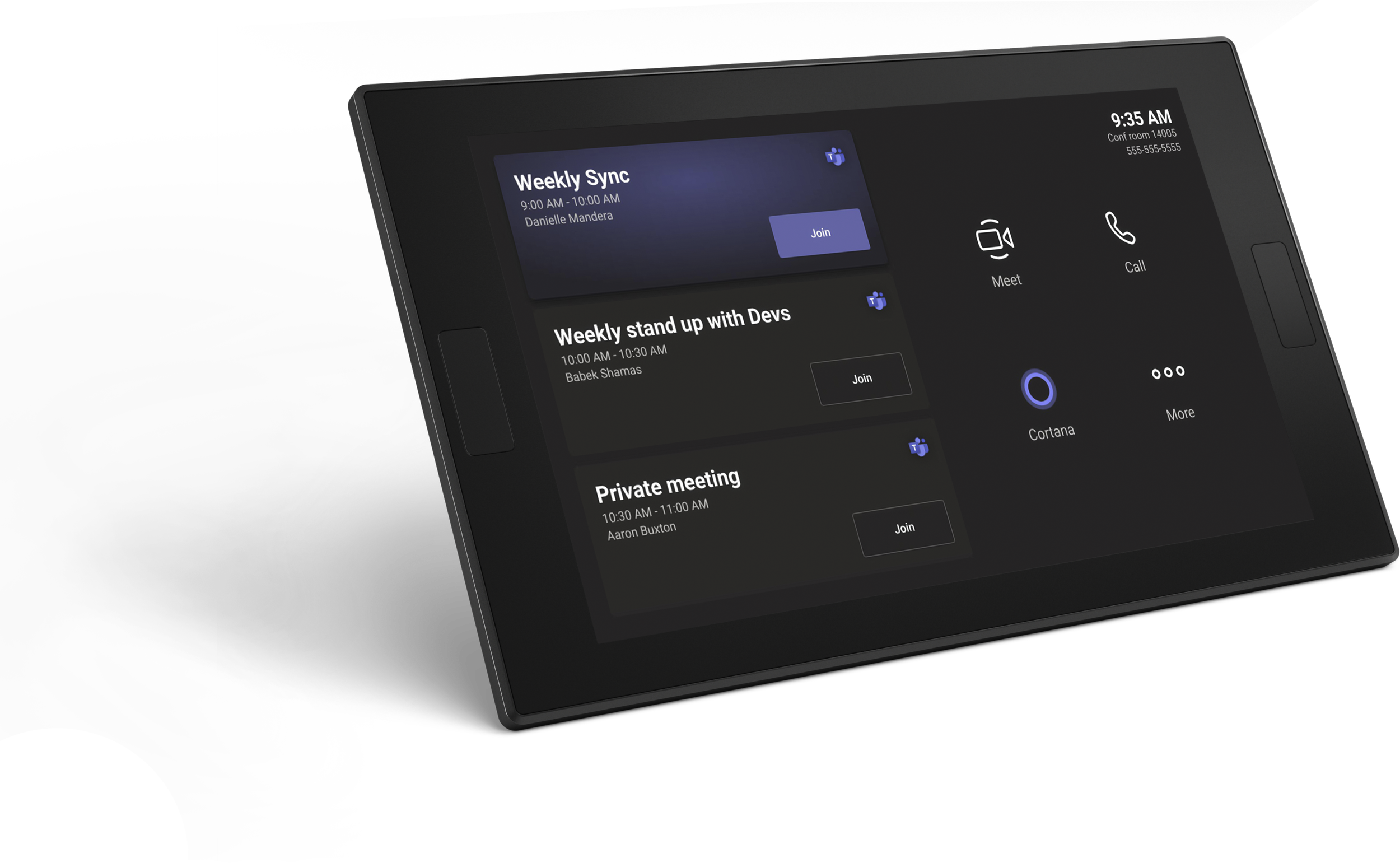

With a choice of two touchscreen controllers, you can find the perfect fit for every meeting space.
SIMPLE INSTALLATION
Easy as 1, 2, 3.
Whichever way you look at it, PanaCast 50 couldn’t be easier to install, with three different options, to suit every room setup.

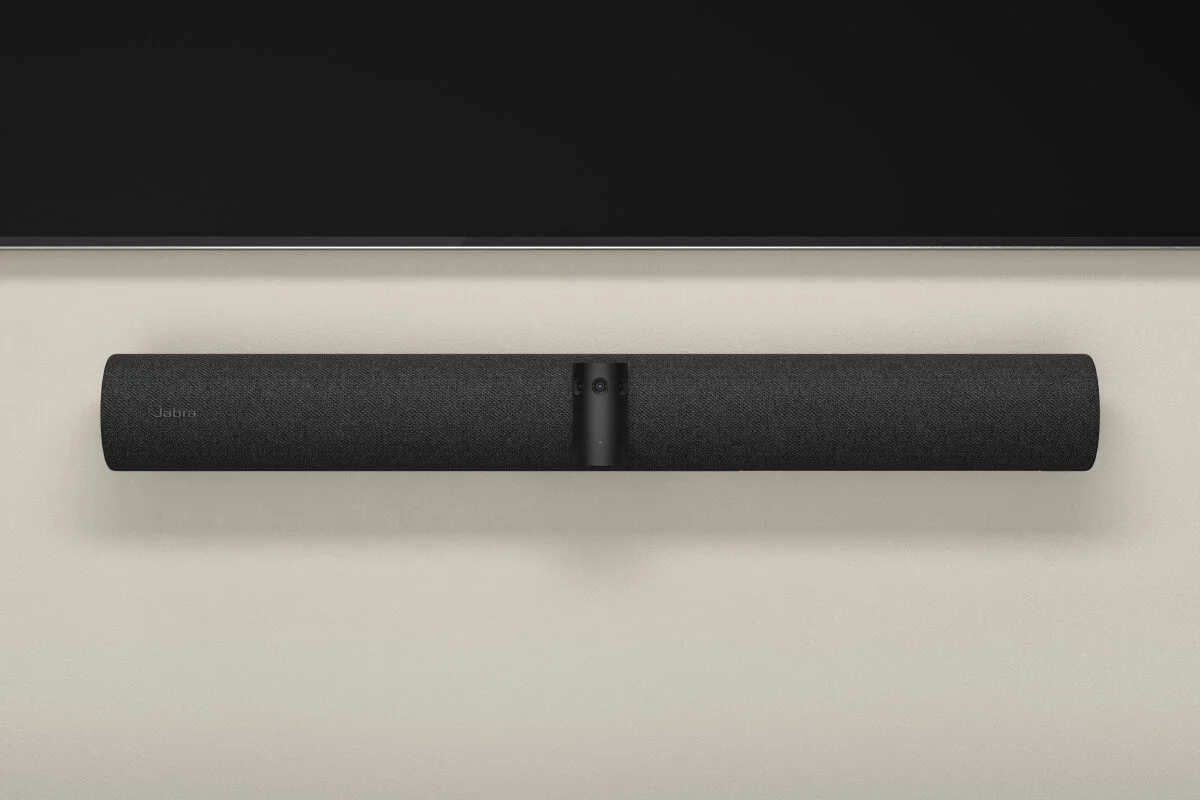

Choose from Wall Mount, Table Stand, and Screen Mount (VESA)*, with clear, easy-to-follow instructions.
Who doesn’t like to keep things simple?
Designed for Microsoft Teams Rooms
The PanaCast 50 Room System 2 comes with certified, preloaded software for seamless hybrid collaboration.
Intelligent Experiences
Technical specifications
-
Jabra PanaCast 50
PanaCast 50, power supply, wall mount, USB-C to USB-A cable 2m/6.6ft (USB 3.0), Privacy cover
Lenovo ThinkSmart Core Gen 2 and USB Controller
ThinkSmart Core Gen 2 computing device, ThinkSmart USB Controller display, Power Supply for Core Gen 2, wall Mounting Plate, Core Gen 2 Mounting Plate, power Supply mounting cage, 10m/32ft USB C to C Cable (for touch panel), 3m/9.8ft USB C Cable (for BYOM)
Preloaded application
Microsoft Teams Rooms
-
Number of cameras
3
Type of camera
Panoramic multi-camera array
Camera resolution
13 megapixels
Zoom
Up to 6x lossless digital zoom
Field of view
Horizontal: 180°, Vertical: 54°
Resolution
Panoramic-4K: 3840 x 1080 @ 30fps
Intelligent Zoom
Yes
Intelligent Meeting Space
Yes
Dynamic Composition
Single-stream Dynamic Composition (BYOD + MTR + ZR), Multi-stream Dynamic Composition
Virtual Director
Yes
Vivid HDR
Yes
Multi-stream IntelliFrame with people recognition
Yes
-
Speakers
2 x 2" (50mm) woofers, 2 x 3/4" (20mm) tweeters
Speaker frequency range
80Hz - 20000Hz
Number of speakers
4
Automatic speaker detection
Yes
Microphone type
8 microphone beamforming array certified for room up to 4.5m x 6m
Number of microphones
8
Microphone sensitivity
-37dBFS
Microphone frequency range
100Hz - 8000Hz
Aux-Out
Yes
Microsoft intelligent speaker functionality
Yes
-
System requirements
Compatible with Windows 11, macOS 10.15 and later, including macOS 11.x
Compatible software and/or apps
Jabra+, Jabra Direct, Jabra Sound+, Jabra Xpress
Proxy support
HTTP, SOCKS4, SOCKS4A, SOCKS5, SOCKS5H
Integrated PeopleCount
Yes
Software Development Kit (SDK)
Yes

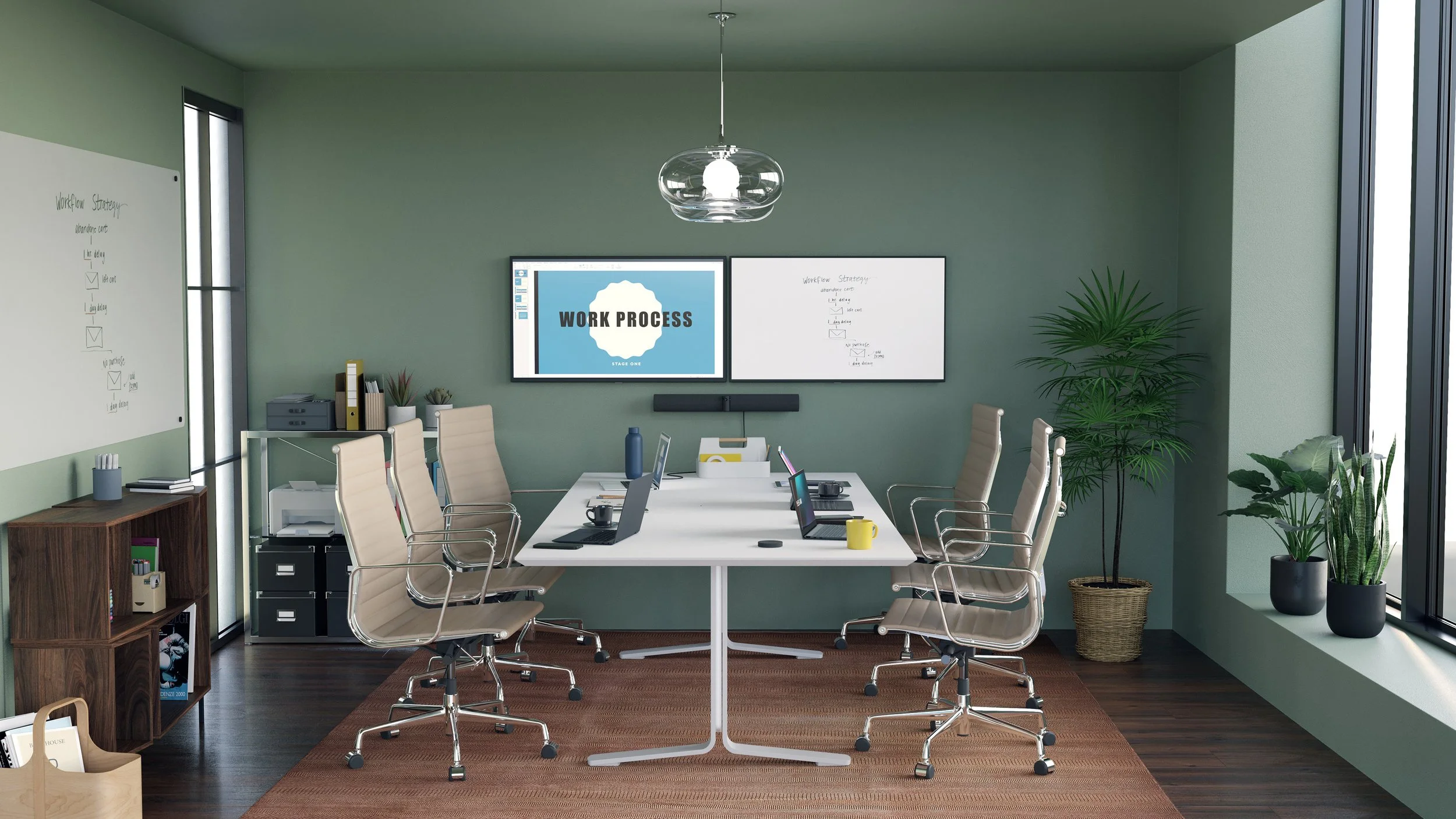

Whiteboard Sharing / Content Camera (Windows only)
Yes
-
Manual Pan-Tilt-Zoom (PTZ)
Yes
Intelligent Speaker
Yes
-
Connectivity
USB-A, USB-C, Ethernet (RJ45) for connection to supported management systems, Wi-Fi
Supported USB versions
USB 2.0, USB 3.0
Bluetooth Low Energy support
Yes, for remote control and Sound+ access
-
Operating temperature
5°C to 35°C | 41°F to 95°F
Storage temperature
-20°C to 60°C | -4°F to 140°F
Warranty
3 years
-
Packaging dimensions (D x W x H) cm/inch
19.6×69.8×51.9cm | 7.73×27.51×20.45in
Weight range, specific to regional power plug
10617.8g | 374.53oz | 23.36lb
Certifications and compliance
Microsoft Teams Rooms (with separate Microsoft Teams Rooms certification for integrated Content Camera), Microsoft Intelligent Camera Experience
Technical specifications - IP Controller
-
Jabra PanaCast 50
PanaCast 50, power supply, wall mount, USB-C to USB-A cable 2m/6.6ft (USB 3.0), Privacy cover
Lenovo ThinkSmart Core Gen 2 and IP Controller
ThinkSmart Core Gen 2 computing device, ThinkSmart IP Controller display, Lenovo Link Box, power Supply for Core Gen 2, wall mounting Plate, Core Gen 2 Mounting Plate, power Supply Mounting Cage, 5m/16.4ft CAT5e RJ45 Ethernet cable, 1.8m/6ft HDMI, 0.9m/3ft HDMI, 0.9m/3ft USB A to B, power supply for Lenovo Link Box, 3m/9.8ft USB C cable (for BYOD)
Preloaded application
Microsoft Teams Rooms
-
Number of cameras
3
Type of camera
Panoramic multi-camera array
Camera resolution
13 megapixels
Zoom
Up to 6x lossless digital zoom
Field of view
Horizontal: 180°, Vertical: 54°
Resolution
Panoramic-4K: 3840 x 1080 @ 30fps
Intelligent Zoom
Yes
Dynamic Composition
Single-stream Dynamic Composition (BYOD + MTR + ZR), Multi-stream Dynamic Composition
Virtual Director
Yes
Vivid HDR
Yes
Multi-stream IntelliFrame with people recognition
Yes
-
Speakers
2 x 2" (50mm) woofers, 2 x 3/4" (20mm) tweeters
Speaker frequency range
80Hz - 20kHz
Number of speakers
4
Automatic Speaker Detection
Yes
Microphone type
8 microphone beamforming array certified for room up to 4.5m x 6m
Number of microphones
8
Microphone sensitivity
-37dBFS
Aux-Out
Yes
Microsoft intelligent frequency range
Yes
-
System requirements
Compatible with Windows 11, macOS 10.15 and later, including macOS 11.x
Compatible software and apps
Jabra+, Jabra Direct, Jabra Sound+, Jabra Xpress
Proxy support
HTTP, SOCKS4, SOCKS4A, SOCKS5, SOCKS5H
Integrated PeopleCount
Yes
Software Development Kit (SDK)
Yes
Whiteboard Sharing / Content Camera (Windows only)
Yes
-
Manual Pan-Tilt-Zoom (PTZ)
Yes
Intelligent Speaker
Yes
-
Connectivity
USB-A, USB-C, Ethernet (RJ45) for connection to supported management systems, Wi-Fi
Supported USB versions
USB 2.0, USB 3.0
Bluetooth Low Energy support
Yes, for remote control and Sound+ access
-
Operating temperature
5°C to 35°C | 41°F to 95°F
Storage temperature
-20°C to 60°C | -4°F to 140°F
Warranty
3 years
-
Packaging dimensions (D x W x H) in cm/inch
19.6×69.8×51.9cm | 7.73×27.51×20.45in
Weight range, specific to regional power plug
11137.8g | 392.87oz | 24.51lb
Certifications and compliance
Microsoft Teams Rooms (with separate Microsoft Teams Rooms certification for integrated Content Camera), Microsoft Intelligent Camera Experience
