PanaCast 50 Video Bar System

Inclusive meetings at your fingertips

Contact sales

INTRODUCING THE PANACAST 50 VIDEO BAR SYSTEM

A smarter way to work the room

Our multi-award-winning PanaCast 50 is now available as an all-in-one video bar room system with intelligent AI experiences and an onboard Android compute for an engaging and easy-to-use meeting room solution.

Imagine meetings that started smoothly and kept everyone engaged from the word go. Now stop imagining it and start believing it, because that's exactly what PanaCast 50 Video Bar System is designed to do.

We’ve done the heavy lifting, so you don’t have to.

180° Field of View

INCLUSIVE 180° TECHNOLOGY

ULTRA-ADVANCED SYSTEM ARCHITECTURE

Future-ready

Next-level meetings demand next-level technology and next-level security.

Seven powerful Edge processors and 3 intelligent Edge AI processors perform real-time integration of audio, video, and data, to give your experience a serious upgrade, while on-device encryption, wired ethernet, and ready-for-WiFi connection options ensure your networks and data stay ultra-secure.

And because we want to keep making your meetings better, our unique adaptable flexible architecture means PanaCast 50 Video Bar System keeps reinventing itself, with future-ready feature updates and security protections that can be easily accessed using your platform device manager.

With PanaCast 50 Video Bar System, your meetings just keep getting better.

Read all about Edge AI’s game-changing abilities

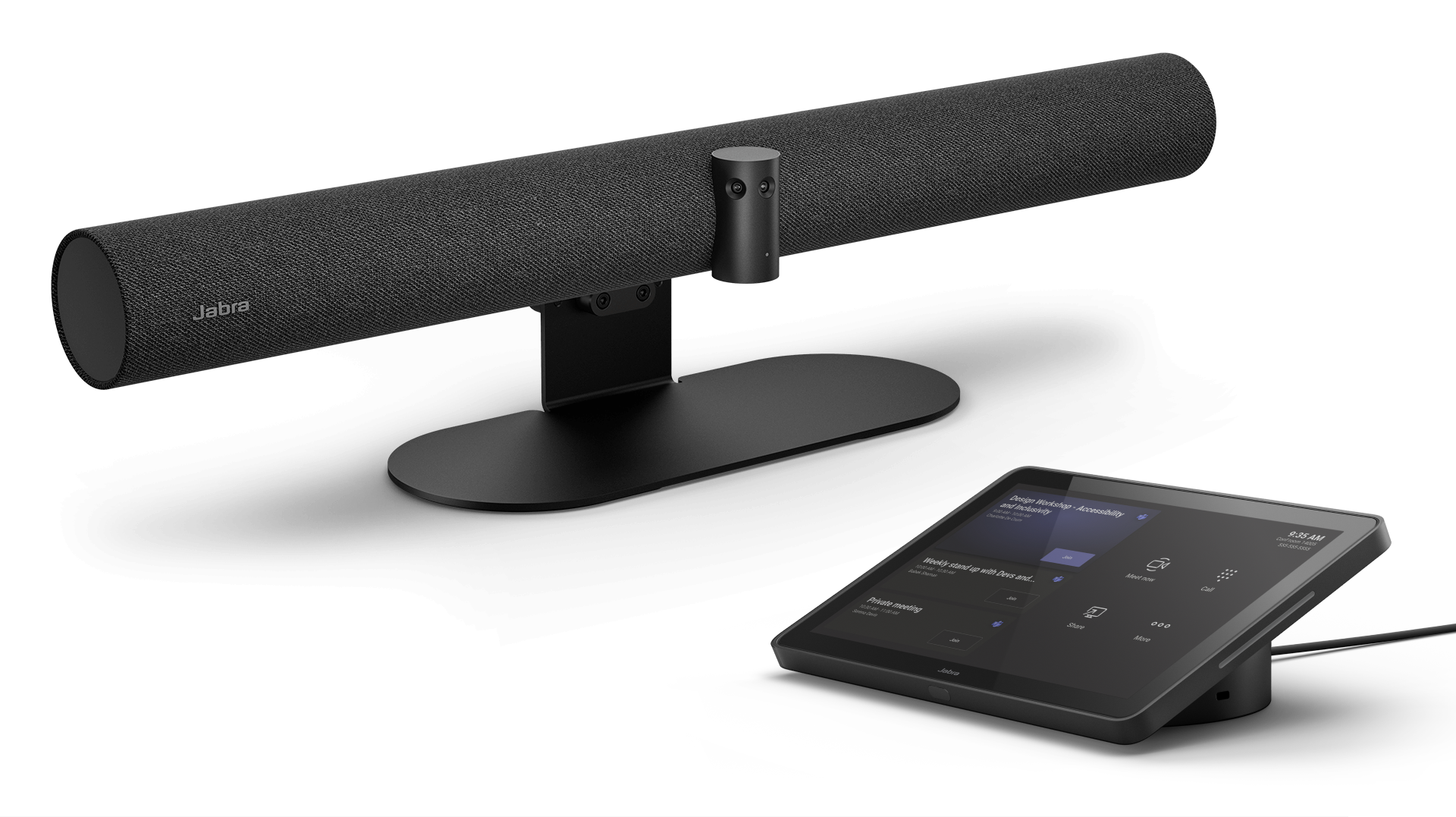

EASE OF USE

One touch is all it takes

We all know the sweaty-palmed stress of rushing last minute into a meeting and then frantically fumbling around to get set up on time. But because Jabra PanaCast 50 Video Bar System has an easy-to-use PanaCast Control touchscreen tablet to manage everything, your teams can simply walk into their next meeting and instantly get going - directly joining, sharing content, and ending meetings with a simple tap.

Additional meeting flexibility with 'Bring Your Own Device' mode

Join meetings on other platforms from our own laptop easily.

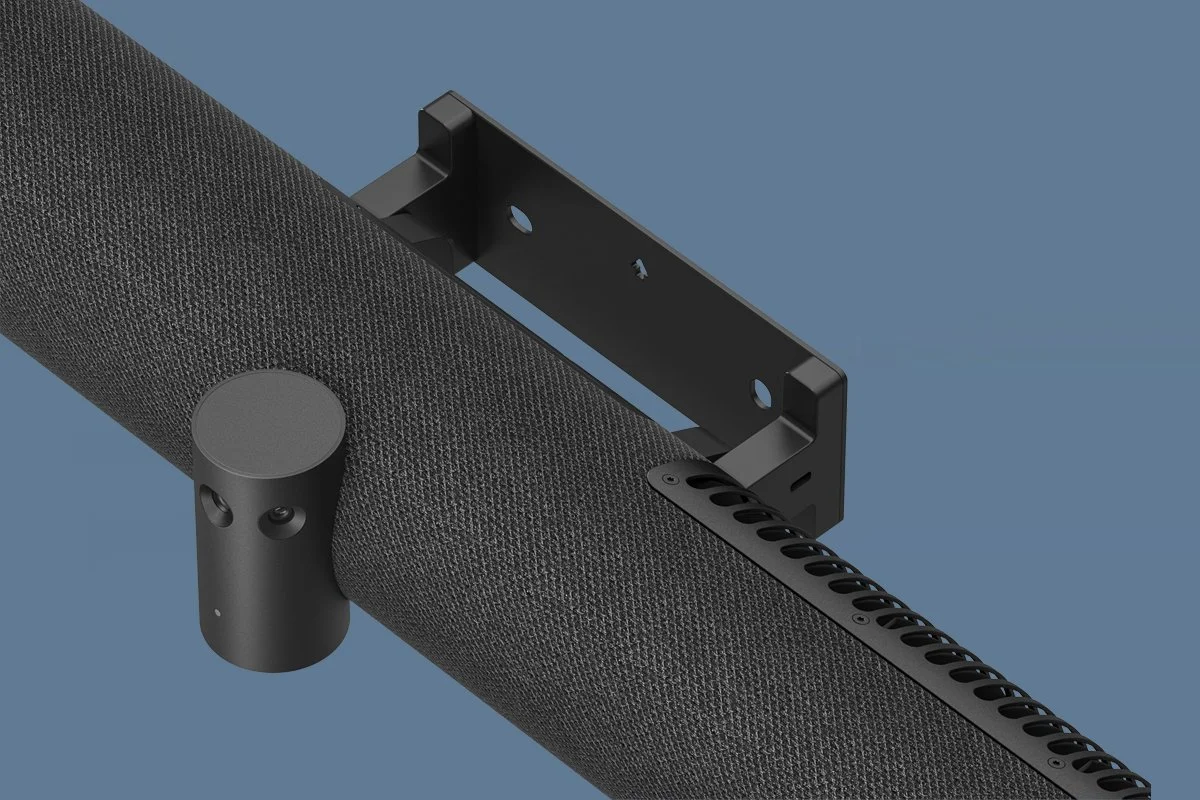

SIMPLE INSTALLATION

Easy as 1, 2, 3

PanaCast 50 Video Bar System makes the most out of what you’ve already got going on, with an easy-to-install design that fits neatly into your existing setup. Its streamlined shape comes with three different mounting options to suit every room. Choose from wall mount, table stand, or screen mount (VESA)*, with clear-to-follow instructions. And with a single cable to connect and power the PanaCast Control over ethernet, plus secure built-in cable management, your space will always look clean and clutter-free.

Because who doesn’t like keeping things simple?

*Table stand and screen mount sold separately

PEOPLE COUNT

Make it count

Our 180° camera detects when the room is occupied and when it's free, with anonymous real-time People Count delivered directly to your virtual meeting platform management system*, so you can see exactly how your meeting rooms are being used and switch up settings to better suit each space or deploy the latest product updates.

*Data available via your platform device management system. PanaCast 50 Video Bar system also works with Microsoft Teams Admin Center.

CERTIFIED FOR MICROSOFT TEAMS

Take your Teams-work to the next level

Being certified for Microsoft Teams Rooms means PanaCast 50 Video Bar System delivers a seamless Teams experience for your virtual meetings.

A single tap lets your teams join and end meetings instantly, and our 180° field-of-view works perfectly with Microsoft Teams Rooms technology, for a fully optimized room view that helps everyone feel more closely connected to what’s happening in the meeting.

Configuring and managing devices is easier too, with the Microsoft Teams Admin Center enabling fast feature and security updates, alongside simple remote admin access for stress-free deployment and oversight.

Making everything - from client pitches to essential debriefs (aka team gossip time) - ultra-smooth and simple.

Turn up the Teams-work, with PanaCast 50 Video Bar System.

Intelligent Experiences

Technical specifications

  • abra PanaCast 50 Video Bar System

    PanaCast 50 VBS Base Unit, power supply, wall mount, Privacy cover with sensor, Cable compartment cover and tool, Jabra PanaCast Control, PoE Power Injector, 1 x Ethernet cable 1.83m/6ft, 2 x Ethernet cable 4.57m/15ft, 1 x HDMI cable 1.83m/6ft, 2 x regional power cable

    • Number of cameras

      3

    • Type of camera

      Panoramic multi-camera array

    • Camera resolution

      Up to 3 x >4K (3 x 13 megapixels)

    • Zoom

      Up to 6x lossless digital zoom

    • Field of view

      Horizontal: 180°, Vertical: 54°

    • Intelligent Zoom

      Yes

    • Dynamic Composition

      Yes.

    • Virtual Director

      Yes

    • Vivid HDR

      Yes

    • Content sharing

      Apple Airplay (only supported by Zoom), HDMI input, Microsoft Teams- Cast (only supported by Teams)

    • Supported display resolution

      Supports up to 4K, Touch Display Compatible

    • Video input

      1 x HDMI

    • Speakers

      2 x 2" (50mm) woofers, 2 x 3/4" (20mm) tweeters

    • Speaker frequency range

      80Hz - 20kHz

    • Number of speakers

      4

    • Automatic Speaker Detection

      Yes

    • Microphone type

      8 microphone beamforming array - certified for rooms up to 4.5m x 6m

    • Number of microphones

      8

    • Microphone sensitivity

      -37dBFS

    • Microphone frequency range

      100Hz - 16000Hz

    • Compatible software and apps

      Support for native 3rd party applications, including Microsoft Teams Room for Android and Zoom Room, cloud service providers including Microsoft Teams Admin Center and Zoom Device Management, Jabra WebConsole for remote device management via HTTPs

    • Integrated People Count

      Yes

    • Appliance mode

      Yes

    • Digital pan/tilt/zoom

      Yes

    • Manual Pan-Tilt-Zoom (PTZ)

      Yes

    • One touch meeting join

      Yes

    • Camera privacy cover

      Yes

    • Interfaces

      UUSB-A, USB-C, Ethernet (RJ45), HDMI, Wi-Fi*

    • Bluetooth® version

      5.1

    • Supported USB versions

      USB 2.0, USB 3.0

    • Internet Protocol (IP)

      IPv4

    • Ethernet

      10/100/1000 Mbps

    • Auto-MDIX

      Yes

    • Media encryption

      Provided by VaaS Partner

    • Access management

      Admin menus, Web interface, Local account, VaaS Admin Portals including MS Teams Admin Center and Zoom Device Management

    • Security management

      Remote log in via Web Console and VaaS Admin Portal

    • Authenticated access to Admin setting, Web Console Local

      Yes

    • Lockdown with secureboot, OS verified boot, Vendor lock

      Yes

    • Log retrieval via Web Console

      Yes

    • Microsoft and Zoom based Vaas account authentication

      Yes

      • Operating temperature

        5°C to 35°C | 41°F to 95°F

      • Storage temperature

        -20°C to 60°C | -4°F to 140°F

    • Packaging dimensions (WxHxD)

      785mm x 189mm x 183mm | 30.9in x 7.4in x 7.2in

    • Main unit dimensions (WxHxD)

      730mm x 77mm x 146mm | 28.8in x 3.1in x 5.8in

    • Main unit weight (base unit)

      2259g | 79.7oz

    • Package weight

      6094.7g | 215oz

    • Warranty

      2 years

    • Onboard AI

      Yes

    • Cable management

      Yes

    • Kensington lock compatible

      Yes

    • Operating voltage

      100-240V, 12V, 5A

    • LED features and functions

      Answer/end call, Firmware update status, Mute/unmute, Power indicator

    • Certifications and compliance

      Microsoft Teams Rooms, Zoom Rooms
