Jabra video solutions

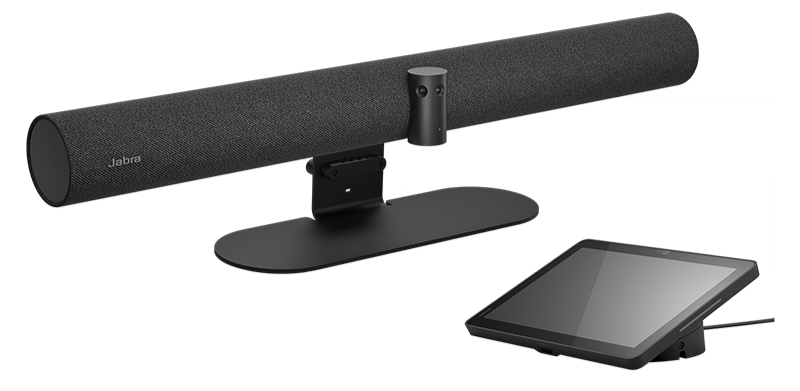

PanaCast 55 VBS

Contact sales

Complete 180° video solution for medium rooms

Why you'll love Jabra PanaCast 55 VBS

Maximize your meeting space

  • A 180° field of view and 4K panoramic video ensure everyone is seen, even close to the screen or against the wall.

Outstanding audio quality

  • An array of 8 beamforming, noise‑cancelling microphones and 4 powerful speakers delivers clear, room‑filling sound.

Audio flexes with your needs

  • Add the PanaCast SpeakerMic to extend audio to the back of the room, with seamless sound mixing and flexible mounting options.

Natural, AI-powered meeting experiences

  • Dynamic Composition, Virtual Director, Intelligent Zoom, and Intelligent Meeting Space keep participants in frame and focused.

Quick, scalable installation

  • From box to meeting in minutes with in‑box provisioning, multiple mounting options, and support for permanent BYOD mode.

Secure and easy to manage

  • Built on MDEP for secure, future‑ready performance, and designed to work seamlessly with Microsoft Teams and Zoom.

Technical specifications

    • Box contents

      PanaCast 55 VBS video bar • power supply • wall mount • Jabra Control IP • Privacy cover with sensor • Cable compartment cover and tool • 1 x HDMI cable 1.83m/6ft • 1 x regional power cable

    • Packaging dimensions (WxHxD)

      1065 x 175 x 210 mm | 41.9 x 6.9 x 8.3 in

    • Main unit dimensions (WxHxD)

      730 x 77 x 146 mm | 28.8 x 3.1 x 5.8 in

    • Main unit weight (base unit)

      2259 g | 79.7 oz

    • Package weight

      5760.5 g | 203.2 oz

    • Warranty

      2 years

    • Onboard AI

      Yes

    • Cable management

      Yes

    • Kensington lock compatible

      Yes

    • Operating voltage

      100-240V, 12V, 5A

    • Power Adapter

      AC 100-240V, Output DC 12V 5A

    • LED features and functions

      Answer/end call, Firmware update status, Mute/unmute, Power indicator

    • Video output

      2 x HDMI

    • Display resolution

      Supports up to 4K, Touch Display Compatible

    • Content sharing

      Apple Airplay (only supported by Zoom), HDMI input, Microsoft Teams-Cast (only supported by Teams)

    • Number of cameras

      3

    • Type of camera

      Panoramic multi-camera array

    • Camera resolution

      Up to 3840 x 1080 px

    • Zoom

      Up to 6x lossless digital zoom

    • Field of view

      Horizontal: 180°, Vertical: 54°

    • Intelligent Zoom

      Yes

    • Intelligent Meeting Space

      Yes

    • Multi-stream Dynamic Composition

      Yes

    • Dynamic Composition

      Yes

    • Virtual Director

      Yes

    • Vivid HDR

      Yes

    • Support secondary external USB camera

      Yes

    • Supported number of SpeakerMics

      1

    • Audio coverage

      Up to 7 m

    • Audio coverage (PanaCast 55 VBS with PanaCast SpeakerMic)

      Up to 11 m

    • Speakers

      2 x 2" (50mm) woofers, 2 x 3/4" (20mm) tweeters

    • Speaker frequency range

      80Hz - 20000Hz

    • Number of speakers

      4

    • Automatic Speaker Detection

      Yes

    • Noise Reduction Echo Cancellation

      Yes

    • Non-Speech Noise Suppression

      Yes

    • Woofer driver

      2 inches, outer diameter 61mm; Sensitivity: 79dB ±2dB @ 1 Watt, 1 meter; Rated Power: 5 Watts; Impedance: 4 Ohms

    • Mid-Range driver

      0.6 inches, outer diameter 33.2mm; Sensitivity: 80.5dB ±2dB @ 1 Watt, 1 meter; Rated Power: 5 Watts; Impedance: 4 Ohms

    • Microphone type

      8 microphone beamforming array - certified for rooms up to 4.5m x 6m

    • Number of microphones

      8

    • Microphone sensitivity

      -37dBFS

    • Microphone frequency range

      100Hz - 16000Hz

    • Aux-Out

      Yes

    • Media encryption

      Provided by VaaS Partner

    • Access management

      Jabra+; Admin menus; Jabra Web Console; Local account; VaaS Admin Portals including MS Teams Admin Center and Zoom Device Management

    • Security management

      Remote log in via Jabra+, Jabra Web Console and VaaS Admin Portal

    • Authenticated access to Admin settings, Jabra Web Console, Jabra+

      Yes

    • Lockdown with secureboot, OS verified boot, Vendor lock

      Yes

    • Log retrieval via Jabra Web Console

      Yes

    • Microsoft and Zoom based VaaS account authentication

      Yes

    • Interfaces

      Ethernet (RJ45), HDMI, Wi-Fi (802.11a/b/g/n/ac), 1 x USB-A, 2 x USB-C

    • Bluetooth® version

      5.1

    • Supported USB versions

      USB 2.0, USB 3.0

    • Internet Protocol (IP)

      IPv4, IPv6

    • Ethernet

      RJ45

    • Auto-MDIX

      Yes

    • Proxy support

      HTTPS

    • Support DHCP

      Yes

    • Support Static IP Address

      Yes

    • Compatible software and/or apps

      Jabra+; Jabra Web Console for remote device management via HTTPS; Support for native 3rd party applications, including Microsoft Teams Room for Android and Zoom Rooms; Cloud service providers including Microsoft Teams Admin Center and Zoom Device Management

    • Integrated People Count

      Yes

    • Appliance mode

      Yes

    • BYOD mode

      Yes

    • Digital pan/tilt/zoom

      Yes

    • Manual Pan-Tilt-Zoom (PTZ)

      Yes

    • One touch meeting join

      Yes

    • Camera privacy cover

      Yes

    • Operating temperature

      5°C to 35°C | 41°F to 95°F

    • Operating humidity

      15% to 80%

    • Storage temperature

      -20°C to 60°C | -4°F to 140°F

    • Maximum altitude

      4876.8m | 16000ft

    • Proximity sensor

      Yes

    • Temperature sensor

      Yes

    • Humidity sensor

      Yes

    • CO2 sensor

      Yes

    • TVOCs sensor

      Yes

    • Main unit dimensions (WxHxD)

      248 x 85 x 156 mm | 9.8 x 3.4 x 6.2 in

    • Main unit weight

      958g | 33.8oz

    • Display size

      10.1″

    • Display orientation

      Landscape

    • Display resolution

      1920 x 1200

    • PoE power injector

      Yes

    • Power over ethernet (PoE)

      IEEE 802.3af

    • Kensington lock compatible

      Yes
