Rally Board 65

Rally Board 65 simplifies video conferencing with an extremely easy-to-deploy, all-in-one collaboration device that combines powerful audio and video with a 65-inch touchscreen display.

Contact Us

Introducing Rally Board 65

Learn how Rally Board 65 is purpose-built to provide intelligent video and audio for meeting rooms, open spaces, and satellite offices.

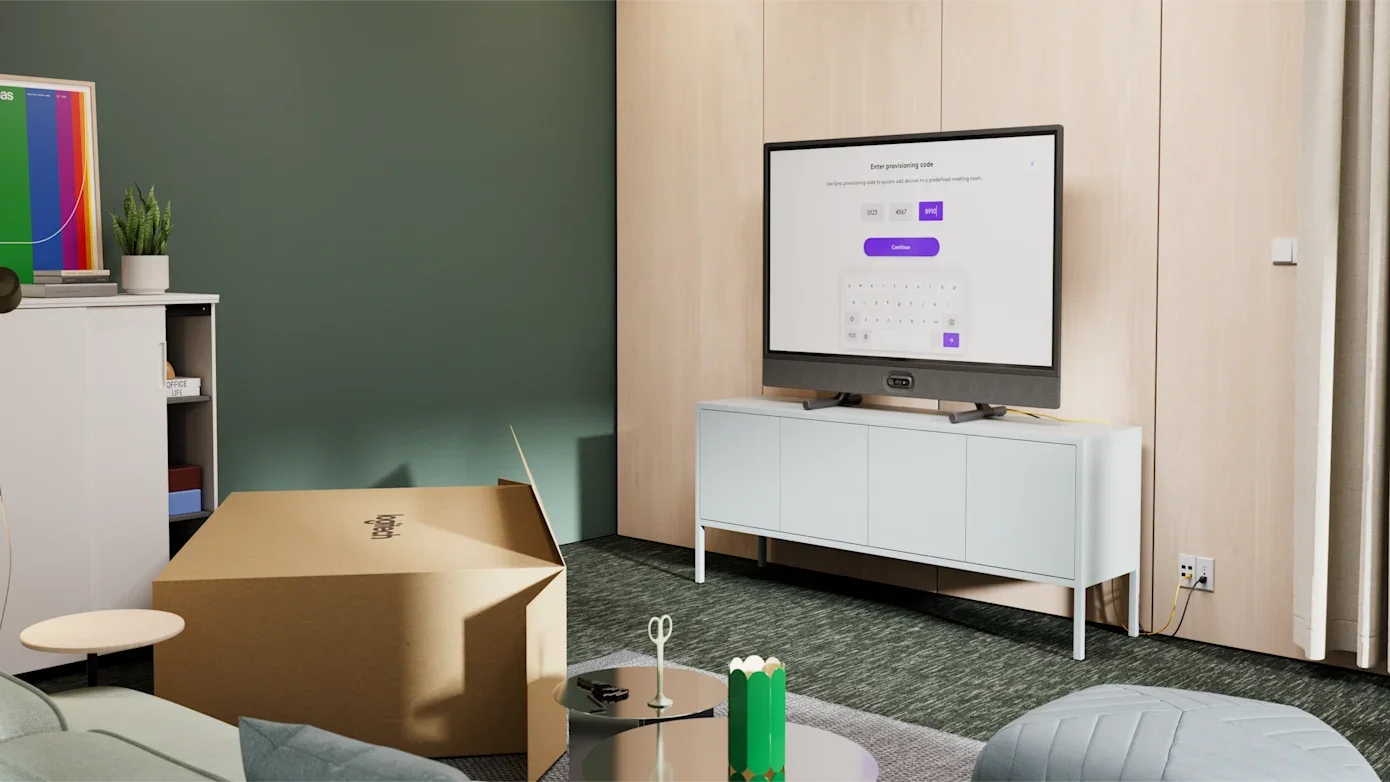

READY IN NO TIME

Set up right out of the box in just a few steps and minimize the need for onsite IT support. Included mounts and remote configuration mean you can get Rally Board 65 up and running in minutes.

Everyone is clearly seen and heard

Make sure everyone is seen and heard in meeting rooms and open spaces. AI-driven video and audio technologies — RightSight 2 and RightSound 2 — ensure optimal framing and clear sound for every participant..

DEPTH BLUR

Provides clear focus and helps eliminate distractions by using a depth-mapping sensor to distinguish between in-focus and out-of-focus areas, delivering a more natural depth effect compared to standard background blur settings*.

Three ways to mount

CREDENZA

Mount Rally Board 65 on a table or credenza with included legs.

WALL

Easily mount Rally Board 65 on a wall with a standard VESA mount.

CART

Mount Rally Board 65 on a cart and have the flexibility to move it anywhere it's needed.

EXCEPTIONALLY SHARP VIDEO

Capture exceptional video quality no matter the space, thanks to the one-inch image sensor and custom-designed lens that enables a wide 115° field of view.

DESIGNED WITH PRIVACY IN MIND

Feel secure using built-in privacy control — an automatic shutter opens and closes with each meeting, while a status light clearly indicates when the camera and mic are active.

TOUCH DISPLAY WITH TWO STYLUSES

Make virtual collaboration easier with Rally Board 65. The 4K Ultra HD, multi-touch display offers clear, vivid visuals for a more engaging meeting experience. Plus, whiteboarding is made easy with two ready-to-use styluses — no pairing, charging, or batteries required.

CLEAR AND CRISP AUDIO

Enjoy crystal-clear conversations with Rally Board 65, designed to deliver exceptional audio quality in any space. A powerful speaker system, optimized for open spaces, ensures that everyone can hear, while a far-reaching microphone array with AI-enabled algorithms filters unwanted noises and ensures everyone can be heard.

Technical Specification

Part Number
- Graphite Rally Board 65 : 960-001697
- Off-White Rally Board 65 : 960-001729
- Graphite Rally Board 65 and Cart : 991-000561
- Off-White Rally Board 65 and Cart : 991-000562
Dimensions
Rally Board 65 standalone
- Width: 59.05 in (1500 mm)
- Height: 38.94 in (989 mm)
- Depth: 2.99 in (76 mm)
- Weight: 101 lb (46 kg)
- VESA Standard MIS F: 15.75 x 15.75 in (400x 400 mm) and 15.75 x 7.87 in (400 x 200 mm)
Rally Board 65 with included table stand
- Width: 59.05 in (1500 mm)
- Height: 41.38 in (1051 mm)
- Depth: 15.55 in (395 mm)
- Weight: 110 lb (50 kg)
Cart assembled with Rally Board 65 in camera-high orientation
- Height: 77.28 in (1963 mm)
- Width: 59.05 in (1500 mm)
- Depth: 31.97 in (812 mm) 1Center point of front caster to rear caster
- Center-of-lens height: 73.89 in (1876.8 mm)
Cart assembled with Rally Board 65 in camera-low orientation
- Height: 77.28 in (1963 mm)
- Width: 59.05 in (1500 mm)
- Depth: 31.97 in (812 mm) 2Center point of front caster to rear caster
- Center-of-lens height: 39.39 in (1000.5 mm)
Cart assembled with Rally Board 65 in mid-flip orientation
- Height: 77.28 in (1963 mm)
- Width: 59.05 in (1500 mm)
- Depth: 38.94 in (989 mm)
Cart weight: 108 lb (49 kg) 3Cart only, without Rally Board 65
Assembled weight: 210 lb (95 kg)
Caster type: Twin wheel four-inch locking casters
Technical Specifications
General
- Built-in Components: Front microphone array, digital PTZ camera, dual full-range ported speakers, dual tweeters, ultrasonic emitter, cable management and retention system, integrated motorized privacy shutter, depth mapping camera, radar motion sensing, and environmental sensors
- Support for 2nd display, up to UHD 4K60 (3840 x 2160)
- Automatic motorized privacy shutter
- HDMI ingest at up to 4K60 (3840 x 2160) resolution
- Network Protocol Support: IPv4, IPv6
- Proxy support: IP-based proxy, FQDN-based proxy, proxy using PAC file
System Requirements
- 100 - 240v
- Internet Connection: Wired or wireless
- Room solution software license (not included)
Display
- 65-inch LCD screen
- IR-based touch with 20 points of touch
- UHD 4K (3840 x 2160) screen resolution
- 16:9 aspect ratio
- Anti-glare coating
- Anti-fingerprint coating
- Contrast ratio: 5000:1 Typical
- Brightness: 400 nits Typical
Camera
- Main camera
  - Imaging sensor: 1-inch, 20.3MP
  - Resolution: 4K, 1440p, 1080p, 900p, 720p, and SD at 30fps
  - Automatic motorized tilt based on device orientation
  - Zoom: 4X HD digital zoom
  - Distortion-corrected field of view
    Diagonal: 115.7°
    Horizontal: 103.3°
    Vertical: 60.7°
- Depth mapping camera
  - Diagonal Field of View: 145°
  - Horizontal Field of View: 121°
Speakers
- Dual full-range ported speakers
  - Driver: 0.08 x 2.76in (2x 70 mm)
  - Sensitivity: 89 dB SPL at 1W/0.5 m
  - Rated Power: 8W
  - THD at 1W, 1 kHz <2%
- Dual high-frequency tweeters
  - Driver: 0.08 x 1.22in (2x 31 mm)
  - Sensitivity: 93 dB SPL at 1W/0.5 m
  - Rated Power: 8W
  - THD at 1W, 4 kHz < 2%
Microphones
- Front microphone array
  - Frequency Response: 90Hz-16KHz
  - Sensitivity: -36 dB FS +/-1 dB @ 1 Pa
  - Microphone data rate output: 48KHz
  - Pickup Range: Up to 23 ft (7m)
  - RightSound 2
    AI Speech Enhancement removes transient and stationary noise
    Beamforming with AI Beam Selection
    AI Speech Detection
    AI Direction of Speech
    Acoustic Echo Cancellation and Residual Echo Suppression
Sensors
- Temperature
- Humidity
- tVOC (Total volatile organic compounds)
- Carbon dioxide
- PM2.5
- PM10
- Radar
- Ambient light
- For the latest information on certification and compatibility, see www.logitech.com/support/vc-certifications
Interfaces
- 1 x HDMI Out: up to 4K60
- 1 x HDMI In: up to 4K60
- USB-A: 3 x USB 3.1
- USB-C: 1 x Type C USB 3.1 with DP Alt Mode
- Line-Out: 0.14 in (3.5 mm) line-level audio output
- Network: 0.04oz (1 g)0/100/1G Ethernet
- Wi-Fi: 802.11a/b/g/n/ac/ax
- Bluetooth: Bluetooth Low Energy
- EXT: RJ45 reserved for future use
Power and Cables
- Power supply: Built-in auto-sensing 100-240V
- AC Cable: 9.84 ft (3 m)
Environmental
- Operating temperature: 0-35 °C
- Storage temperature: -40-60 °C
- Humidity: 10-95%
Security
- File-based encryption: AES-256
- Data Encryption: Symmetric Keys, PKI
- Device Identity: Protected by device attestation
- Device Access: Authenticated using API
- Key Protection: Arm TrustZone, RPMB
Accessories
- Rally Board 65 Cart
- Active USB Cable
Warranty Information
2-Year Limited Hardware Warranty. 1-Year and 3-Year Extended Warranty available for purchase.
For the latest information on certification and compatibility, see www.logitech.com/support/vc-certifications.
- Rally Board Package: Main device, Tabletop legs (2), Power cord, Stylus (2), VESA 100 PC mount, Cable hook, Assembly hardware and tools, Documentation
- Cart Package: Hub Assembly, Shelf Assembly, Rotation Arms (2), Legs with Casters (2), Logo Back Panels (2), Hub Covers (2), Leg Mounting Bolts (8), Shelf Mounting Bolts (4), Rotation Arm Mounting Bolts (12), Rotation Arm Keystone Bolts (2), H5 and H6 Hex Keys, Documentation
Find all the documentation we have available to get this product up and running quickly.
