e-Hub

Share Without Limits. Connect Without Cables.

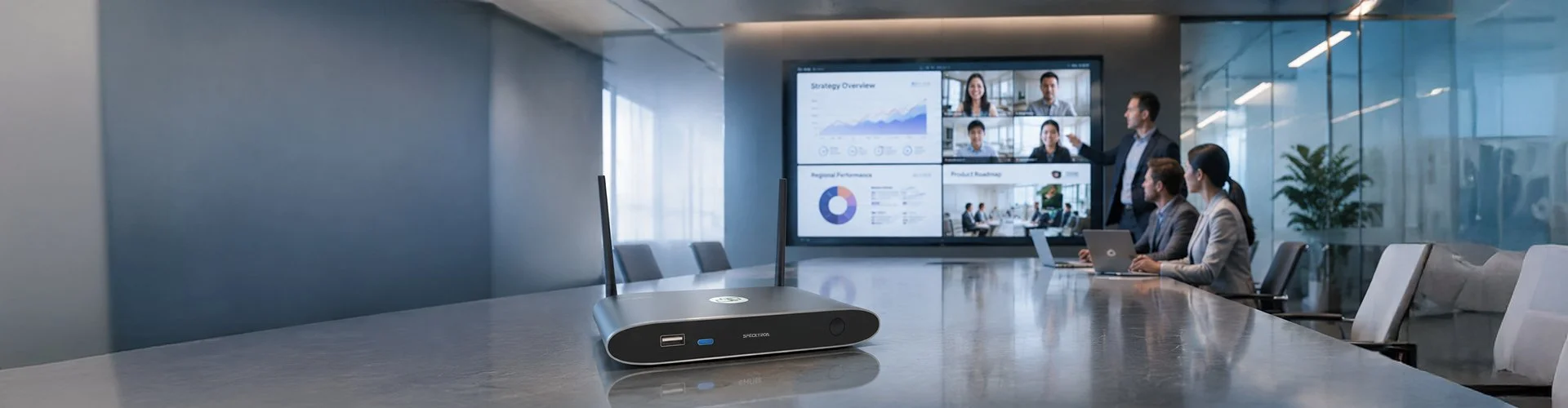

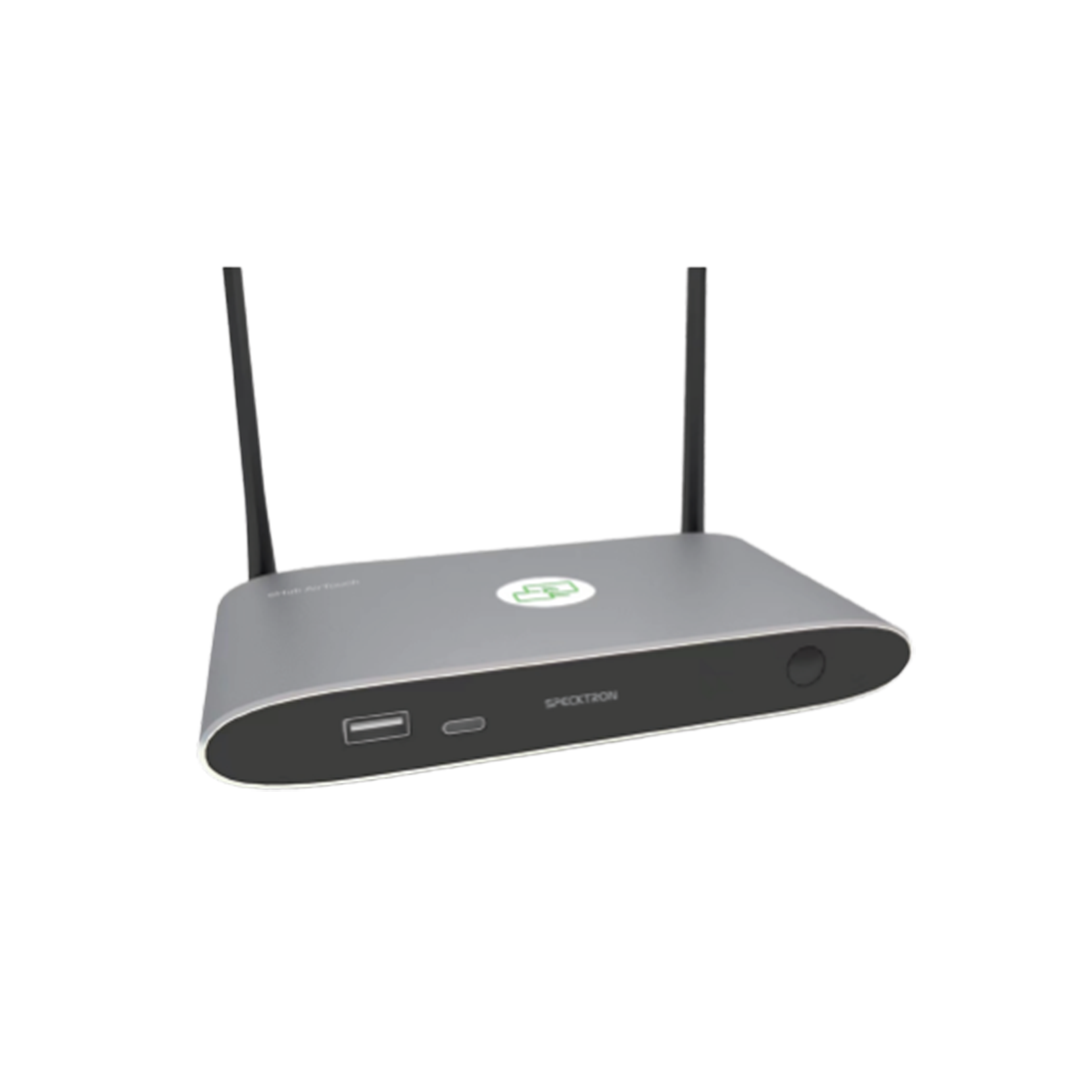

The Specktron eHub is a wireless presentation and collaboration solution that makes content sharing effortless, enabling fast, secure, cable-free collaboration across meeting rooms, classrooms, and shared workspaces.

   â—Ź  Wireless presentation and collaboration solution
   â—Ź  Support for AirPlay, Miracast, and Chromecast
   â—Ź  Fast, effortless content sharing
   â—Ź  Secure, cable-free connectivity
   â—Ź  Seamless collaboration across multiple devices
   â—Ź  Ideal for meeting rooms, classrooms and shared workspaces

Download Brochure
Download Brochure
Product Enquiry
Product Enquiry
  • AeroLift 100

Technical Specifications

  • Effortless Wireless Screen Sharing

    Share content wirelessly from laptops, tablets, and smartphones in Full HD clarity. Supports AirPlay, Miracast, Chromecast, and up to 4 simultaneous presenters.

    Wireless Reverse Touch Control

    Control your laptop or Mac directly from a compatible interactive display. Navigate, annotate, and present seamlessly from the screen.

    Enterprise-Grade Security

    Dual-network architecture with advanced encryption ensures secure and stable collaboration. Designed for safe use in corporate and education environments.

  • HDMI Output : 1 Ă— HDMI 19-pin Female Connector
    Video Output Resolution : 3840 Ă— 2160 @ 60Hz, 3840 Ă— 2160 @ 30Hz, 1920 Ă— 1080 @ 60Hz
    Format Compliance : HDMI 1.4 / HDMI 2.0
    Wireless Video Capacity : 1080p @ <60Hz (AirPlay, WirelessMedia App, Show-Me Button)
    HDCP : HDCP 1.4 / HDCP 2.2
    Audio Output : 1 Ă— 3.5mm Audio Jack
    LAN Ports : 2 Ă— RJ45 (1000 Mbps / 100 Mbps)
    USB Interface : USB 3.0 Ă—1, USB 2.0 Ă—1, USB Type-C Ă—1
    Audio Input : AirPlay, Windows, Mac
    Control Interface : 3.5mm Phoenix Terminal, RS232 Interface
    On-Screen Windows : 4 Main Windows + 14 Thumbnail Windows
    Simultaneous Connections : Up to 16 Devices
    Video Frame Rate : 20–60 FPS
    Latency : <100 ms (Min 20 ms)
    Wireless Standard : Wi-Fi IEEE 802.11 a/g/n/ac
    Frequency Band : 2.4 GHz & 5 GHz
    Wi-Fi Antenna : MIMO 2 Ă— 2
    Dimensions : 165 Ă— 95 Ă— 24.5 mm (165 Ă— 125 Ă— 24.5 mm with antenna)
    Weight : 200 g (0.4 lbs)
    Operating Temperature : -20°C to 60°C
    Humidity : 20%–90% (Non-condensing)
    Power Supply : 12V DC / PoE (IEEE 802.3af)
    Power Consumption : 10W (Max)

  • e-Hub
