Logi Dock Flex

A managed docking station that enables easy desk booking experiences.

Download Datasheet
Enquire Now

Home > Logitech > Logi Dock Flex


Product Specifications

  • Dimensions

    Height: 5.56 in (141.2 mm)

    Width: 7.91 in (201 mm)

    Depth: 6.96 in (176.9 mm)

    Weight: 2.2 lbs (1.0 kg)

    Technical Specifications

    COMPATIBILITY AND CERTIFICATIONS

    See www.logitech.com/support/logi-dock-flex-compatibility for the latest certification and compatibility updates.

    Logitech CollabOS platform

    Logitech Sync management platform

    PORTS

    Front (User-Facing)

    2x USB-C (2x7.5w)

    1x USB-A (7.5w)

    Rear (IT-Managed)

    1x USB-C (7.5w)

    2x USB-A (2x7.5w)

    1 x HDMI v. 2.0 (Support up to 4K, i.e. 3840 x 2160 @60Hz HDR)

    1 x DisplayPort 1.4 (Support up to 4K, i.e. 3840 x 2160 @60Hz HDR)

    1x RJ45 Ethernet 10/100/1000

    DC Power Connection

    1x USB-C laptop connection, up to 100 watt charging

    See www.logitech.com/support/logi-dock-flex-compatibility for the latest certification and compatibility updates.

    Screen

    Size: 8.00 in (203.2 mm) diagonal

    IPS (In-Plane Switching)

    LCD Panel with LED Backlighting

    Resolution: 1280 x 800 resolution

    Touch: Capacitive, 5 points multi-touch

    Brightness: 300 nits

    Contrast: 800:1

    Anti Fingerprint: Oleophobic coating

    Viewing angle: 85 degrees (U/D/L/R)

    Position angle: 60 degrees

    APPLIANCE PORTS AND INTERFACES

    Ethernet: 10/100 Mbps (shared via internal two port Ethernet switch)

    WiFi: 802.11a/b/g/n/ac

    Bluetooth 5.0 (inactive, reserved for future use)

    Ambient light sensor

    General Specifications

    Managed docking station

    Advanced Cable Retention and Security

    Kensington Lock slot

    Environmental

    Operating Temperature: 0 to 40°C

    Operating Humidity: 10 to 90%

    Stored Temperature: -40 to 70°C

    Stored Humidity: 0 to 95%

    Security

    Full Disk Encryption: AES-128

    Data Encryption: Symmetric Keys, PKI

    Device Identity: Protected by device attestation

    Key Protection: Arm TrustZone, RPMP

    Device Security: Kensington Lock

    Warranty Information

    2-year limited hardware warranty. 1-Year or 3-Year Extended Warranty available for purchase

    Part Number

    939-002154

  • Windows 11, Windows 10

    macOS two most recent versions

    Available USB-C port 1For USB-C functionality, laptops must support USB Power Delivery 2.0 (or greater) for power delivery of up to 100W, USB 3.1 Gen 2 (or greater) for data transfer and DisplayPort Alt mode for video output.

    AC Power

    Latest version of Logitech Collab OS

  • Managed docking station

    Power supply + Regional AC cord

    1.5m USB-C Cable + magnetic dock

    Power Supply Bracket

A MULTI-PURPOSE DOCK

Logi Dock Flex is a managed docking station that enables easy and personalized desk booking for employees and simple device management for IT.

Key Features

  • DESK AVAILABILITY AT A GLANCE

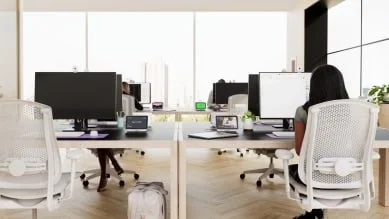

    DESK AVAILABILITY AT A GLANCE

    Employees never have to guess which desk is free, occupied, or in between. The 8” screen clearly indicates desk status at a glance.

  • BOOK SHARED DESKS WITH EASE

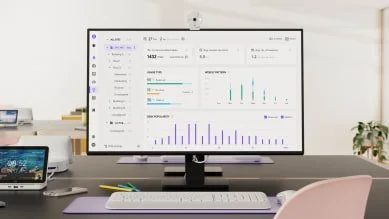

    BOOK SHARED DESKS WITH EASE

    Tap to book and claim the desk directly at the desk, whether pre-booked or adhoc.

  • MANAGE SPACES AND DEVICES WITH EASE

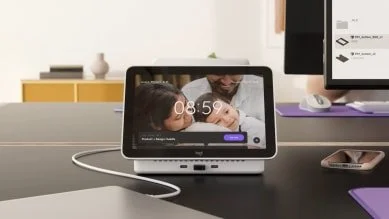

    MANAGE SPACES AND DEVICES WITH EASE

    Ensure that desks are fully operational at all times from any location, using Logitech Sync.
