Logi Dock Flex
Enable personalized desk booking with a managed docking station.

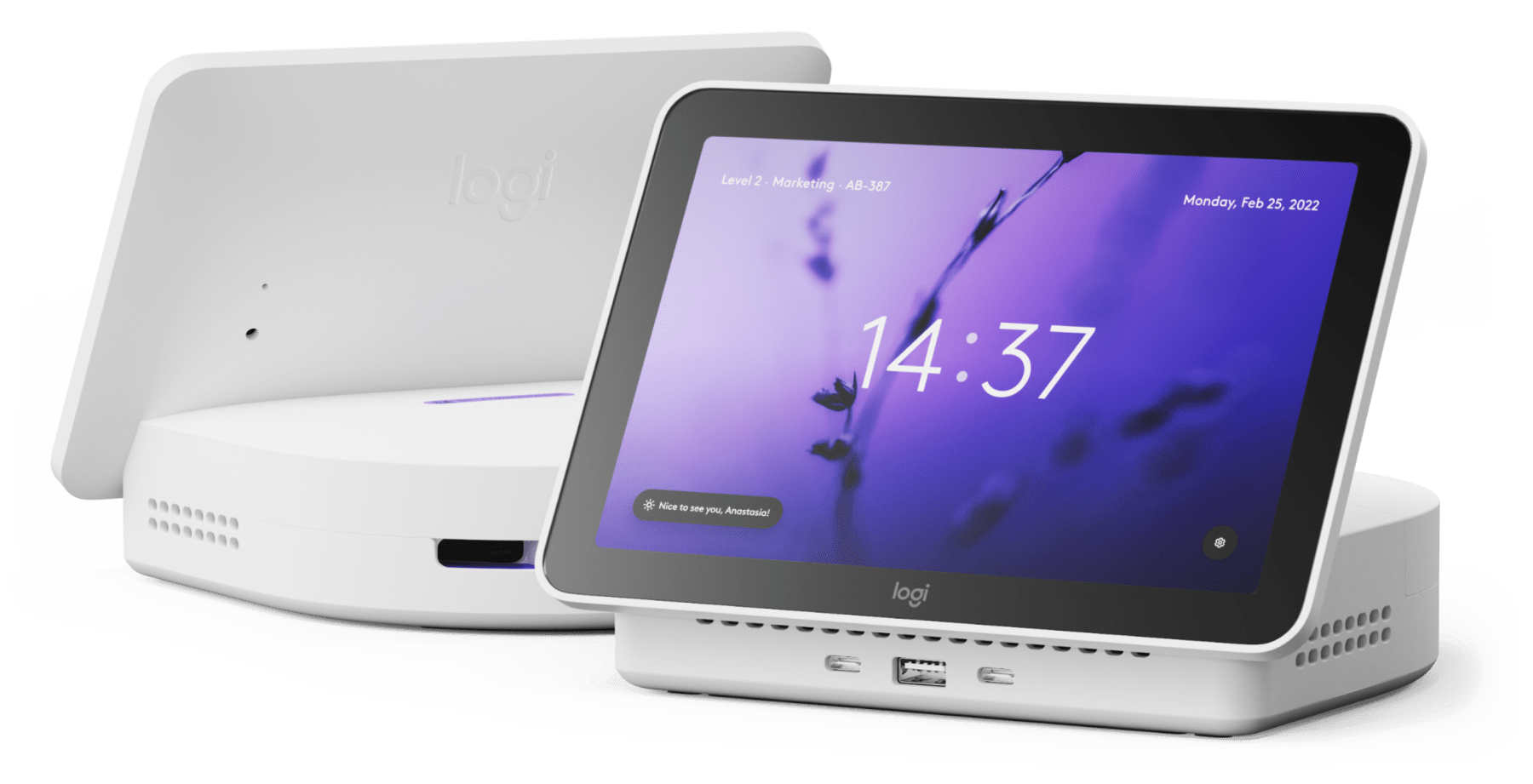

A MULTI-PURPOSE DOCK
Logi Dock Flex is a managed docking station that enables easy and personalized desk booking for employees and simple device management for IT.
Home > Logitech > Logi Dock Flex Managed
AUTOMATIC CHECK-IN
Logi Dock Flex is a managed docking station that enables easy and personalized desk booking for employees and simple device management for IT.

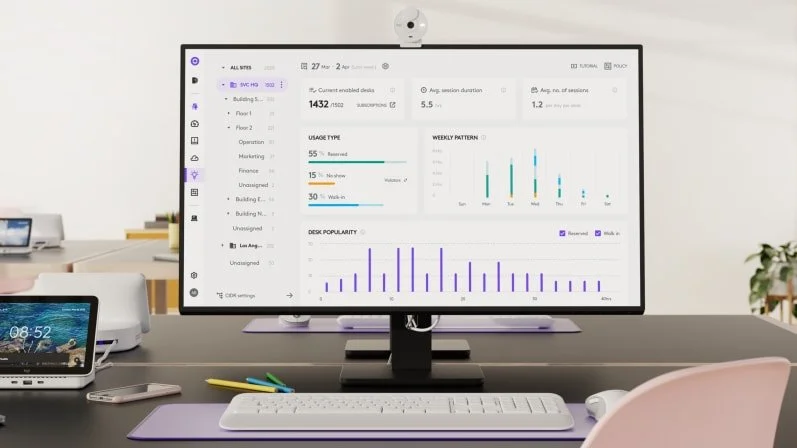

GATHER ACCURATE DATA
Logi Dock Flex tracks when employees plug in, so you can accurately keep track of office usage for better space planning.*
PROMOTE ONSITE WORK
Days in the office are more productive and enjoyable when we spend them with our favorite coworkers.
Product Specifications
Dimensions
Height: 141.2 mm
Width: 201 mm
Depth: 176.9 mm
Weight: 1.0 kg
Technical Specifications
COMPATIBILITY AND CERTIFICATIONS
See www.logitech.com/support/logi-dock-flex-compatibility for the latest certification and compatibility updates.
Logitech CollabOS platform
Logitech Sync management platform
PORTS
Front (User-Facing)
2x USB-C (2x7.5w)
1x USB-A (7.5w)
Rear (IT-Managed)
1x USB-C (7.5w)
2x USB-A (2x7.5w)
1 x HDMI v. 2.0 (Support up to 4K, i.e. 3840 x 2160 @60Hz HDR)
1 x DisplayPort 1.4 (Support up to 4K, i.e. 3840 x 2160 @60Hz HDR)
1x RJ45 Ethernet 10/100/1000
DC Power Connection
1x USB-C laptop connection, up to 100 watt charging
See www.logitech.com/support/logi-dock-flex-compatibility for the latest certification and compatibility updates.
Screen
Size: 203.2 mm diagonal
IPS (In-Plane Switching)
LCD Panel with LED Backlighting
Resolution: 1280 x 800 resolution
Touch: Capacitive, 5 points multi-touch
Brightness: 300 nits
Contrast: 800:1
Anti Fingerprint: Oleophobic coating
Viewing angle: 85 degrees (U/D/L/R)
Position angle: 60 degrees
APPLIANCE PORTS AND INTERFACES
Ethernet: 10/100 Mbps (shared via internal two port Ethernet switch)
WiFi: 802.11a/b/g/n/ac
Bluetooth 5.0 (inactive, reserved for future use)
Ambient light sensor
General Specifications
Managed docking station
Advanced Cable Retention and Security
Kensington Lock slot
Environmental
Operating Temperature: 0 to 40°C
Operating Humidity: 10 to 90%
Stored Temperature: -40 to 70°C
Stored Humidity: 0 to 95%
Security
Full Disk Encryption: AES-128
Data Encryption: Symmetric Keys, PKI
Device Identity: Protected by device attestation
Key Protection: Arm TrustZone, RPMP
Device Security: Kensington Lock
Warranty Information
2-year limited hardware warranty. 1-Year or 3-Year Extended Warranty available for purchase
Part Number
939-002180
