Overview

MeetUp 2 is designed to simplify and enhance the meeting experience for small meeting rooms. With advanced AI-enabled audio and video features, flexible deployment options, and easy remote management, MeetUp 2 transforms any small meeting space into a highly productive environment.

Upgrade your small USB-based meeting rooms

Bring AI-based features into your small USB meeting rooms with Meetup 2. Compatible with popular video platforms such as Microsoft Teams, Zoom, and Google Meet, MeetUp 2 can function in USB mode with an in-room PC or when connected to a laptop in BYOD mode.

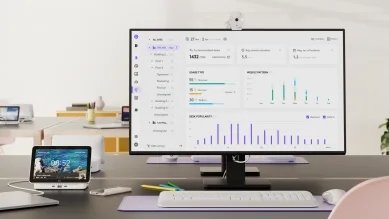

MeetUp 2 is easy to set up and easy to manage with Logitech Sync — monitor room status, deploy updates, and modify settings all from a single cloud-based app.

Key Features

  • AI-Enhanced Meetings

    AI-Enhanced Meetings

    RightSight 2: Automatically frames participants, offers Group View, Grid View, Speaker View, and Camera Zone to keep the focus on the meeting.

    RightSound 2: Auto-levels voices from varying distances, distinguishes voices from background noises like fans or keyboard clicks and eliminates echo and enhances voice clarity.

  • Simple and Flexible Deployments

    Simple and Flexible Deployments

    • Connect to a meeting room system or directly to a laptop for BYOD meetings.

    • Easy two-cable or single-cable setup with Logitech Active USB Cable.

    • Manage and set up with Logitech Sync for both deployments.

  • One Mount, Three Ways

    One Mount, Three Ways

    • Flexible placement options: attach to a display, table, or wall.

    • Built-in threaded insert for tripod compatibility.

    • Compatible with Microsoft Teams, Zoom, and Google Meet for a seamless meeting experience.

Sustainability:

  • Made with Recycled Plastic: Up to 62% certified post-consumer recycled plastic.

  • Responsible Packaging: FSC™-certified paper packaging supporting responsible forest management.

Product Specifications

Dimensions

  • Height: 2.9 in (73.3 mm)

  • Width: 18.5 in (469.2 mm)

  • Depth: 2.9 in (73 mm)

  • Weight: 3.97 lb (1.8 kg)

Technical Specifications

Overview

  • Built-in Components

  • 6 DMIC microphone array

  • Digital PTZ camera

  • 1 full range ported speaker

  • Cable management & retention system

  • Multi-mount

  • Logitech CollabOS platform

  • Logitech RightSight 2

  • Logitech RightSound 2

General Specifications

  • Enclosure: All-in-one enclosure

  • Device Management: Logitech Sync

  • Displays Supported: BYOD mode: 1; Dedicated computer mode: computer/application dependent

  • Display Resolution: 1080p

  • Network Protocol Support: IPv4, IPv6

  • Proxy Support: IP based Proxy, FQDN based Proxy, Proxy using PAC file

Camera

  • Digital pan: ±48° at 4x zoom

  • Digital Tilt: ±32° at 4x zoom

  • Zoom: 4X HD digital zoom

  • Diagonal Field of View: 120°

  • Horizontal Field of View: 113°

  • Vertical Field of View: 80°

  • Resolution: 4K

Speakers

  • Driver: 2.17 in (55 mm) with bass reflex enclosure and patented suspension design

  • Sensitivity: 83 dB SPL @1W +/-2dB @ 1 meter

  • Rated Power: 8W THD at 1W, 1kHz : <2%

  • Speaker Sampling Rate: 48KHz

  • Impedance: 4 Ohms

Microphones

  • Frequency Response: 90Hz – 16kHz

  • Sensitivity: -36dBFS +/-1 dB @ 1Pa

  • Microphone data rate output: 48 kHz

  • Pickup Range: Up to 23 ft (7m)

  • Beamforming Elements: Six omnidirectional digital MEMS microphones forming five adaptive acoustic broadside beams

  • Audio processing: AEC (Acoustic Echo Cancellation) VAD (Voice Activity Detector)

  • Noise suppression: AI based de-noising algorithm

Interfaces

  • HDMI Out: 1

  • HDMI In: 1

  • USB: 1 x Type C USB 3.1

  • Network: 10/100/1G Ethernet

  • WiFi: 802.11a/b/g/n/ac

  • Bluetooth: Bluetooth® Low Energy

Power and Cables

  • Power supply: Auto-sensing

  • Operating Voltage/Power: 100-240V, 19V, 2.1A

  • Power Supply Dimensions: 4.49 x 1.85in (114x 47 mm) x 32.3 mm

  • DC Cable: 9.84 ft (3 m)

  • USB C to USB C 3.0 Cable: 9.84 ft (3 m)

Environmental

  • Operating Temperature: 0 to 40°C

  • Storage Temperature: -25-70°C

  • Humidity: 10 to 90%

Security

  • File Based Encryption: AES-128

  • Data Encryption: Symmetric Keys, PKI

  • Device Identity: Protected by device attestation

  • Device Access: Authenticated using API

  • Key Protection: Arm TrustZone, RPMP

  • Physical Security: Kensington security slot

Warranty Information

  • 2-Year Limited Hardware Warranty

  • 1-Year and 3-Year Extended Warranty available for purchase

Part Number

  • 960-001691

Contact Us

Upgrade your small meeting rooms with MeetUp 2. Contact us today to learn more about how MeetUp 2 can enhance your meeting experience and simplify management.
