Logitech Scribe

Logitech Scribe

Whiteboard camera for video conferencing rooms

PURPOSE-BUILT FOR ROOM SOLUTIONS

Scribe integrates with leading video conferencing room solutions, including Microsoft Teams Rooms, Google Meet Rooms and Zoom Rooms. Simply join the meeting and start sharing.

Microsoft
Download Datasheet
Zoom
Enquire Now
Meet

Home > Logitech > Logitech Scribe

GET EVERYONE ON BOARD

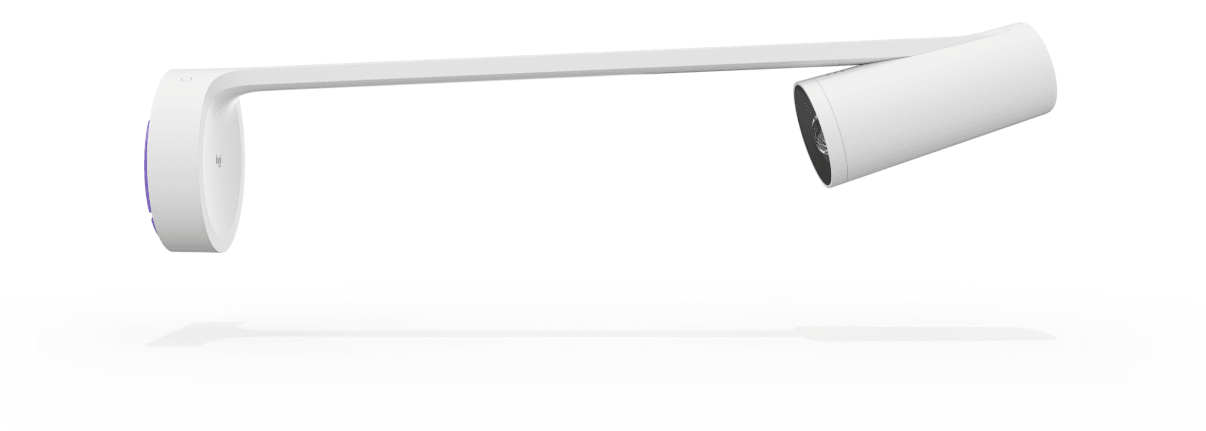

Effortlessly share whiteboards into video meetings with Logitech Scribe, an AI-powered whiteboard camera for Microsoft Teams® Rooms, Zoom Rooms™, Google Meet Rooms and other leading video conferencing services.

Simple to Use

Scribe’s wireless share button makes sharing whiteboards into video meetings quick and easy. You can also initiate sharing with your meeting room touch controller, like Logitech Tap.

Product Specifications

DIMENSIONS

Camera

  • Height: 5.87 in (149 mm)

  • Width: 4.69 in (119 mm)

  • Depth: 22.56 in (573 mm)

  • Weight: 2.43 lb (1.1 kg)

Share Button

  • Height: 0.50 in (12.7 mm)

  • Diameter: 2.83 in (71.8 mm)

  • Weight: 3.81 oz (108 g)

Power Injector

  • Height: 3.58 in (91 mm)

  • Width: 2.37 in (60.2 mm)

  • Depth: 1.43 in (36.3 mm)

Dongle Transceiver

  • Height: 0.89 in (22.5 mm)

  • Width: 1.22 in (31 mm)

  • Depth: 3.30 in (83.7 mm)

  • Cable length: 1.64 ft (500 mm)

Included Cabling (x2)

  • Length: 5 m (16.4 ft)

  • COMPATIBILITY

    Whiteboard

    • Maximum Whiteboard Dimensions

      • Height: 4 ft (1.2 m)

      • Width: 5.9 ft (1.8 m)

    Customer-Supplied Cabling

    • Cable Type: Cat5e or higher [up to 115.83 ft (35 meters) in total length]

  • TECHNICAL SPECIFICATIONS

    Certifications & Compatibility

    • Integrates with Microsoft Teams Rooms on Windows, Google Meet Rooms, and with Zoom Rooms as a whiteboard content camera.

    • See www.logitech.com/support/scribe-compatibility for pending and granted certifications and compatibility updates.

    • Compatible with virtually any video conferencing application as a USB-connected camera.

    Camera

    • Output Resolution: 1080p at 15 fps

    • Built-In AI: Broadcasts AI-enhanced image stream into video meetings

    Share Button

    • Power: 2 x CR2032 battery

    • Adhesive-backed mounting

    • Share button support may vary by video conferencing service provider.

    • See www.logitech.com/support/scribe-compatibility for latest information.

    Interfaces

    • Camera: Category Cable Port

    • Share Button: Bluetooth® Low Energy

    Power & Cables

    • Power supply: 100-240V auto-switching power supply with international adaptor set

    • Cable Type: Cat5e SF/UTP AWG26 or higher

    Environmental

    • Operating Temperature: 0 to 40°C

    • Storage Temperature: -40-70°C

    • Humidity: 10-95%

    Security

    • Full Disk Encryption: AES-128

    Device Management

    • Logitech Sync

  • PACKAGE CONTENTS

    • Camera

    • Share Button

    • Dongle Transceiver

    • 100-240v Power Supply with International Adaptor Set

    • 16.4 ft (5.0 m) Cat5e Cables x 2

    • Cable Clips x 2

    • Camera Installation Kit

    • Documentation

  • WARRANTY INFORMATION

    Standard: 2-year limited hardware warranty included.
    Extended: Additional one-year and three-year extended warranties available at the time of hardware purchase.
    Contact your reseller for availability.

  • PART NUMBER

    • 960-001332
