Rally Bar

Dimensions

Height: 6.46 in (164 mm)

Width: 2.99 ft (910 mm)

Depth: 5.14 in (130.5 mm)

Lens Depth: 1.13 in (28.8 mm)

Weight: 15.6 lbs (7.08 kg)

Technical Specifications

Certifications & Compatibility

• For the latest information on certifications and compatibility, visit www.logitech.com/support/vc-certifications

• Microsoft Teams Rooms on Android 1For medium sized rooms

• Microsoft Teams Rooms on Windows 2For medium sized rooms

General Specifications

• Built-in Components: 6 beamforming microphones, PTZ camera, 2 speakers, AI Viewfinder, cable management and retention system, table stand, Logitech CollabOS platform

• Enclosure: All-in-one enclosure with integrated table stand and patented speaker suspension system to eliminate vibration-induced camera shake and audio interference

• Device Management: Logitech Sync

• Displays Supported: 2

• Display Resolution: Up to 1080p

• Network Protocol Support: IPv4, IPv6

• Proxy Support: IP based Proxy, FQDN based Proxy, Proxy using PAC file

Camera

• Resolution: 4K, 1440p, 1080p, 900p, 720p, and SD at 30fps

• Pan: Motorized ±25°

• Tilt: Motorized ±15°

• Zoom: 15X HD zoom (5X optical and 3X digital)

• Diagonal Field of View: 90°

• Horizontal Field of View: 82.1°

• Vertical Field of View: 52.2°

• Total Room Coverage (field of view + pan and tilt): 132.1° Horizontal x 82.2° Vertical

Speakers

• Drivers: 2x 70 mm / 2.7 in

• Sensitivity: 92dB SPL @1W, 99dB SPL @8.0W, both +/-2dB at ½ meter

• Rated Power: 8W

• THD: 1kHz < 2% at 1W

• Speaker Sampling Rate: 48 kHz

• Impedance: 4 Ohms

Microphones

• Frequency Response: 90Hz – 16kHz

• Sensitivity: >-36dBFS +/-1 dB @ 1Pa

• Microphone data rate output: 48KHz

• Pickup Range: Up to 23 ft (7m)

• Beamforming Elements: 6 omnidirectional digital MEMS microphones forming 5 adaptive acoustic broadside beams

• Audio processing: AEC (Acoustic Echo Cancellation), VAD (Voice Activity Detector)

• Noise suppression: AI based de-noising algorithm

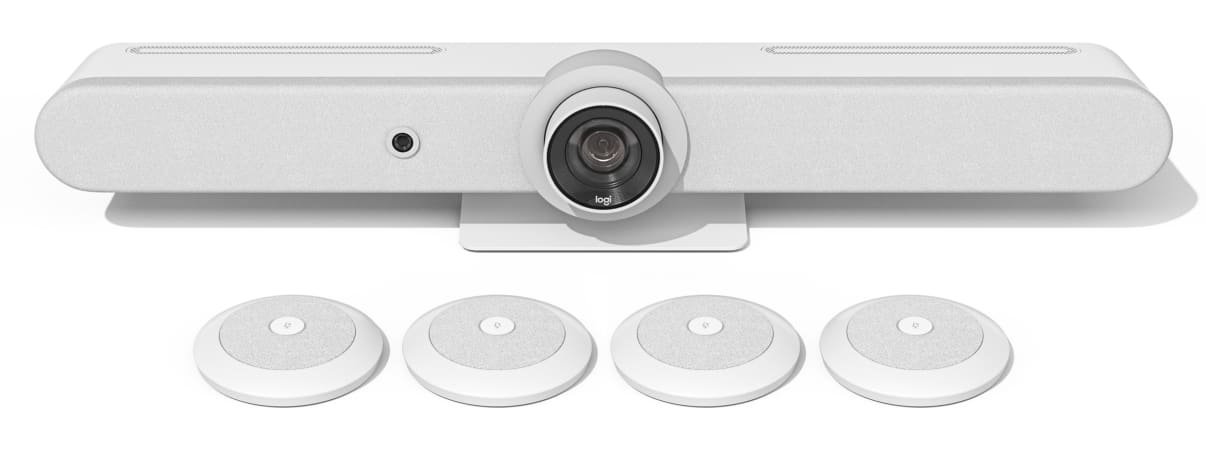

• Add-on Mics: Supports up to 4 additional Rally Mic Pods and 2 Rally Mic Pod Hubs for larger conference rooms

RightSense™ Technologies

• RightLight: Renders natural skin tones for each participant

• RightSight: Primary camera frames the active speaker while the AI Viewfinder captures everyone in the room

• RightSound: Distinguishes speech from other sounds to auto-level voices while suppressing background noise and echo

• Grid View: Detects and frames all meeting participants in order to create equitable hybrid meeting experiences. To learn more, visit logitech.com/prosupport/gridview

Interfaces

• HDMI Out: 2 (up to 1080p)

• HDMI In: 1

• USB: 3x Type A, 1x Type C

• Network: 10/100/1G Ethernet

• WiFi: 802.11a/b/g/n/ac

• External Mic Input: Yes (proprietary input supports optional Rally Mic Pod, Rally Mic Pod Hub, and Rally Mic Pod Extension Cable)

• Remote Control: Bluetooth® Low Energy

Power & Cables

• Power supply: Auto-sensing

• Operating Voltage/Power: 100-240V, 19V, 4.74A

• Power Supply Dimensions: 5 in (127 mm) x 2.01 in (51 mm) x 1.18 in (30 mm)

• DC Cable: 5 ft (1.5 m)

• AC Cable: 3.28 ft (1 m)

• HDMI 1.4 Cable: 6.5 ft (2 m)

• USB A to USB C 3.0 Cable: 7.2 ft (2.2 m)

Environmental

• Operating Temperature: 0 to 40°C

• Storage Temperature: -40 to 70 °C

• Humidity: 10 to 95%

• BTU/hr: 57 idle, 64 in meeting

Security

• Full Disk Encryption: AES-128

• Data Encryption: Symmetric Keys, PKI

• Device Identity: Protected by device attestation

• Device Access: Authenticated using API

• Key Protection: Arm TrustZone, RPMP

Accessories

• Mounts: Wall Mount for Video Bars, TV Mount for Video Bars

• Audio: Rally Mic Pod, Rally Mic Pod Hub, Rally Mic Pod Mount, Rally Mic Pod Extension Cable

• Connectivity: Logitech Strong USB Cable [32.81 ft (10 m), 65.6 ft (25 m), 147.64 ft (45 m)]

• Touch Controller: Logitech Tap and Tap IP 3Compatibility may vary, see www.logitech.com/support/tap-compatibility for the latest information

Warranty Information

Standard: 2-year limited hardware warranty included.
Extended: Additional one-year and three-year extended warranties available at the time of hardware purchase. Contact your reseller for availability.

Part Number

• Graphite : 960-001308

• White : 960-001320

• TAA Compliant : 960-001564
